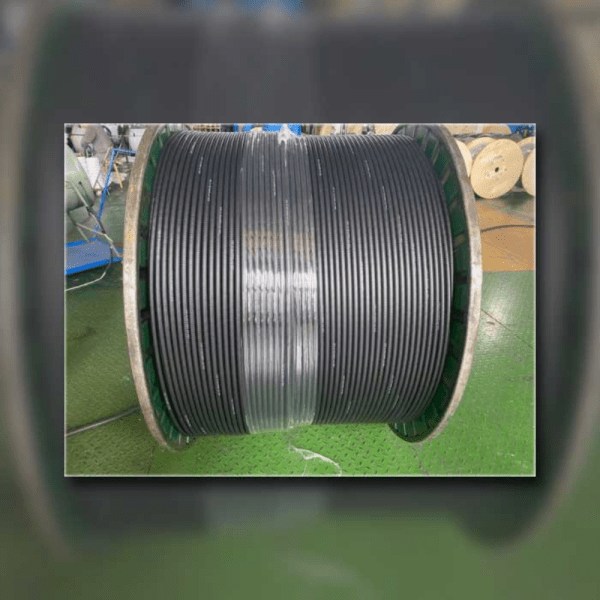

¼” LDF RF Coaxial Feeder Extension Cable for Antenna Amplifiers
NETBOON is leading RF & microwave cable manufacturer and supplier since 1999. Featured low noise, low loss, high power and high temperature resistance ¼” feeder cable. LDF Cable constructed using heavy duty copper clad aluminum conductor, surrounded by dielectric PE foam which is covered with ring corrugated outer cable conductor and PE black jacket. ¼” feeder cable designed to transmit high frequency signals with lower losses compared to other types of cable. Robust material used in manufacturing this feeder cable which is being capable of carrying high current.
ULTRA LOW LOSS- Netboon has wide varieties of low loss cable. This is ¼” coaxial feeder cable has feature of low noise, low loss, high power, high temperature resistance.
SOLID CONSTRUCTION- LDF feeder cable has copper clad aluminum conductor, covered with PE foam, which is surrounded by ring corrugated outer cable conductor and Polyethylene jacket.
APPLICABLE DEVICES-LMR 1/4” inch cable is compatible with RF system that works under 50ohm impedance, wifi repeaters, cell phone boosters, Ham Radios, satellite communication antennas, military HF/UHF/VHF devices, RFID systems, 3G 4G LTE routers modems, ADS-B, surge arrester, security cameras, WLAN, Helium and IOT hotspot antennas, , iPhones, tablets, Verizon jetpacks HNT, also with Tenda, Dlink, Huawei, Tp Link wifi routers, GSM landline, GPS, GLONASS navigation devices and more.
QUALITY SERVICE GUARANTEE- We are using high quality materials to construct our each product and want to make sure that each customer is satisfied with their purchase. If you have more concerns, so contact our customer care number at +91-6266758816 or +91-9303369506
SALES PACKAGE- 1 x ¼” LDF Cable

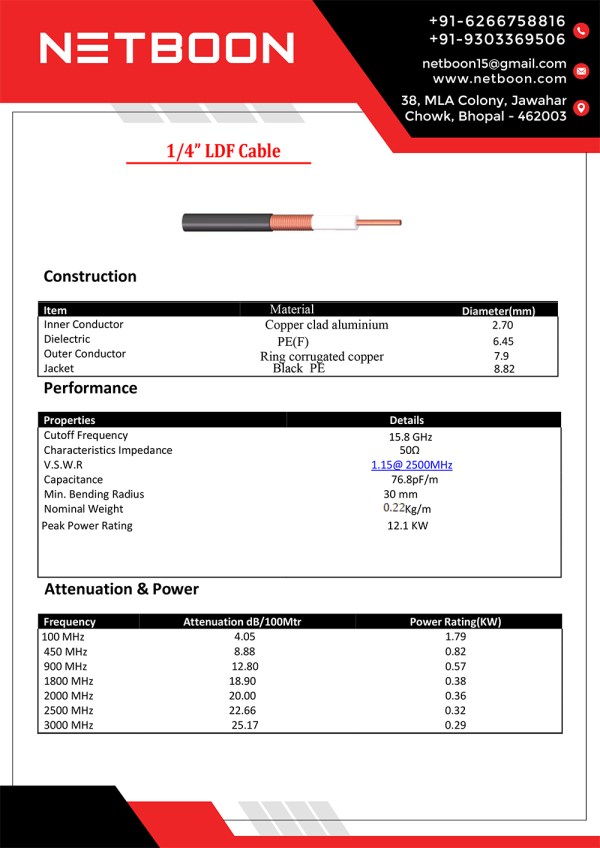

TECHNICAL SPECIFICATIONS-
Jacket Color- Black
Impedance- 50 ohm
Cable- LDF 1/4” inch
Dielectric Material- Foam PE
Jacket Material- PE (Polyethylene)
Lightning Protection – DC Ground
Operational Temperature: -40°~+60°
Environment Friendly- ROHS Compliance
Outer Conductor Material- Ring corrugated copper
Inner Conductor Material- Copper clad aluminum wire
| Jacket Color | Black |
|---|---|
| Impedance | 50 ohm |
| Cable | LDF 1/4” inch |
| Dielectric Material | Foam PE |
| Jacket Material | PE (Polyethylene) |
| Lightning Protection | DC Ground |
| Operational Temperature | -40°~+60° |
| Environment Friendly | ROHS Compliance |
| Outer Conductor Material | Ring corrugated copper |
| Inner Conductor Material | Copper clad aluminum wire |
