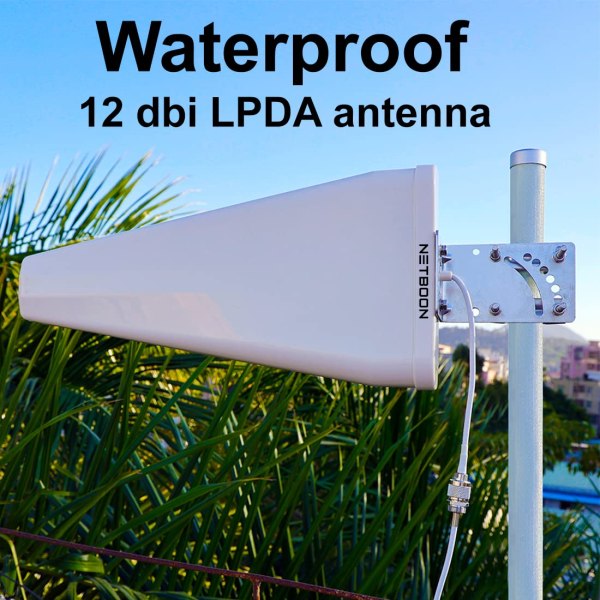

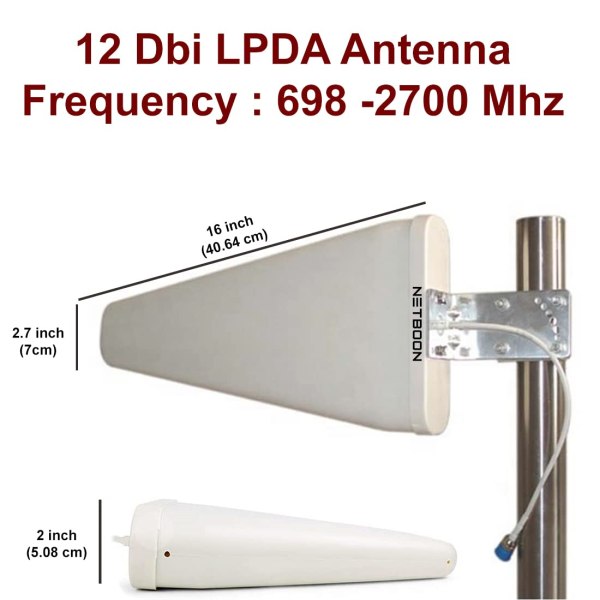

High Gain 12 Dbi LPDA External Outdoor Antenna for 4G Lte Tplink Router Modem With LMR/HLF 200 Cable
2249₹ – 3999₹
High Gain 12 Dbi LPDA External Outdoor Antenna and cable is compatible with most of 4G Lte Tplink Router Modem and beetel landline phone. The premium quality GSM wifi Antenna is composed of ABS polycarbonate plastic material which makes it highly suitable for outdoor installation.
COMPATIBILITY:
This antenna and cable are designed to compatible with 3G/4G/LTE/GSM Broadband Modem, TPLink Archer MR 100, MR 200, MR 400, MR 600, MR 6400, MR 6500 Router, Huawei B310, B311, B312, B512, B315, B525, B535, B593S, E5172, B390, B2000, B1000 Router, HUAWEI 4G Router 3 Pro, 4G680 N300 Wi-Fi 4G LTE Router, Dlink dwr-921 4G LTE router, Dlink DWR-920V Wireless N300 4G LTE Router, Dlink wireless N300 4G lte router, STRIXSYSTEMS LM101 Router, ZTE MF29T 4G TD-LTE CPE Router, Alfa AWUS036NHA Wireless USB Adaptor, Post office RICT Device, Helium hotspot miner, Industrial 4G LTE modem, Trail Camera, Beetal GSM Landline Phone, Lora Gateway, Cellular Embedded Module, Remote SCADA DAQ Module, Remote Relay Gate Opener Switch, Modem Cellular Router, IoT gateway, HNT hotspot miner, Wireless HDMI Extender, Receiver Transmitter, Card Swipe POS machine etc.
WATERPROOF: The high gain LPDA directional outdoor antenna is made of ABS polycarbonate plastic material which makes it a rugged waterproof structure that’s designed to ensure resist stronger rain, wind, cold weather.
HIGH QUALITY: High Quality 4G External Directional antenna receives the digital information from the tower and sends it to the GSM wifi Router with the help of coax cable.
HLF200 COAXIAL CABLE: Low loss LMR/HLF200 coaxial cable which transfers the information very rapidly without any interruptions.
INSTALLATION GUIDE: It is recommended to install the antenna vertically to maximize performance, install it at a higher place to obtain a better signal. This package includes U-bolt bracket for 1.5- to 2- inch pipe or mast (mast or pole is not included). It can easily be set up in an outdoor space including home, office rooftops, utility poles, surveillance trailers and anywhere else you want.
GAURANTEE AND WARRANTY: Don’t worry about any security problems. We are confident in the quality of our product and willing to provide 5 Days money back guarantee, 6 MONTHS Warranty and 100% Satisfaction.
EASY INSTALLATION:
- Mount this Antenna at the top of the roof up to 15-20 feet height pole or higher as possible. Point Antenna towards cell tower.
- After installing the antenna; connect the one end of the cable through the antenna and the other end connects with 4G GSM Wi-Fi Router or another compatible device.
- Then turn on the power of your device.
PACKAGE LIST: 1X12Dbi LPDA Outdoor Antenna + HLF 200 Low Loss Coaxial Cable (You can Select cable Length as per your requirement)
For Technical Support Call at +91-9893014112 or +91-7987032917
| Cable Length In Meter | 08, 10, 12, 15, 18, 20, 25 |
|---|---|
| Frequency Range | 698-2700MHz |
| Output Gain | 12dBi |
| VSWR | ≤2.0 |
| Radiation | Directional |
| Impedance | 50 Ohms |
| Polarization | Vertical |
| Use place | External/Outdoor |
| Operating Temperature | -40℃ to +60℃ |
| Cable Type | LMR/HLF 200 Coaxial Cable |
| Connector | N Male to SMA male (Can Customize as per your need) |
| PLEASE NOTE: | This product is outdoor antenna and cable only, not a mobile signal booster. |
