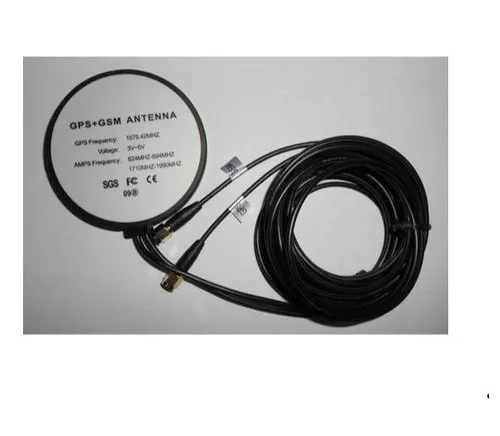

28dBi GPS-GSM Combo WiFi Antenna

28dBi High gain, 100% weatherproof GPS GSM antenna is ideal for the devices that require reliable, small sized, highly durable, mechanically stable and ruggedly constructed antennas. Combine GPS GSM antenna is made up of heavy duty polycarbonate material with a working temperature range of -40°C∼+80°C. WiFi antenna operates under the frequency spectrum range of 1575.42, 824-960, 1710-2170MHz to enhance the signal reception strength of various appliances. GPS GSM antenna features a high performance RG174 SMA Male connector cable with multiple layers of protections which has a characteristic impedance of 50ohms. RG174 cable is ideal for bending stress conditions and eliminates the loose connection problems and provides lightning protection to the device. This is a upgraded new generation omni-directional antenna that provides high signal reception for stable and smooth internet connection. GPS GSM antenna is widely used in telecommunication technology sector all around the globe.

COMPATIBILTY: 28dbi antenna is compatible with WLAN, 2G 3G 4G LTE cellular devices, GPS, GSM antenna, leads, GSM Tenda, Dlink, Huawei wifi routers, modems and all other devices which have a female interface at the connector end.

INSTALLATION: Fix the SMA male connector of 28dBi GPS combo wifi antenna with the female interface of your device. For more details regarding the installation process, please free to contact us at+91-9893014112.

PACKAGE ITEMS: 1 ×28DBI combo GPS GSM antenna with SMA Male connector.

ELECTRICAL PARAMETERS
Gain- 28dBi
VSWR- ≤2
Cable- RG-174
Material- ABS
DC Voltage- 3-5V
Max Power- 100W
Weight- 100grams
Impedance- 50 Ohm
Connector– SMA-Male
Polarization- Omni-Directional
Installation- Ceiling/wall mount
Lightning Protection:- DC GROUND
Frequency range – 1575.42/824-2170MHz
Environment Friendly- RoHS Compliance

WARRANTY: 6months manufacturing warranty. For any queries please reach us at+91-9893014112.
