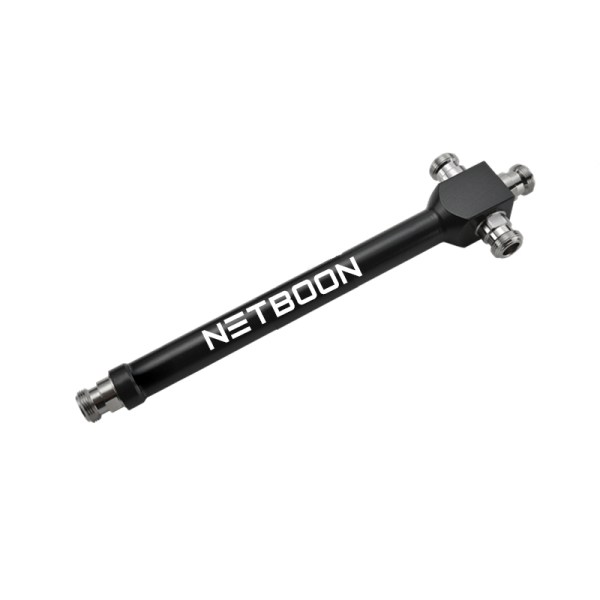

3 Way Splitter Indoor Antenna Signal Distributer for Mobile Signal Booster

COMPATIBILITY:  Wide-Band 3-Way Splitter allows 3 antennas to be used with a single amplifier. This splitter allows signals to be split with minimal signal loss.  Three way splitter network distributor compatible with  3G/4G/LTE bands from 698 MHz to 2700 MHz frequency and all India’s network operators like Idea, Vodaphone, Airtel, Jio etc.

EXTENT INTERNAL COVERAGE: The 3 way coaxial cable splitter signal divider is particularly suitable in conjunction with mobile amplifier systems or signal devices which is furnished with the N Male Type Connector. It can also be used to split the internal antenna signal in amplifier/repeater systems so that three internal antennas can be used to expand internal coverage.

EASY TO INSTALLATION: Our coaxial cable splitter threaded N Female can realize smooth and safe cable connection. This coaxial cable splitter can distribute one network signal (Antenna, etc) to 3 devices.

 Technical Specifications
Frequency Range(MHz) : 698-2700
Insertion Loss (dB): ≤3
Working-band Ripple (dB) :≤0.3
VSWR: ≤1.2
Impedance(Ω): 50
Input Connector: N-Female
Output Connector : 3 N-Female
Operating Temperature: (deg) -30~65
Inner Conductor Material: Spring Bronze
Inner Conductor Plating: Silver Plated
Outer Metel Material: Zinc Alloy
Surface treatment: Black paint
PACKAGE INCLUDED: 1 x 3 Way Splitter
