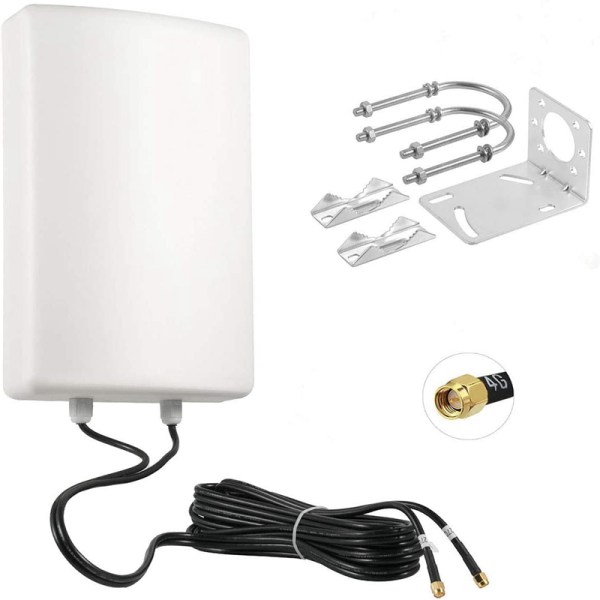

9dBi MIMO Indoor/Outdoor WiFi Patch Panel Antenna
Original price was: 2599₹.1999₹Current price is: 1999₹.
QUALITY & PERFORMANCE: 9dBi high gain MIMO is an ultra-wideband, high performance, omni-directional antenna that covers the modern 3G 4G LTE as well as future 5G operating frequencies with excellent steady gain across all spectrums. Ultra-wide band performance of the antenna allows it to operate from 698 to 2700 MHz, therefore 9 dBi peak gain is achieved. Weather proof antenna is made up of heavy duty ABS plastic material and can be used in all parts of the world and hence, guarantees signal reception strength almost everywhere. Antenna’s design allows for superior control over the entire frequency range, making the MIMO a true high performance omni-directional antenna, suitable for urban as well as remote rural applications. Outdoor antenna achieves this performance through multiple dipoles and also features a unique (patented) feed network technology. External patch antenna also features two N-Female connector at its base.
COMPATIBILITY: 9dBi MIMO patch panel antenna operates with PHS, mobile signal booster, HamRadio, 2G 3G 4G LTE cellular service operators, mobile signal booster, as well as with LPWAN/IOT. CDMA, GPS, GSM landline phones, WCDMA,UMTS, AWS, DCS, DAS and also M2M applications such as LORA, NB-IOT, LTE-M. CCTV cameras, Post office RICT, also with STRIXSYSTEMS LM101,TP link Archer MR200, 400, 600, 6400, Huawei B310, 315, 525, 525S, 593, 880, 890, E5175, E5186, ZTE MF 28G, 28D, 288, 286, 285, 283, 2750,Tenda 4G680 N300, Dlink, routers, modems, traffic monitoring systems and many more devices which have male connector interface.
INSTALLATION: Mount the 9dbi MIMO patch antenna over the pole/wall with the help of pole clamps provided along with the antenna and then screw it properly over there, for any assist, please reach us at+91-9893014112.
PACKAGE ITEMS: 1X9dBi MIMO Patch Panel Antenna, 1Xwall clamp, 2Xnut, 2Xbolts.
ELECTRICAL PROPERTIES:
Gain- 9dBi
VSWR- ≤1.8:1
Cable- RG-58
Voltage- 240V
Velocity- 210Km/h
Weight- 700grams
Cable length- 9inch
Bandwidth- 2.4GHz
Impedance- 50 Ohm
Connector– 2 *N-Female
Antenna Mount – Wall/Pole
Radiation- Omni-Directional
Dimensions: 260 X 170 X 58 mm
Material- ABS+ Aluminium plate
Polarization- Vertically Polarized
Frequency Range- 698-2700MHz
Lightning Protection – DC Ground
Vertical Beamwidth- 65/45Degree
Operational Temperature: -40°~65°
Horizontal Beamwidth- 85/75 Degree
Environment Friendly- ROHS Compliance
WARRANTY: 6 months manufacturing warranty. In fact, for any queries, please contact us at+91-9893014112.
| Gain | 9dBi |
|---|---|
| VSWR | ≤1.8:1 |
| Cable | RG-58 |
| Voltage | 240V |
| Velocity | 210Km/h |
| Weight | 700grams |
| Cable length | 9inch |
| Bandwidth | 2.4GHz |
| Impedance | 50 Ohm |
| Connector | 2 *N-Female |
| Antenna Mount | Wall/Pole |
| Radiation | Omni-Directional |
| Dimensions | 260 X 170 X 58 mm |
| Material | ABS+ Aluminium plate |
| Polarization | Vertically Polarized |
| Frequency Range | 698-2700MHz |
| Vertical Beamwidth | 65/45Degree |
| Environment Friendly | ROHS Compliance |
| Operational Temperature | -40°~75° |
| Key Features | 9dBi high gain MIMO indoor outdoor wide band 698-2700MHz frequency patch panel antenna, high receptivity, long transmissions, vertical polarization, N- female connector cable, omni-directional, 3G 4G LTE cellular devices, mobile signal boosters, WiFi router modem, broadband, GSM landline. |
