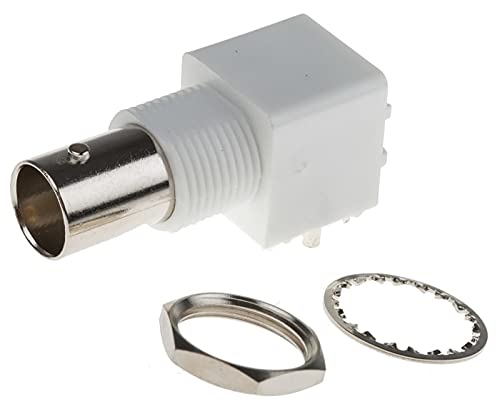

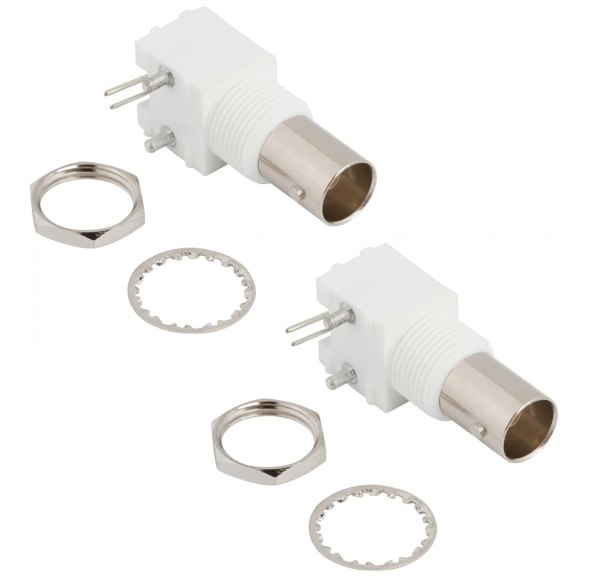

Enhance your CCTV, broadcast, and RF applications with the NETBOON BNC Female Right Angle PCB Panel Mount Bulkhead Jack Connector. Designed for secure and stable RF signal transmission, this high-quality BNC connector ensures low signal loss, high durability, and reliable performance in CCTV systems, video switchers, surveillance cameras, and RF communication devices.
With a right-angle PCB mount design, this bulkhead jack connector is perfect for tight spaces, providing a sturdy and interference-free connection. The nickel-plated brass body offers corrosion resistance, while the gold-plated contacts ensure excellent conductivity.
Ideal for professional video transmission, RF applications, and electronic circuits, the NETBOON BNC Female Right Angle PCB Connector is a must-have for engineers, technicians, and system integrators.
Key Features:
✅ BNC Female Right Angle Connector – Perfect for PCB panel mounting
✅ Bulkhead Jack Design – Secure and easy installation
✅ Reliable RF Signal Transmission – Ensures low signal loss
✅ Nickel-Plated Brass Body – Corrosion-resistant & durable for long-term use
✅ Gold-Plated Contacts – Delivers high conductivity & stable signal performance
✅ Right-Angle Mounting – Ideal for tight spaces & compact device layouts
✅ High Compatibility – Works with CCTV systems, video switchers, RF devices, and test equipment
✅ Versatile Applications – Suitable for security systems, video processing units, and electronic projects
Specifications:
Connector Type: BNC Female Right Angle PCB Panel Mount
Mounting Type: Bulkhead Panel Mount
Body Material: Nickel-plated brass
Contact Material: Gold-plated
Impedance: 50 Ohm / 75 Ohm (depending on system requirements)
Frequency Range: Up to 6GHz
Termination Type: PCB Mount
Durability: High reliability for long-term use
Application: CCTV cameras, switchers, video transmission, RF circuits, security systems
Compatibility:
✔ CCTV Systems – Connects seamlessly with surveillance cameras & security systems
✔ Video Switchers & Processing Units – Supports high-quality video transmission
✔ RF Communication Devices – Ideal for radio frequency signal applications
✔ Broadcast & Audio-Visual Systems – Ensures reliable signal flow in professional setups
✔ Testing & Measurement Equipment – Works with oscilloscopes, analyzers, and lab instruments
