The NETBOON HLF200 RF Coaxial Cable with BNC Male to SMA Male Right Angle Connector is crafted for high-performance RF transmission where reliability, flexibility, and precision matter most. Designed with premium-grade HLF200 coaxial structure, it ensures low signal loss, accurate impedance (50 Ohm), and strong shielding protection—making it an ideal choice for RF testing setups, communication systems, and antenna connections.

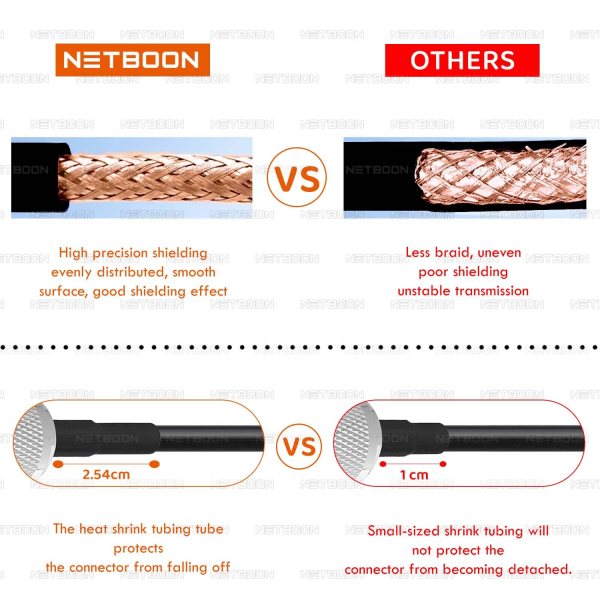

Featuring a BNC Male connector on one end and a Right-Angle SMA Male connector on the other, this cable provides secure, space-efficient connectivity—perfect for rack-mounted or tight installations. The dual shielding layer (braided copper + aluminum foil) guarantees maximum resistance against EMI/RFI interference, maintaining clear and stable signals up to 6 GHz.
Constructed with a durable PVC jacket and CCA conductor, the cable withstands mechanical stress and frequent use. Whether for lab instruments, radio devices, analyzers, or RF circuits, this NETBOON cable delivers professional-grade signal integrity and longevity.
🟢 Key Features:
Connector Type: BNC Male to SMA Male Right Angle
Impedance: 50 Ohm – Ideal for RF and communication setups
Frequency Range: DC to 6 GHz
Low Attenuation: Maintains efficient and clean signal flow
Right Angle Design: Perfect for compact and confined installations
Dual Shielding: Reduces interference and external signal distortion

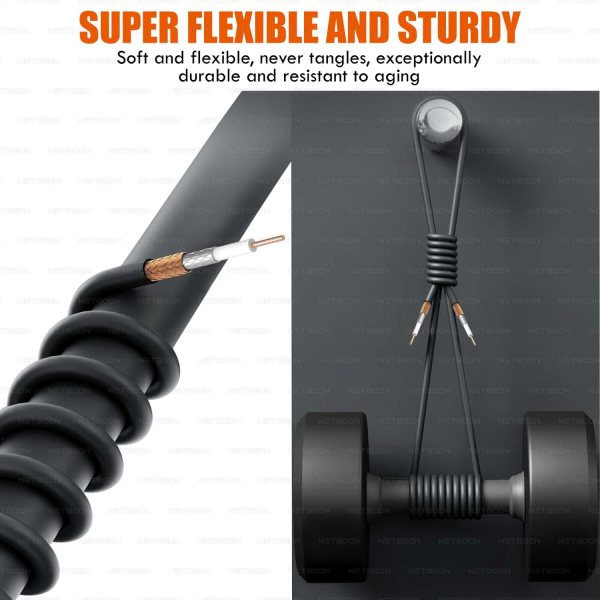

High Durability: Resistant PVC jacket with excellent flexibility
Applications: RF test benches, antennas, analyzers, radio equipment, and networking systems
🟢 Technical & Mechanical Specifications:
Specification
Details
Product Name
NETBOON HLF200 RF Coaxial Cable
Connector Type
BNC Male to SMA Male Right Angle
Impedance
50 Ohm
Frequency Range
DC – 6 GHz
Conductor Material
Copper-Clad Aluminum (CCA)
Shielding Type
Aluminum Foil + Braided Copper
Jacket Material
High-Quality PVC
VSWR
≤ 1.3:1
Return Loss
≥ 20 dB
Temperature Range
–40°C to +85°C
Cable Color
Black
Available Lengths
Customizable
Use Case
RF Testing, Communication, Antenna, and Network Devices
🟢 Extended Compatibility:
Compatible with oscilloscopes, spectrum analyzers, RF signal generators, transceivers, modems, base stations, and wireless antennas requiring a BNC to SMA interface. The right-angle connector ensures easy access and neat routing in tight equipment panels or rack enclosures.
🟢 Warranty Information:
All NETBOON cables are 100% tested for signal accuracy, shielding quality, and mechanical endurance. 🛠️ 6 Months Warranty – Quality Assured by NETBOON Engineered for long-lasting reliability, ensuring superior signal integrity and low-loss performance in every connection.
🟢 Bulk & OEM Inquiry:
For custom lengths, OEM labeling, or bulk RF project requirements, contact: 📞 +91-6266758816 / +91-9303369506 📧 netboon15@gmail.com NETBOON provides customized RF solutions, industrial-grade cable assemblies, and project-based manufacturing for professional applications.
