Price range: ₹399 through ₹3099

Additional Offers
  • Flat 5% Off on Prepaid Order

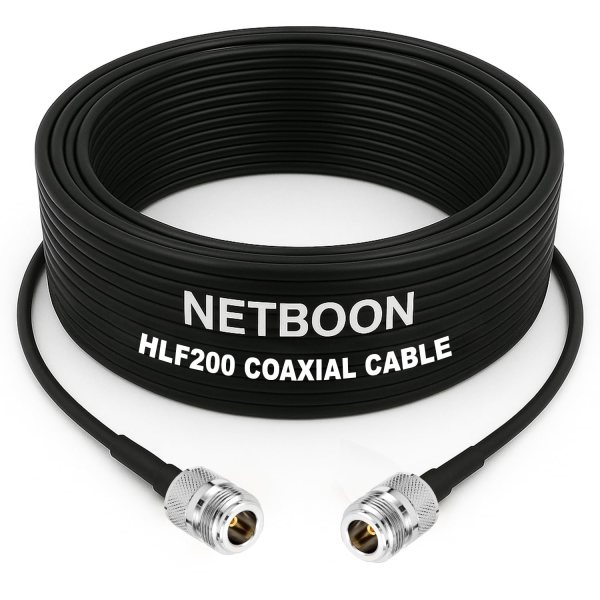

The NETBOON HLF200 RF Coaxial Cable with N Female to N Female Connector is designed for high-performance RF transmission, offering superior signal stability and low attenuation in demanding communication environments. Crafted with precision-engineered N-type connectors, it ensures tight, secure, and weather-resistant coupling, ideal for industrial RF systems, antenna setups, and test lab instrumentation.

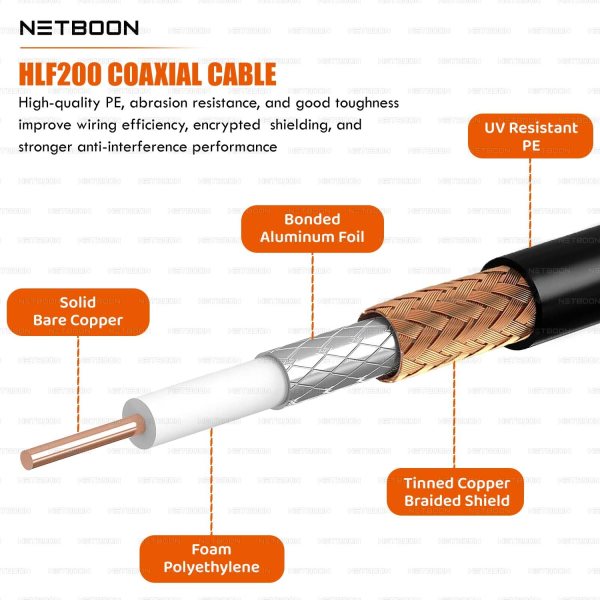

Built using HLF200 low-loss coaxial cable, this assembly delivers consistent impedance (50Ω) and exceptional shielding against EMI and RFI disturbances. The dual-layer shielding—aluminum foil and braided copper—maintains high signal purity, while the N Female connectors provide a solid mechanical connection and excellent power-handling capability.

Whether used for base stations, RF analyzers, or antenna extensions, this cable performs reliably across a wide frequency spectrum up to 6 GHz. The durable UV-resistant PVC jacket enhances flexibility and environmental protection, making it suitable for both indoor and outdoor applications.

🟢 Key Features:

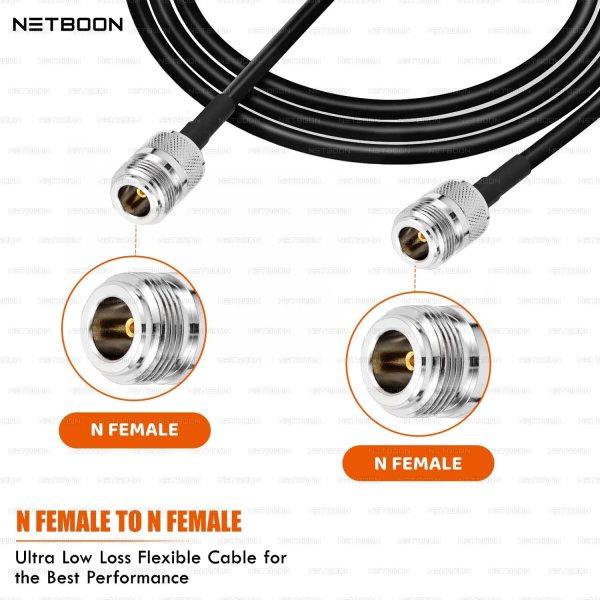

  • Connector Type: N Female to N Female – strong, threaded, and weather-secure.

  • Low Attenuation Cable: HLF200 construction minimizes signal loss.

  • Precision Impedance Control: Stable 50 Ohm design for accurate RF performance.

  • Enhanced Shielding: Foil and braided layers reduce noise and interference.

  • Frequency Range: Supports DC to 6 GHz for professional and lab-grade use.

  • Durable Jacket: UV-resistant PVC provides flexibility and long life.

  • High Power Handling: Ideal for antennas, transmitters, and testing equipment.

🟢 Technical Specifications:

Specification Details
Product Model NETBOON HLF200 RF Coaxial Cable
Connector Type N Female to N Female
Impedance 50 Ohm
Frequency Range DC – 6 GHz
Cable Type HLF200 Low Loss Coax
Conductor Material Copper-Clad Aluminum (CCA)
Shielding Aluminum Foil + Braided Copper
VSWR ≤ 1.3:1 Typical
Jacket Material UV-Resistant PVC
Color Black
Temperature Range –40°C to +85°C
Available Lengths Custom Lengths on Request
Application Antenna Systems, RF Testing, Network Extenders, Telecom Links

🟢 Applications:

  • RF and Microwave Transmission Systems

  • Antenna Extension and Interconnects

  • Wireless Network Equipment

  • Base Station and Signal Repeaters

  • Instrumentation and RF Analysis Labs

  • Industrial Communication Systems

🟢 Warranty Information:

NETBOON Quality Guarantee – 6 Months Warranty
Every NETBOON HLF200 RF Coaxial Cable is individually tested for continuity, impedance, and shielding integrity to ensure reliable signal transfer. Supported by a 6-month performance warranty, it stands as a durable and trustworthy solution for professional RF requirements.

🟢 Bulk & OEM Orders:

For custom assemblies, private labeling, or large-scale orders, reach us at:
📞 +91-6266758816 / +91-9303369506
📧 netboon15@gmail.com
We provide custom RF coaxial cable assemblies for telecom, broadcast, and industrial sectors with OEM and B2B support.

Cable Length In Meter

1, 5, 10, 15, 20, 25, 30
