Name: HLF240 Compact Low-Loss RF Cable | TNC Female to TNC Male Right-Angle Connector | 6GHz Coax for SDR, IoT &amp; Industrial Systems
SKU: NB-NEW-HLF240-TNCF-TO-TNCMRA
Availability: InStock

HLF240 Compact Low-Loss RF Cable | TNC Female to TNC Male Right-Angle Connector | 6GHz Coax for SDR, IoT & Industrial Systems

Additional Offers

Flat 5% Off on Prepaid Order

Cable Length In Meter

Clear

The NETBOON HLF240 Low Loss Coaxial Cable with TNC Female to TNC Male Right Angle Connector is designed for high-frequency RF systems that require reliable, low-attenuation signal transmission in confined spaces. Supporting frequencies up to 6 GHz, this cable delivers consistent 50-ohm impedance, excellent shielding, and robust performance for SDR modules, IoT gateways, antennas, telemetry systems, industrial wireless equipment, and RF test setups.

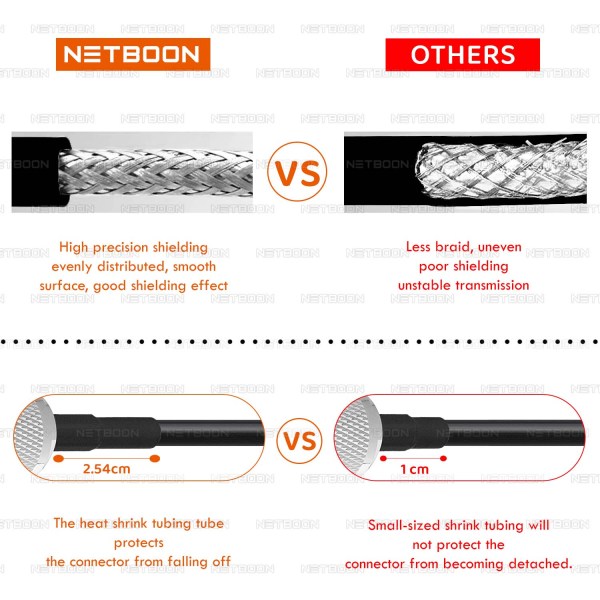

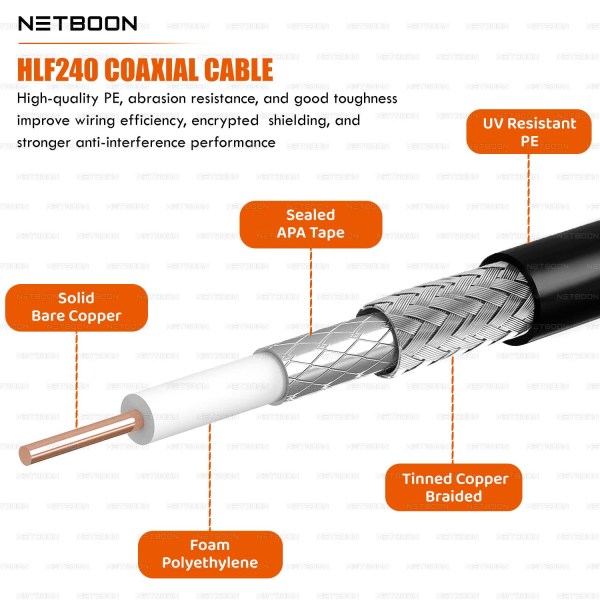

Constructed with a Solid Bare Copper center conductor and Foamed Polyethylene dielectric, the cable ensures efficient signal flow with minimal insertion loss. The Sealed APA Tape inner shield and 95% tinned copper braided outer shield provide superior EMI and RFI protection. The durable Black PE jacket adds flexibility, mechanical strength, and environmental resistance for long-term use.

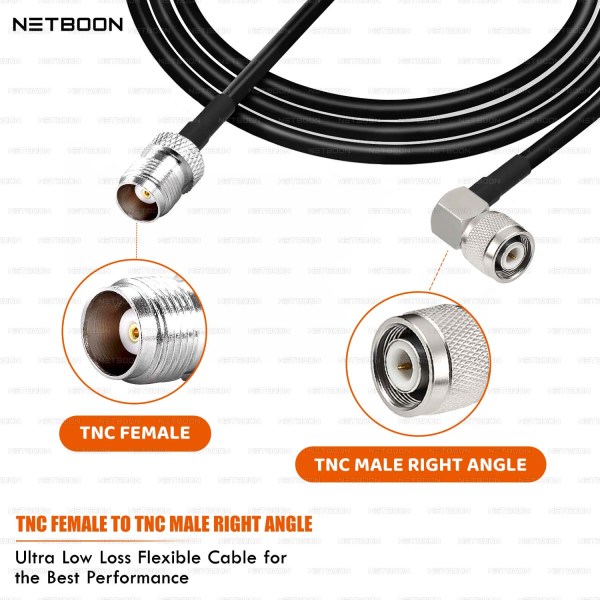

The TNC Female to TNC Male Right-Angle connector configuration enables secure, space-saving connections in panels, enclosures, and racks. This assembly guarantees dependable low-loss performance for RF modules, antennas, telemetry units, and industrial wireless devices requiring right-angle connectivity.

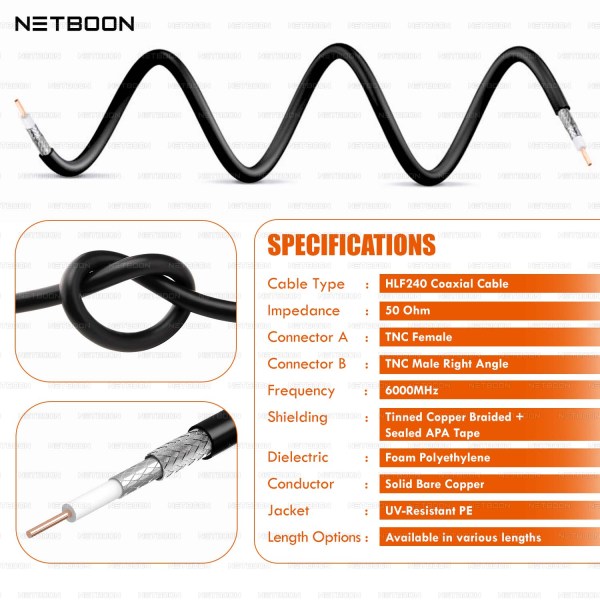

✅ Technical & Mechanical Specifications (Spreadsheet Format)

Specification	Details
Cable Type	HLF240 Low Loss Coaxial Cable
Connector A	TNC Female
Connector B	TNC Male Right Angle
Impedance	50 Ohm
Center Conductor	Solid Bare Copper
Dielectric	Foamed Polyethylene
Inner Shield	Sealed APA Tape
Outer Shield	36AWG, 95% Tinned Copper Braid
Jacket	Black PE
Frequency Range	Up to 6 GHz
VSWR	≤ 1.35:1 (Typical)
Shielding Effectiveness	High EMI / RFI Protection
Operating Temperature	–40 °C to +85 °C
Cable Flexibility	Medium
Connection Type	Threaded RF Interface, Right-Angle
Typical Applications	SDR, IoT, antennas, RF testing, industrial wireless

✅ Compatibility

Compatible with TNC-based RF devices including SDR platforms, IoT gateways, antennas, telemetry systems, industrial wireless equipment, and RF test instruments requiring secure right-angle connections.

✅ Bulk & OEM Inquiry

Need custom lengths or bulk orders?
📞 Call/WhatsApp: +91-6266758816 / +91-9303369506
📧 Email: netboon15@gmail.com

NETBOON provides OEM manufacturing, custom RF cable assemblies, and bulk supply for telecom, IoT, SDR, industrial, and wireless RF applications.

✅ Warranty Information

6 Months Warranty – Quality Assured by NETBOON
Each cable assembly is tested for shielding performance, connector durability, impedance stability, and electrical continuity. Supplied with a 6-month replacement warranty.
