Name: HLF240 Premium RF Cable | N Female to SMA Male Right-Angle Connector | 6GHz Low-Loss Coax for SDR, IoT &amp; Industrial Wireless Systems
SKU: NB-NEW-HLF240-NF-TO-SMAMRA
Availability: InStock

HLF240 Premium RF Cable | N Female to SMA Male Right-Angle Connector | 6GHz Low-Loss Coax for SDR, IoT & Industrial Wireless Systems

Additional Offers

Flat 5% Off on Prepaid Order

Cable Length In Meter

Clear

The NETBOON HLF240 Low Loss Coaxial Cable with N Female to SMA Male Right Angle Connector is designed for high-frequency RF applications that require compact, reliable connections with minimal signal loss. Supporting frequencies up to 6 GHz, this cable maintains consistent 50-ohm impedance, excellent shielding, and high-performance signal transmission for SDR modules, IoT gateways, antennas, telemetry units, industrial wireless devices, and RF test setups.

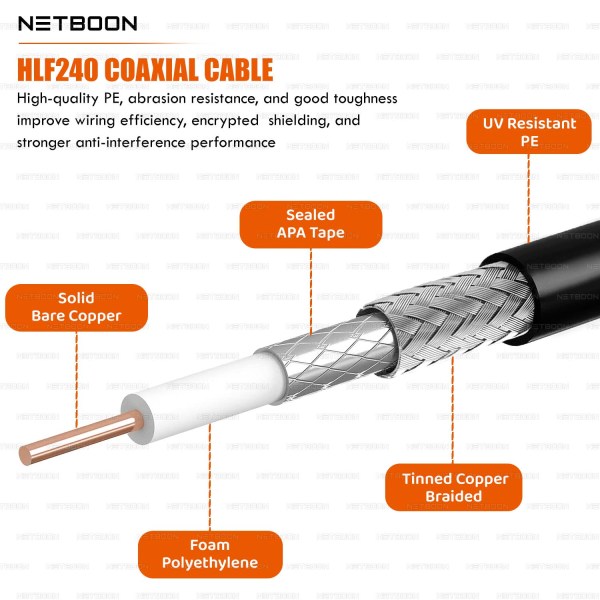

It features a Solid Bare Copper center conductor and a Foamed Polyethylene dielectric for efficient signal propagation. The Sealed APA Tape inner shield and 95% tinned copper braided outer shield provide strong EMI and RFI suppression, while the Black PE jacket offers flexibility, mechanical durability, and long-term environmental protection.

The N Female to SMA Male Right-Angle connector configuration ensures secure and space-saving connections in panels, enclosures, and racks. This assembly delivers reliable low-loss performance for SDR modules, telemetry systems, antennas, industrial wireless devices, and other RF applications requiring right-angle connectivity.

✅ Technical & Mechanical Specifications (Spreadsheet Format)

Specification	Details
Cable Type	HLF240 Low Loss Coaxial Cable
Connector A	N Female
Connector B	SMA Male Right Angle
Impedance	50 Ohm
Center Conductor	Solid Bare Copper
Dielectric	Foamed Polyethylene
Inner Shield	Sealed APA Tape
Outer Shield	36AWG, 95% Tinned Copper Braid
Jacket	Black PE
Frequency Range	Up to 6 GHz
VSWR	≤ 1.35:1 (Typical)
Shielding Effectiveness	High EMI / RFI Protection
Operating Temperature	–40 °C to +85 °C
Cable Flexibility	Medium
Connection Type	Right-Angle RF Interface
Typical Applications	SDR, IoT, antennas, RF testing, industrial wireless

✅ Compatibility

Compatible with N- and SMA-based RF devices including SDR platforms, IoT gateways, antennas, telemetry systems, industrial wireless devices, and RF test instruments requiring reliable right-angle low-loss connections.

✅ Bulk & OEM Inquiry

Need custom lengths or bulk orders?
📞 Call/WhatsApp: +91-6266758816 / +91-9303369506
📧 Email: netboon15@gmail.com

NETBOON offers OEM manufacturing, custom RF cable assemblies, and bulk supply for telecom, IoT, SDR, industrial, and wireless RF applications.

✅ Warranty Information

6 Months Warranty – Quality Assured by NETBOON
Each assembly is individually tested for shielding integrity, connector durability, impedance stability, and electrical continuity. Supplied with a 6-month replacement warranty.
