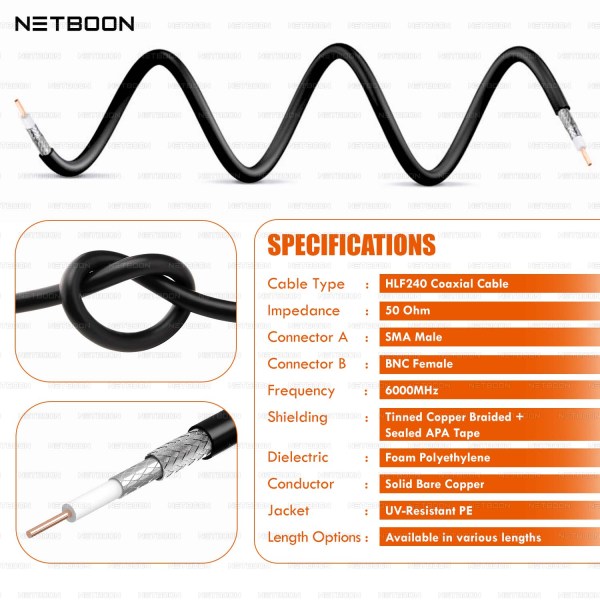

Name: HLF240 Low-Attenuation RF Cable | SMA Male to BNC Female Connector | 6GHz Coax for SDR, IoT, Antenna &amp; Measurement Systems
SKU: NB-NEW-HLF240-SMAM-TO-BNCF
Availability: InStock

HLF240 Low-Attenuation RF Cable | SMA Male to BNC Female Connector | 6GHz Coax for SDR, IoT, Antenna & Measurement Systems

Additional Offers

Flat 5% Off on Prepaid Order

Cable Length In Meter

Clear

The NETBOON HLF240 Low Loss Coaxial Cable with SMA Male to BNC Female Connector is designed for professional RF applications that require accurate signal transfer, mechanical reliability, and strong interference protection. Supporting operation up to 6 GHz, this cable maintains stable 50-ohm impedance and low attenuation, making it suitable for SDR platforms, IoT gateways, antennas, telemetry systems, RF measurement equipment, and industrial wireless installations.

Built with a Solid Bare Copper center conductor and Foamed Polyethylene dielectric, the cable ensures efficient signal propagation with reduced loss. The Sealed APA Tape inner shield combined with a 95% tinned copper braided outer shield delivers excellent EMI and RFI shielding. A durable Black PE jacket provides flexibility, abrasion resistance, and long-term environmental durability.

The SMA Male to BNC Female connector configuration enables easy integration between compact RF modules and test or antenna equipment. This assembly is ideal for applications where dependable low-loss connectivity and consistent RF performance are essential.

✅ Technical & Mechanical Specifications (Spreadsheet Format)

Specification	Details
Cable Type	HLF240 Low Loss Coaxial Cable
Connector A	SMA Male
Connector B	BNC Female
Impedance	50 Ohm
Center Conductor	Solid Bare Copper
Dielectric	Foamed Polyethylene
Inner Shield	Sealed APA Tape
Outer Shield	36AWG, 95% Tinned Copper Braid
Jacket	Black PE
Frequency Range	Up to 6 GHz
VSWR	≤ 1.35:1 (Typical)
Shielding Effectiveness	High EMI / RFI Protection
Operating Temperature	–40 °C to +85 °C
Cable Flexibility	Medium
Connection Type	Straight RF Interface
Typical Applications	SDR, IoT, antennas, RF testing, industrial wireless

✅ Compatibility

Compatible with SMA- and BNC-based RF devices including SDR modules, IoT gateways, antennas, telemetry equipment, RF test instruments, and industrial wireless systems requiring low-loss coaxial connectivity.

✅ Bulk & OEM Inquiry

Need custom lengths or bulk orders?
📞 Call/WhatsApp: +91-6266758816 / +91-9303369506
📧 Email: netboon15@gmail.com

NETBOON offers OEM manufacturing, custom RF cable assemblies, and bulk supply for telecom, IoT, SDR, industrial, and wireless RF applications.

✅ Warranty Information

6 Months Warranty – Quality Assured by NETBOON
Each cable assembly is tested for shielding performance, connector durability, impedance stability, and electrical continuity. Supplied with a 6-month replacement warranty.
