Name: HLF240 Precision RF Patch Cable | SMA Male to BNC Male Right-Angle Connector | 6GHz Low-Loss Coax for SDR &amp; Industrial Wireless
SKU: NB-NEW-HLF240-SMAM-TO-BNCMRA
Availability: InStock

HLF240 Precision RF Patch Cable | SMA Male to BNC Male Right-Angle Connector | 6GHz Low-Loss Coax for SDR & Industrial Wireless

Additional Offers

Flat 5% Off on Prepaid Order

Cable Length In Meter

Clear

The NETBOON HLF240 Low Loss Coaxial Cable with SMA Male to BNC Male Right Angle Connector is designed for professional RF environments where compact installation, low signal attenuation, and consistent impedance are critical. Rated for operation up to 6 GHz, this cable ensures stable 50-ohm performance for SDR systems, IoT gateways, antennas, telemetry units, RF measurement equipment, and industrial wireless networks.

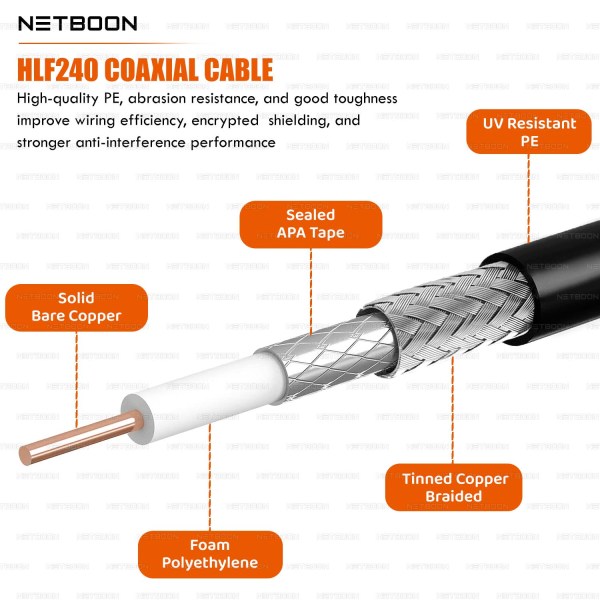

Manufactured using a Solid Bare Copper center conductor and Foamed Polyethylene dielectric, the cable delivers efficient signal transmission with reduced insertion loss. Advanced EMI and RFI protection is provided by a Sealed APA Tape inner shield and a 95% tinned copper braided outer shield. The rugged Black PE jacket enhances flexibility, mechanical strength, and long-term durability.

The SMA Male to BNC Male Right-Angle connector configuration allows secure, space-saving connections inside enclosures, racks, and compact RF assemblies. This cable assembly is ideal for precision RF applications requiring dependable low-loss performance with right-angle connectivity.

✅ Technical & Mechanical Specifications (Spreadsheet Format)

Specification	Details
Cable Type	HLF240 Low Loss Coaxial Cable
Connector A	SMA Male
Connector B	BNC Male Right Angle
Impedance	50 Ohm
Center Conductor	Solid Bare Copper
Dielectric	Foamed Polyethylene
Inner Shield	Sealed APA Tape
Outer Shield	36AWG, 95% Tinned Copper Braid
Jacket	Black PE
Frequency Range	Up to 6 GHz
VSWR	≤ 1.35:1 (Typical)
Shielding Effectiveness	High EMI / RFI Protection
Operating Temperature	–40 °C to +85 °C
Cable Flexibility	Medium
Connection Type	Right-Angle RF Interface
Typical Applications	SDR, IoT, antennas, RF testing, industrial wireless

✅ Compatibility

Compatible with SMA- and BNC-based RF devices including SDR platforms, IoT gateways, antennas, telemetry equipment, RF test instruments, and industrial wireless systems requiring compact right-angle coaxial connectivity.

✅ Bulk & OEM Inquiry

Need custom lengths or bulk orders?
📞 Call/WhatsApp: +91-6266758816 / +91-9303369506
📧 Email: netboon15@gmail.com

NETBOON offers OEM manufacturing, custom RF cable assemblies, and bulk supply for telecom, IoT, SDR, industrial, and wireless RF applications.

✅ Warranty Information

6 Months Warranty – Quality Assured by NETBOON
Each cable assembly is individually tested for shielding performance, connector durability, impedance stability, and electrical continuity. Supplied with a 6-month replacement warranty.
