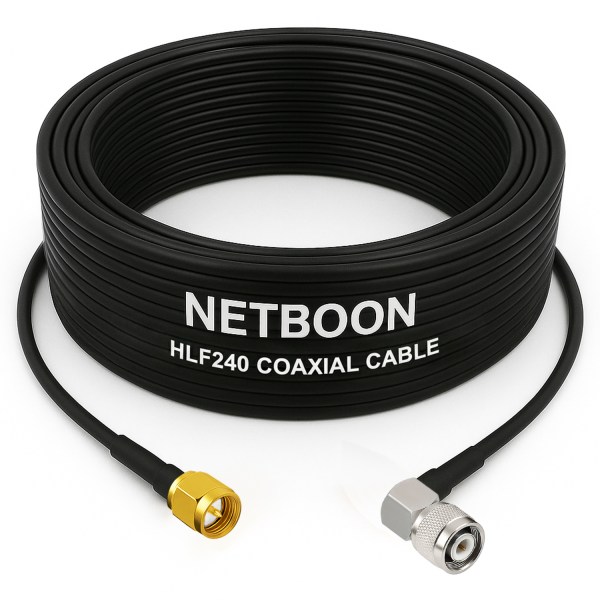

Name: HLF240 Compact RF Cable | SMA Male to TNC Male Right-Angle Connector | 6GHz Low-Loss Coax for SDR &amp; Industrial Wireless
SKU: NB-NEW-HLF240-SMAM-TO-TNCMRA
Availability: InStock

HLF240 Compact RF Cable | SMA Male to TNC Male Right-Angle Connector | 6GHz Low-Loss Coax for SDR & Industrial Wireless

Additional Offers

Flat 5% Off on Prepaid Order

Cable Length In Meter

Clear

The NETBOON HLF240 Low Loss Coaxial Cable with SMA Male to TNC Male Right Angle Connector is engineered for high-frequency RF applications where compact routing, low attenuation, and stable impedance are essential. Designed to support operation up to 6 GHz, this cable ensures consistent 50-ohm performance across SDR platforms, IoT gateways, antennas, telemetry systems, RF test instruments, and industrial wireless equipment.

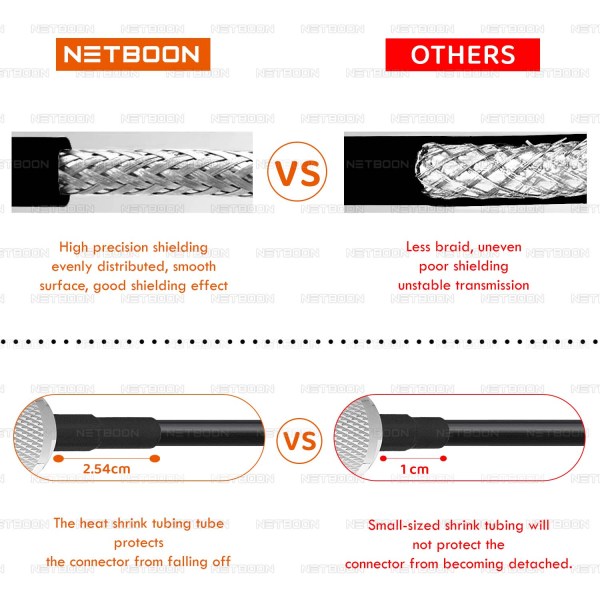

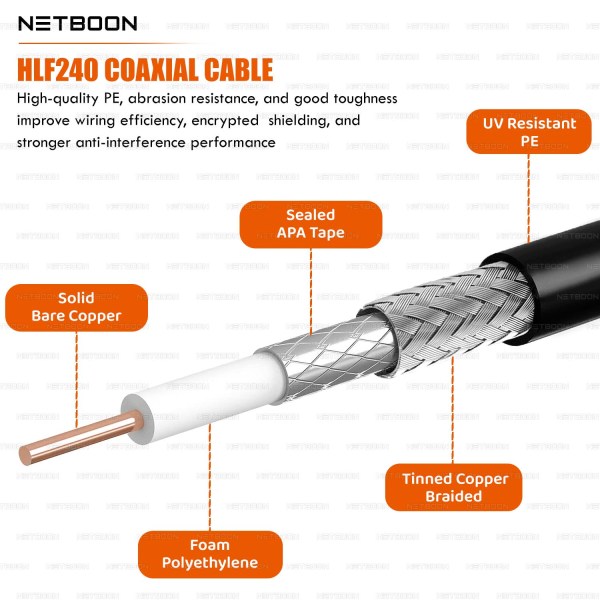

The cable construction features a Solid Bare Copper center conductor paired with a Foamed Polyethylene dielectric, enabling efficient signal propagation with minimal loss. Enhanced shielding is achieved using a Sealed APA Tape inner shield along with a 95% tinned copper braided outer shield, delivering excellent EMI and RFI suppression. The rugged Black PE jacket provides mechanical strength, flexibility, and long-term durability in demanding RF environments.

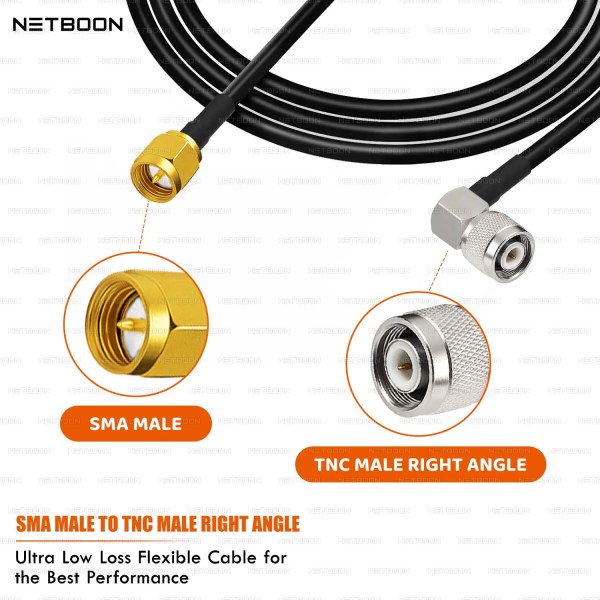

The SMA Male to TNC Male Right-Angle connector configuration allows secure, space-saving installation in compact enclosures, racks, and panel-mounted systems. This assembly is ideal for professional RF applications requiring dependable low-loss performance with right-angle connectivity.

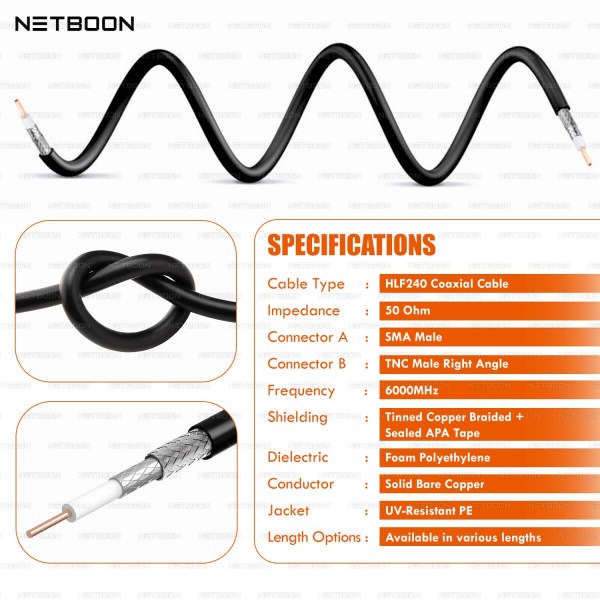

✅ Technical & Mechanical Specifications (Spreadsheet Format)

Specification	Details
Cable Type	HLF240 Low Loss Coaxial Cable
Connector A	SMA Male
Connector B	TNC Male Right Angle
Impedance	50 Ohm
Center Conductor	Solid Bare Copper
Dielectric	Foamed Polyethylene
Inner Shield	Sealed APA Tape
Outer Shield	36AWG, 95% Tinned Copper Braid
Jacket	Black PE
Frequency Range	Up to 6 GHz
VSWR	≤ 1.35:1 (Typical)
Shielding Effectiveness	High EMI / RFI Protection
Operating Temperature	–40 °C to +85 °C
Cable Flexibility	Medium
Connection Type	Right-Angle RF Interface
Typical Applications	SDR, IoT, antennas, RF testing, industrial wireless

✅ Compatibility

Compatible with SMA- and TNC-based RF devices including SDR modules, IoT gateways, antennas, telemetry units, industrial wireless systems, and RF test equipment requiring compact right-angle connectivity.

✅ Bulk & OEM Inquiry

Need custom lengths or bulk orders?
📞 Call/WhatsApp: +91-6266758816 / +91-9303369506
📧 Email: netboon15@gmail.com

NETBOON offers OEM manufacturing, custom RF cable assemblies, and bulk supply for telecom, IoT, SDR, industrial, and wireless RF applications.

✅ Warranty Information

6 Months Warranty – Quality Assured by NETBOON
Each cable assembly is tested for shielding performance, connector durability, impedance stability, and electrical continuity. Supplied with a 6-month replacement warranty.
