Price range: ₹499 through ₹2599

Additional Offers
  • Flat 5% Off on Prepaid Order

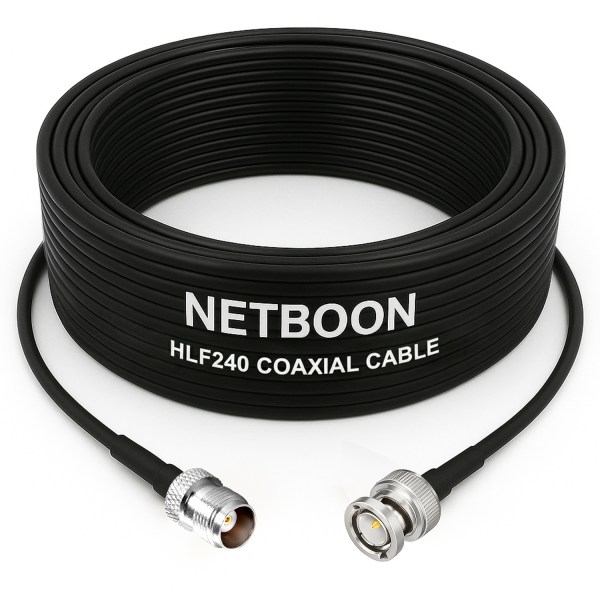

The NETBOON HLF240 Low Loss Coaxial Cable with TNC Female to BNC Male Connector is designed to deliver stable, low-attenuation RF signal transmission for professional and industrial wireless applications. Supporting frequencies up to 6 GHz, this cable assembly ensures reliable performance, excellent shielding, and consistent 50-ohm impedance across high-frequency environments.

Constructed with a Solid Bare Copper center conductor, the cable provides efficient signal flow, while the Foamed Polyethylene dielectric minimizes dielectric loss. Enhanced EMI and RFI protection is achieved through a Sealed APA Tape inner shield combined with a 95% tinned copper braided outer shield. The durable Black PE jacket offers flexibility, abrasion resistance, and long service life in both indoor and controlled outdoor installations.

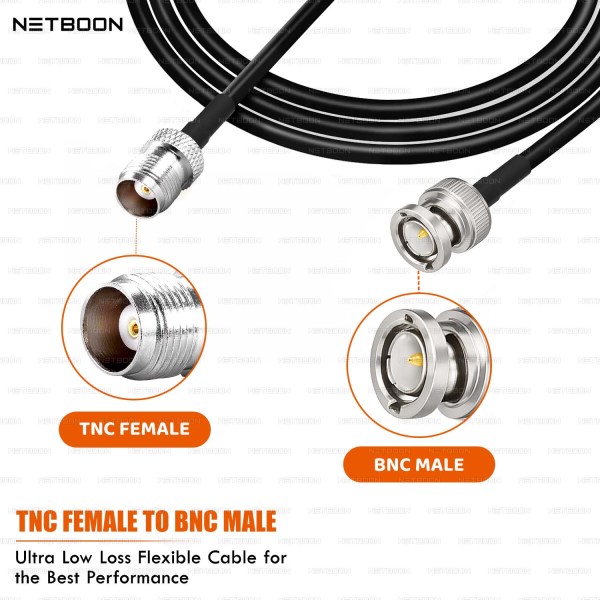

The TNC Female to BNC Male connector configuration enables secure transitions between threaded and bayonet-style RF interfaces. This makes the cable ideal for RF modules, antennas, SDR platforms, telemetry units, RF test equipment, and industrial wireless systems requiring dependable low-loss connectivity.

✅ Technical & Mechanical Specifications (Spreadsheet Format)

Specification Details
Cable Type HLF240 Low Loss Coaxial Cable
Connector A TNC Female
Connector B BNC Male
Impedance 50 Ohm
Center Conductor Solid Bare Copper
Dielectric Foamed Polyethylene
Inner Shield Sealed APA Tape
Outer Shield 36AWG, 95% Tinned Copper Braid
Jacket Black PE
Frequency Range Up to 6 GHz
VSWR ≤ 1.35:1 (Typical)
Shielding Effectiveness High EMI / RFI Protection
Operating Temperature –40 °C to +85 °C
Cable Flexibility Medium
Connection Type Threaded to Bayonet RF Interface
Typical Applications SDR, IoT, antennas, RF testing, industrial wireless

✅ Compatibility

Compatible with TNC- and BNC-based RF devices including SDR systems, IoT gateways, antennas, telemetry equipment, RF test instruments, and industrial wireless communication setups.

✅ Bulk & OEM Inquiry

Need custom lengths or bulk orders?
📞 Call/WhatsApp: +91-6266758816 / +91-9303369506
📧 Email: netboon15@gmail.com

NETBOON provides OEM manufacturing, custom RF cable assemblies, and bulk supply for telecom, IoT, SDR, industrial, and wireless RF applications.

✅ Warranty Information

6 Months Warranty – Quality Assured by NETBOON
Every cable assembly is tested for shielding performance, connector durability, impedance stability, and electrical continuity. Backed by a 6-month replacement warranty.

Cable Length In Meter

1, 5, 10, 15, 20, 25
