HLF240 Low Loss RF Coax Cable with N Male Right-Angle to TNC Male Right-Angle Connector | 6GHz Durable RF Jumper for Industrial Use

Price range: ₹499 through ₹2599

Additional Offers
  • Flat 5% Off on Prepaid Order

The NETBOON HLF240 Low Loss Coaxial Cable with N Male Right Angle to TNC Male Right Angle Connector is engineered for high-reliability RF installations where low attenuation, mechanical strength, and compact routing are essential. Built using premium HLF240 low-loss coaxial cable, this assembly delivers stable 50-ohm impedance and consistent RF performance for SDR platforms, telemetry systems, antennas, and industrial wireless equipment.

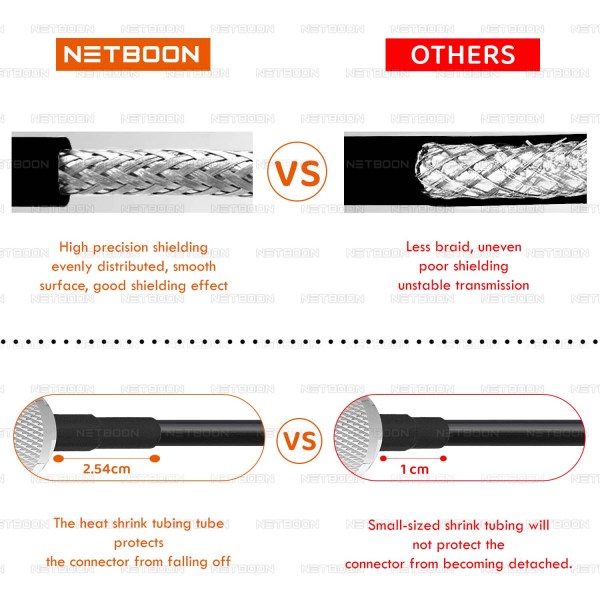

The cable construction includes a Solid Bare Copper center conductor, Foamed Polyethylene dielectric, Sealed APA Tape inner shield, and a 95% Tinned Copper Braid outer shield, providing excellent EMI suppression, signal stability, and long service life. The N Male Right-Angle connector ensures strong threaded locking for industrial and outdoor RF equipment, while the TNC Male Right-Angle connector offers vibration-resistant connectivity and space-saving installation in dense RF layouts.

Supporting a frequency range up to 6 GHz, each cable assembly is individually tested for impedance stability, shielding effectiveness, electrical continuity, and connector durability—making it ideal for laboratory, field, and industrial RF environments.

✅ Technical & Mechanical Specifications (Spreadsheet Format):

Parameter Specification
Cable Type HLF240 Low Loss Coaxial Cable
Connector A N Male Right Angle
Connector B TNC Male Right Angle
Impedance 50 Ohm
Frequency Range Up to 6 GHz
Center Conductor Solid Bare Copper
Dielectric Foamed Polyethylene
Inner Shield Sealed APA Tape
Outer Shield 36 AWG, 95% Tinned Copper Braid
Jacket Black PE
Shielding Level High – Dual Shield
VSWR ≤ 1.30 Typical
Flexibility Medium – Suitable for compact RF installations
Operating Temperature −40 °C to +85 °C
Applications SDR, antennas, telemetry, RF testing, industrial wireless systems

✅ Compatibility:

Compatible with N-type and TNC-based RF modules, SDR devices, antennas, telemetry units, and industrial wireless equipment requiring low-loss right-angle RF connectivity.

✅ Warranty Information:

6 Months Warranty – Quality Assured by NETBOON
Each cable assembly is tested for shielding performance, connector durability, impedance stability, and electrical continuity. Backed by a 6-month replacement warranty.

✅ Bulk & OEM Inquiry:

Need custom lengths or bulk orders?
📞 Call/WhatsApp: +91-6266758816 / +91-9303369506
📧 Email: netboon15@gmail.com

NETBOON offers OEM manufacturing, custom RF cable assemblies, and bulk supply for telecom, IoT, SDR, industrial, and wireless RF applications.

Cable Length In Meter

1, 5, 10, 15, 20, 25
