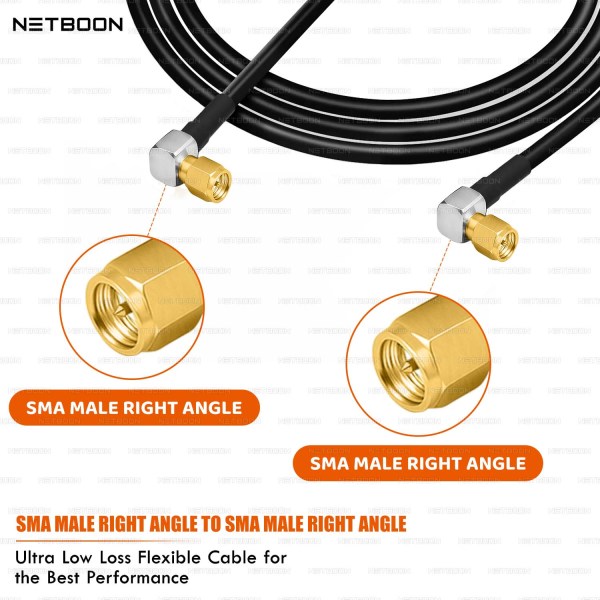

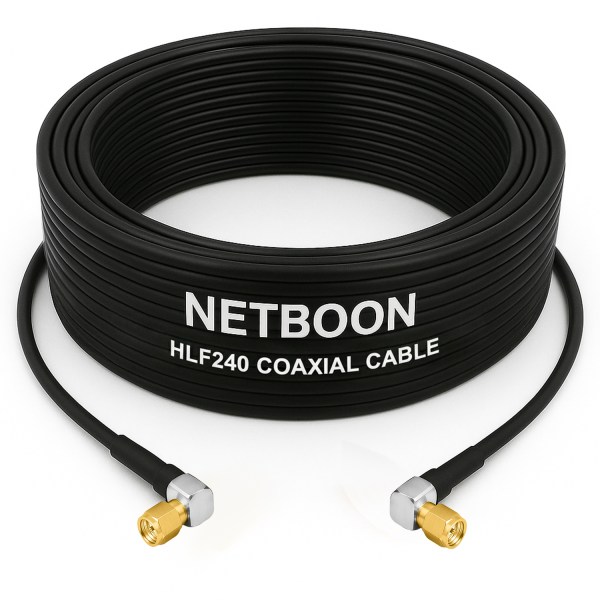

HLF240 Low Loss RF Cable with SMA Male Right Angle to SMA Male Right Angle Connectors | 6GHz Compact Coax for SDR, IoT & Industrial RF Systems
HLF240 Low Loss RF Cable with SMA Male Right Angle to SMA Male Right Angle Connectors | 6GHz Compact Coax for SDR, IoT & Industrial RF Systems
HLF240 Low Loss RF Cable with SMA Male Right Angle to SMA Male Right Angle Connectors | 6GHz Compact Coax for SDR, IoT & Industrial RF Systems
HLF240 Low Loss RF Cable with SMA Male Right Angle to SMA Male Right Angle Connectors | 6GHz Compact Coax for SDR, IoT & Industrial RF Systems
HLF240 Low Loss RF Cable with SMA Male Right Angle to SMA Male Right Angle Connectors | 6GHz Compact Coax for SDR, IoT & Industrial RF Systems
HLF240 Low Loss RF Cable with SMA Male Right Angle to SMA Male Right Angle Connectors | 6GHz Compact Coax for SDR, IoT & Industrial RF Systems
HLF240 Low Loss RF Cable with SMA Male Right Angle to SMA Male Right Angle Connectors | 6GHz Compact Coax for SDR, IoT & Industrial RF Systems
  1. HLF240 Low Loss RF Cable with SMA Male Right Angle to SMA Male Right Angle Connectors | 6GHz Compact Coax for SDR, IoT & Industrial RF Systems
  2. HLF240 Low Loss RF Cable with SMA Male Right Angle to SMA Male Right Angle Connectors | 6GHz Compact Coax for SDR, IoT & Industrial RF Systems
  3. HLF240 Low Loss RF Cable with SMA Male Right Angle to SMA Male Right Angle Connectors | 6GHz Compact Coax for SDR, IoT & Industrial RF Systems
  4. HLF240 Low Loss RF Cable with SMA Male Right Angle to SMA Male Right Angle Connectors | 6GHz Compact Coax for SDR, IoT & Industrial RF Systems
  5. HLF240 Low Loss RF Cable with SMA Male Right Angle to SMA Male Right Angle Connectors | 6GHz Compact Coax for SDR, IoT & Industrial RF Systems
  6. HLF240 Low Loss RF Cable with SMA Male Right Angle to SMA Male Right Angle Connectors | 6GHz Compact Coax for SDR, IoT & Industrial RF Systems
  7. HLF240 Low Loss RF Cable with SMA Male Right Angle to SMA Male Right Angle Connectors | 6GHz Compact Coax for SDR, IoT & Industrial RF Systems

HLF240 Low Loss RF Cable with SMA Male Right Angle to SMA Male Right Angle Connectors | 6GHz Compact Coax for SDR, IoT & Industrial RF Systems

Price range: ₹499 through ₹2599

Additional Offers
  • Flat 5% Off on Prepaid Order

The NETBOON HLF240 Low Loss Coaxial Cable with SMA Male Right Angle to SMA Male Right Angle Connector is engineered for high-frequency RF installations where space efficiency, low attenuation, and reliable signal integrity are essential. Manufactured using premium HLF240 low-loss coaxial cable, this assembly ensures stable 50-ohm impedance and excellent electrical performance for SDR platforms, IoT gateways, antennas, telemetry equipment, and industrial wireless systems.

The cable is built with a Solid Bare Copper center conductor, Foamed Polyethylene dielectric, Sealed APA Tape inner shield, and a 95% Tinned Copper Braid outer shield, delivering strong EMI protection and long-term durability. Dual SMA Male Right-Angle connectors allow compact routing in confined enclosures, reduce cable strain, and help maintain consistent RF performance in dense installations.

Supporting a frequency range up to 6 GHz, each assembly is individually tested for impedance stability, shielding effectiveness, electrical continuity, and connector reliability—making it suitable for lab, field, and industrial RF environments.

✅ Technical & Mechanical Specifications (Spreadsheet Format):

Parameter Specification
Cable Type HLF240 Low Loss Coaxial Cable
Connector A SMA Male Right Angle
Connector B SMA Male Right Angle
Impedance 50 Ohm
Frequency Range Up to 6 GHz
Center Conductor Solid Bare Copper
Dielectric Foamed Polyethylene
Inner Shield Sealed APA Tape
Outer Shield 36 AWG, 95% Tinned Copper Braid
Jacket Black PE
Shielding Level High – Dual Shield
VSWR ≤ 1.30 Typical
Flexibility Medium – Ideal for compact installations
Operating Temperature -40 °C to +85 °C
Applications SDR, IoT, antennas, telemetry, RF testing, industrial wireless systems

✅ Compatibility:

Compatible with SMA-based RF modules, SDR devices, IoT gateways, antennas, telemetry units, and industrial wireless equipment requiring compact right-angle RF connectivity.

✅ Warranty Information:

6 Months Warranty – Quality Assured by NETBOON
Each cable assembly is tested for shielding performance, connector durability, impedance stability, and electrical continuity. Backed by a 6-month replacement warranty.

✅ Bulk & OEM Inquiry:

Need custom lengths or bulk orders?
📞 Call/WhatsApp: +91-6266758816 / +91-9303369506
📧 Email: netboon15@gmail.com

NETBOON offers OEM manufacturing, custom RF cable assemblies, and bulk supply for telecom, IoT, SDR, industrial, and wireless RF applications.

Cable Length In Meter

1, 5, 10, 15, 20, 25
