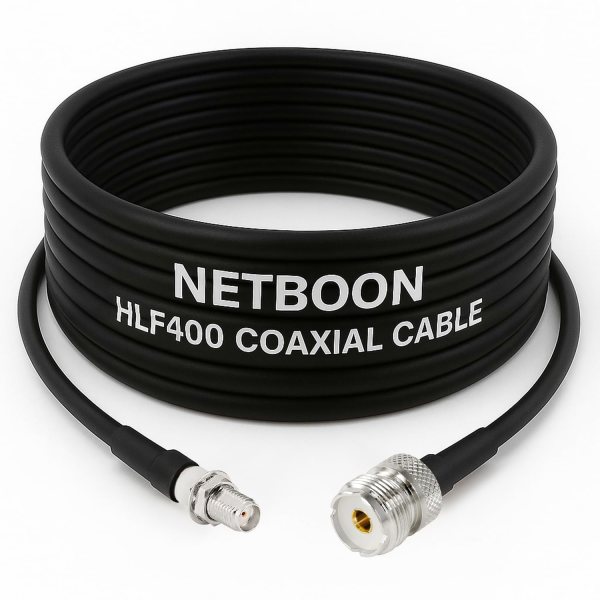

HLF400 Coaxial Cable Assembly with SMA Female to UHF Female Connector

The NETBOON HLF400 Coaxial Cable Assembly with SMA Female to UHF Female Connector is a premium-grade RF solution engineered to deliver superior performance and minimal signal loss in high-frequency applications. Built with high-quality HLF400 coaxial cable, which is a professional equivalent to LMR400, this assembly ensures long-lasting performance, even in challenging outdoor or industrial environments.

The cable assembly features an SMA Female connector on one end and a UHF Female (SO-239) connector on the other, providing compatibility with a wide range of RF devices such as antennas, radio transmitters, surveillance receivers, and communication systems. The connectors are precisely crafted for a secure, low-loss connection, making this assembly ideal for professional and DIY RF installations.

Engineered with a copper-clad aluminum (CCA) inner conductor, dual shielding (aluminum foil and 95% tinned copper braid), and a UV-resistant polyethylene jacket, this cable is built to withstand outdoor conditions while maintaining signal integrity over long distances.

🟢 Key Features:

• ✅ SMA Female to UHF Female (SO-239) Connector Configuration
• ✅ HLF400 Coaxial Cable – LMR400 Equivalent
• ✅ Frequency Range: DC to 6 GHz
• ✅ Outdoor UV-Resistant Polyethylene Jacket
• ✅ High Shielding Efficiency – Dual Shielding
• ✅ Supports RF, Antenna, and Communication Devices

🟢 Technical & Mechanical Specifications:

• Cable Type: HLF400 (LMR400 Equivalent)
• Connector A: SMA Female
• Connector B: UHF Female (SO-239)
• Impedance: 50 Ohms
• Frequency Range: DC to 6 GHz
• VSWR: ≤ 1.25
• Conductor: Copper-Clad Aluminum (CCA)
• Shielding: Aluminum Foil + 95% Tinned Copper Braid
• Outer Jacket: UV-Resistant Polyethylene (PE)
• Temperature Range: -40°C to +85°C
• Available Length Options: 1 Meter, 5 Meter, 10 Meter, 15 Meter, 20 Meter, 25 Meter, 30 Meter

🟢 Extended Compatible Devices:

UHF Base Stations, VHF/UHF Radios, RF Antennas, Wireless Access Points, SMA Interface Boards, Video Transmission Systems, Test Instruments, Communication Consoles, RF Signal Converters, SO-239-Compatible Devices

🟢 Warranty Information:

6 Months Warranty – Quality Assured by NETBOON
Every unit is tested and inspected for reliability and backed by our performance warranty.
