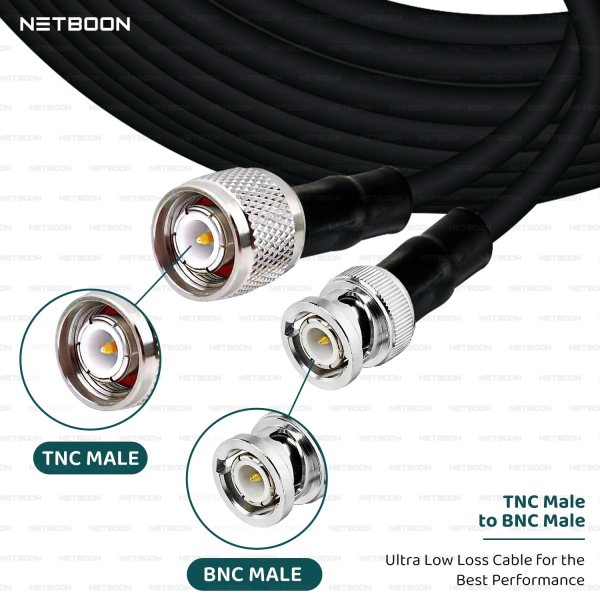

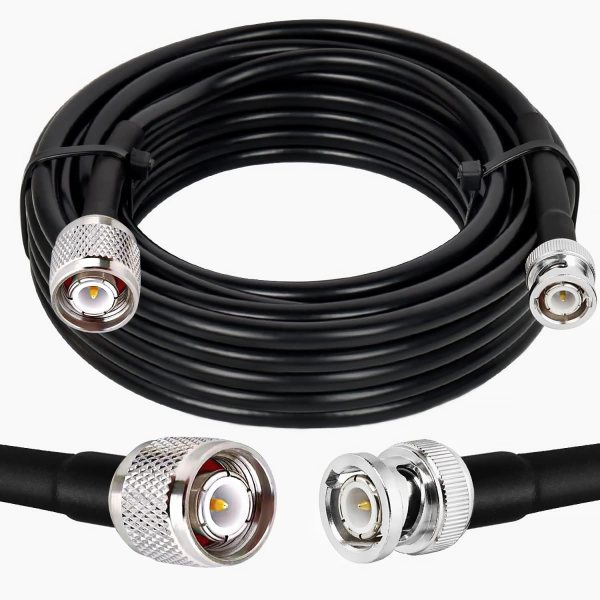

HLF400 Coaxial Cable Assembly with TNC Male to BNC Male Connector | Low Loss RF Coax | 50 Ohm Jumper Cable

The NETBOON HLF400 Coaxial Cable Assembly with TNC Male to BNC Male Connector is a premium-grade, low-loss RF cable designed to support high-performance connectivity in both indoor labs and outdoor deployments. This assembly is constructed with HLF400 coaxial cable, which is an industry-grade equivalent to LMR400, known for its ultra-low signal attenuation, high shielding, and long service life.

Engineered to operate effectively in the DC to 6 GHz frequency range, this cable supports a wide variety of RF applications such as cellular communication, GPS, broadcast, test equipment interconnects, and signal monitoring. The TNC Male to BNC Male configuration allows secure threaded and quick-connect interfaces for hybrid compatibility between threaded and bayonet-type systems. TNC connectors offer a secure connection for outdoor use, while the BNC end enables rapid test-bench swapping or quick-release installations.

This cable features a Copper Clad Aluminum (CCA) conductor, dual-layer shielding for high RF isolation, and a UV-resistant PE outer jacket, making it resilient to environmental exposure. Whether used in a professional lab or field-mounted communication equipment, this assembly ensures high signal integrity and robust mechanical performance.

🔹 Equivalent to LMR400, this HLF400 coax cable is ideal for long-distance and high-frequency signal transmissions with minimum signal loss.

---

🟢 Key Features:

• ✅ Connector Type: TNC Male to BNC Male

• ✅ Cable Type: NETBOON HLF400 (LMR400 Equivalent)

• ✅ Low Insertion Loss – Ideal for Long-Run Installations

• ✅ High Shielding Effectiveness – Excellent EMI/RFI Protection

• ✅ Quick & Secure Connections – Threaded TNC + Bayonet BNC

• ✅ Supports up to 6 GHz Frequency Range

• ✅ UV Resistant & Weatherproof Jacket – Built for Outdoor Use

• ✅ High Durability – Suitable for Industrial Applications

• ✅ Length Options Available for All Use Cases

---

🟢 Technical & Mechanical Specifications:

• Cable Type: HLF400 Coaxial

• Impedance: 50 Ohms

• Connector 1: TNC Male

• Connector 2: BNC Male

• Frequency Range: DC to 6 GHz

• VSWR: ≤ 1.25

• Insertion Loss: ~0.22 dB/m @ 2.4 GHz

• Conductor Material: Copper Clad Aluminum (CCA)

• Shielding: Aluminum Foil + 95% Tinned Copper Braid

• Outer Jacket: Black PE (UV Resistant)

• Operating Temperature: -40°C to +85°C

• Available Length Options: 1 Meter, 5 Meter, 10 Meter, 15 Meter, 20 Meter, 25 Meter, 30 Meter

---

🟢 Compatible Devices:

RF Signal Generators, Antenna Testing Equipment, BNC Oscilloscopes, Wireless Communication Panels, Spectrum Analyzers, Network Monitoring Devices, GPS Antennas, CCTV and Security Systems, Field Measurement Instruments, SDR Receivers, Radio Transmitters, TNC to BNC RF Bridges, Base Station Interfaces, Telecom Installations, Outdoor Wireless Antennas, Broadcast RF Splitters

---

🟢 Warranty Information:

6 Months Warranty – Quality Assured by NETBOON
Every unit is tested and inspected for reliability and backed by our performance warranty.

---

🟢 Bulk & OEM Inquiry:

Need custom length or bulk orders for your RF project?
📞 Call/WhatsApp: +91-6266758816, +91-9303369506
📧 Email: netboon15@gmail.com
