HLF400 Coaxial Cable Assembly with TNC Male to N Female Connector | Low Loss 50 Ohm RF Cable | Outdoor-Indoor Use

The NETBOON HLF400 Coaxial Cable Assembly with TNC Male to N Female Connector is a premium-grade, low-loss RF solution designed for professional-grade wireless communication systems. Built for high performance, this cable supports frequencies ranging from DC to 6 GHz, making it ideal for applications such as LTE, Wi-Fi, GSM, GPS, and IoT network setups.

HLF400 cable construction offers significant improvements over standard coaxial cables. With a CCA (Copper Clad Aluminum) conductor and heavy double shielding, it provides robust signal integrity, reduced attenuation, and superior protection against EMI and RFI. Its thick, durable outer jacket is weather-resistant and UV-protected, allowing for reliable indoor and outdoor deployment even in harsh environments.

The assembly features a TNC Male connector on one end and an N Female connector on the other, ensuring a secure and stable interface with compatible RF devices such as routers, antennas, splitters, modems, and RF analyzers. Its solid mechanical structure ensures long-term use without performance degradation, making it suitable for fixed and mobile wireless applications, telecom setups, field testing, and more.

Each NETBOON cable is fully tested for quality assurance and optimal RF performance. Whether you’re extending antenna lines or building a long-distance wireless system, this cable offers durability, compatibility, and clean signal transmission.

---

🟢 Key Features:

• ✅ Connector Type: TNC Male to N Female

• ✅ Cable Type: HLF400 Low Loss 50 Ohm Coaxial Cable

• ✅ Frequency Range: DC to 6 GHz

• ✅ Heavy Duty Design – Rugged and Weather-Resistant

• ✅ Low Signal Attenuation – Maintains Signal Strength Over Long Runs

• ✅ Double Shielded – Reduces Interference from External Sources

• ✅ CCA Conductor – Cost-Effective with Reliable Conductivity

• ✅ Pre-Tested for Reliability and Performance

• ✅ Suitable for Outdoor and Indoor Installations

• ✅ Custom Lengths Available on Request

---

🟢 Technical & Mechanical Specifications:

• Cable Type: HLF400 Coaxial

• Impedance: 50 Ohms

• Connector 1: TNC Male (Nickel Plated)

• Connector 2: N Female (Nickel Plated)

• Frequency Range: DC to 6 GHz

• VSWR: ≤ 1.25

• Conductor Material: Copper Clad Aluminum (CCA)

• Shielding: Aluminum Foil + Tinned Copper Braid

• Jacket Material: PE (UV Resistant)

• Color: Black

• Operating Temperature: -40°C to +85°C

• Available Length Options: 1 Meter, 5 Meter, 10 Meter, 15 Meter, 20 Meter, 25 Meter, 30 Meter

---

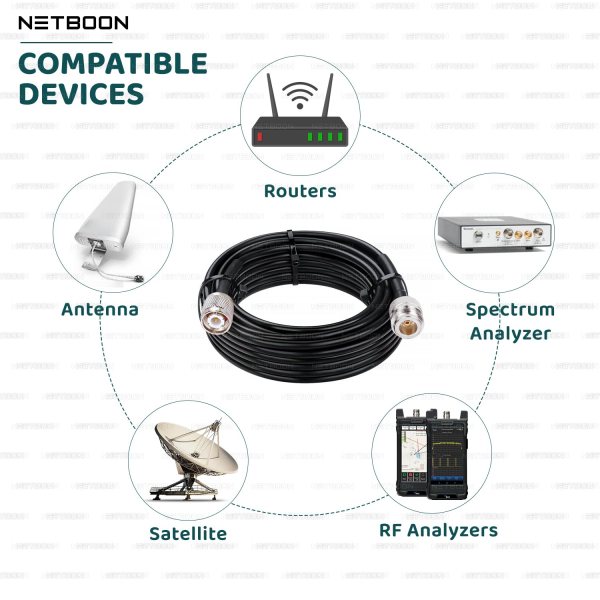

🟢 Compatible Devices:

Ubiquiti Rocket M5, MikroTik BaseBox, Netgear LTE Modems, Cisco Wireless Routers, RF Signal Analyzers, 4G LTE Antennas, Ham Radios, IoT Network Equipment, Wi-Fi Access Points, Teltonika RUT Series, Huawei 4G CPE, GPS Antennas, SDR Receivers, GSM Repeaters, External N-Type Panel Antennas, TNC Compatible RF Transceivers, TP-Link Outdoor Routers, N-to-TNC Converters

---

🟢 Warranty Information:

6 Months Warranty – Quality Assured by NETBOON
Every unit is tested and inspected for reliability and backed by our performance warranty.

---
