HLF400 Coaxial Cable Assembly with TNC Male to SMA Female Connector | 50 Ohm Low Loss RF Cable | Weatherproof Outdoor Rated

The NETBOON HLF400 Coaxial Cable Assembly with TNC Male to SMA Female Connector is a high-performance RF solution designed to support a wide range of wireless communication applications. Built to handle frequencies from DC to 6 GHz, this cable is ideal for use in 4G/5G networks, GPS, GSM, Wi-Fi, IoT devices, and RF testing environments.

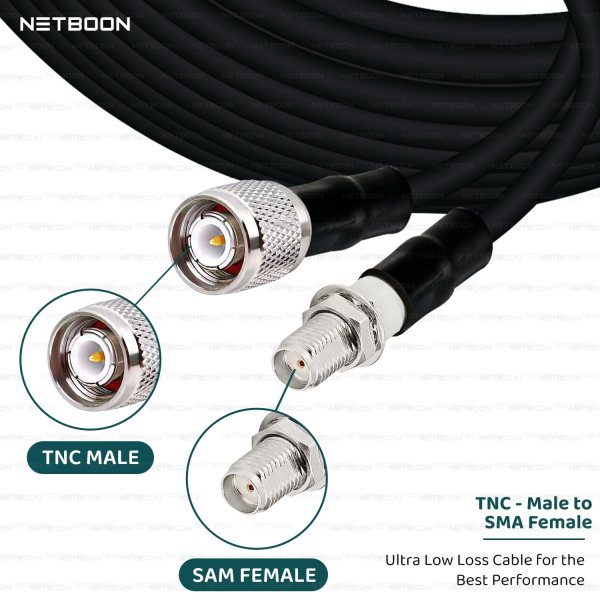

Featuring a TNC Male connector on one end and an SMA Female connector on the other, this assembly provides a secure, low-loss connection between devices using different RF interfaces. It’s particularly useful for extending antenna connections, linking RF modules, or adapting between outdoor and indoor systems.

Manufactured with HLF400 low loss coaxial cable, it minimizes signal attenuation while maintaining excellent shielding effectiveness. The cable features a Copper Clad Aluminum (CCA) conductor for enhanced signal integrity at a cost-effective price, and double shielding (aluminum foil and copper braid) to defend against EMI and RFI interference in noisy environments.

🔹 This cable is equivalent to LMR400 cable, offering the same electrical performance, flexibility, and durability—while being more economical. Its UV-resistant PE jacket makes it suitable for all-weather outdoor installations, including telecom towers, outdoor routers, and remote sensor setups.

All NETBOON cables are factory-tested for electrical performance, impedance, and VSWR consistency. Whether you’re deploying antennas or connecting RF devices, this assembly ensures high-reliability operation.

---

🟢 Key Features:

• ✅ Connector Type: TNC Male to SMA Female

• ✅ Cable Type: HLF400 Low Loss 50 Ohm Coaxial Cable

• ✅ Frequency Range: DC to 6 GHz

• ✅ Weatherproof Design – Built for Indoor/Outdoor Installations

• ✅ Low Attenuation – Preserves Signal Quality Across Long Runs

• ✅ Double Shielded – Protects Against Electromagnetic Interference

• ✅ UV Resistant Jacket – PE Coating for Outdoor Longevity

• ✅ Tested for VSWR and Signal Integrity

• ✅ Custom Lengths Available on Demand

---

🟢 Technical & Mechanical Specifications:

• Cable Type: HLF400 Coaxial

• Impedance: 50 Ohms

• Connector 1: TNC Male

• Connector 2: SMA Female (Gold Plated)

• Frequency Range: DC to 6 GHz

• VSWR: ≤ 1.25

• Insertion Loss: ~0.22 dB/m @ 2.4 GHz

• Conductor Material: Copper Clad Aluminum (CCA)

• Shielding: Aluminum Foil + Tinned Copper Braid

• Jacket Material: PE (Black, UV Resistant)

• Operating Temperature: -40°C to +85°C

• Available Length Options: 1 Meter, 5 Meter, 10 Meter, 15 Meter, 20 Meter, 25 Meter, 30 Meter

---

🟢 Extended Compatible Devices:

MikroTik Routers, Ubiquiti Base Stations, LTE Antennas, GPS Modules, Teltonika RUT Routers, SDR Receivers, SMA Panel Antennas, TNC Output RF Devices, Wi-Fi Access Points, GSM Modems, Netgear & Huawei LTE Devices, IoT Gateways, Test Instruments, NVR Systems with Antenna Ports, Signal Analyzers, 4G/5G Outdoor Routers

---

🟢 Warranty Information:

6 Months Warranty – Quality Assured by NETBOON
Every unit is tested and inspected for reliability and backed by our performance warranty.

---
