HLF400 Coaxial Cable Assembly with TNC Male to SMA Male Connector | 50 Ohm Low Loss RF Cable | Indoor & Outdoor Use

The NETBOON HLF400 Coaxial Cable Assembly with TNC Male to SMA Male Connector delivers reliable high-frequency RF performance in demanding wireless environments. Designed for telecom, industrial, and commercial applications, this cable assembly supports DC to 6 GHz frequency range—suitable for LTE, GSM, GPS, Wi-Fi, 5G, and RF test systems.

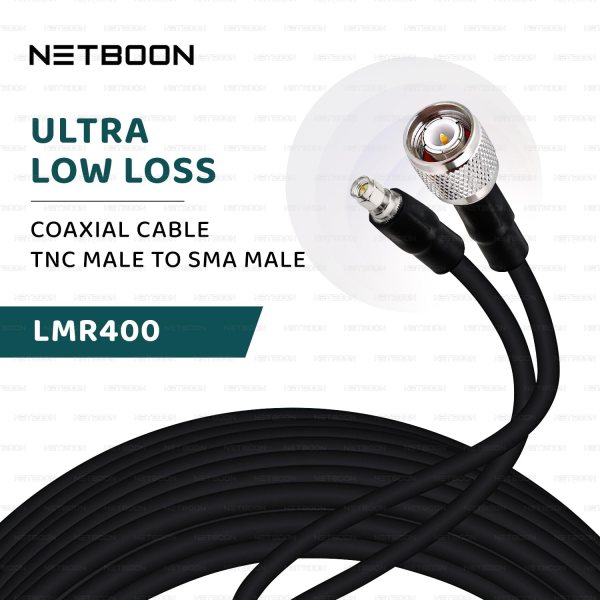

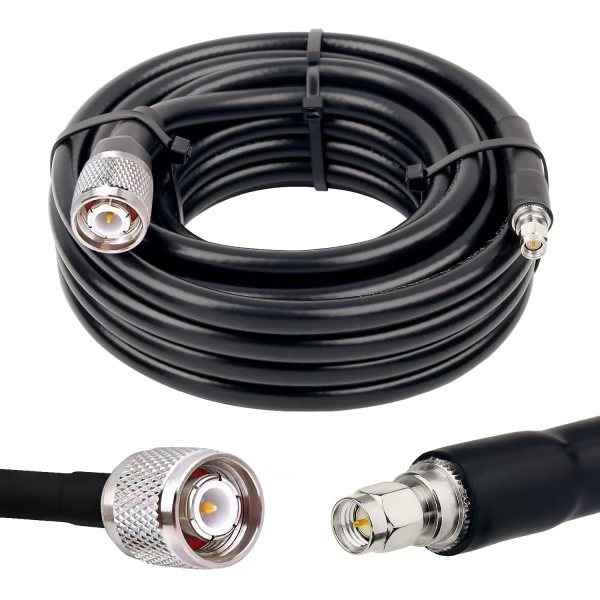

This assembly features a TNC Male connector on one end and an SMA Male connector on the other, allowing secure connectivity between devices that use these different RF interfaces. It’s ideal for routers, antennas, signal analyzers, LTE modems, base stations, and other RF systems.

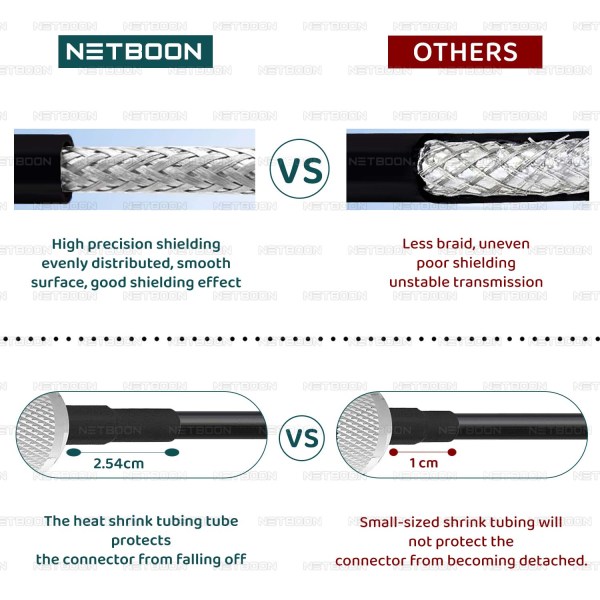

Built with HLF400 low loss coaxial cable, this assembly minimizes signal attenuation even over extended distances. The inner conductor is made of Copper Clad Aluminum (CCA), offering a reliable balance between performance and affordability. A combination of aluminum foil and tinned copper braid shielding ensures excellent protection from EMI/RFI interference, making it suitable for both indoor control rooms and outdoor antenna installations.

🔹 This cable is equivalent to LMR400 cable, providing comparable signal loss characteristics, rugged construction, and shielding capabilities at a more cost-effective price point. Whether you are integrating telecom infrastructure or DIY radio communication setups, NETBOON’s assemblies guarantee strong signal transmission and long-term reliability.

Each unit is tested to meet 50-ohm impedance standards and VSWR limits, ensuring consistency and professional-grade RF performance in real-world installations.

---

🟢 Key Features:

• ✅ Connector Type: TNC Male to SMA Male

• ✅ Cable Type: HLF400 Low Loss RF Coaxial Cable

• ✅ Impedance: 50 Ohms

• ✅ Frequency Support: DC to 6 GHz

• ✅ Low Loss Performance – Ideal for Long-Distance RF Transmission

• ✅ Heavy Duty Jacket – UV and Weather Resistant for Outdoor Use

• ✅ Double Shielded Construction – High EMI/RFI Protection

• ✅ Reliable Interconnect – Between Different Connector Standards

• ✅ Flexible Length Options Available

• ✅ Individually Inspected and Tested

---

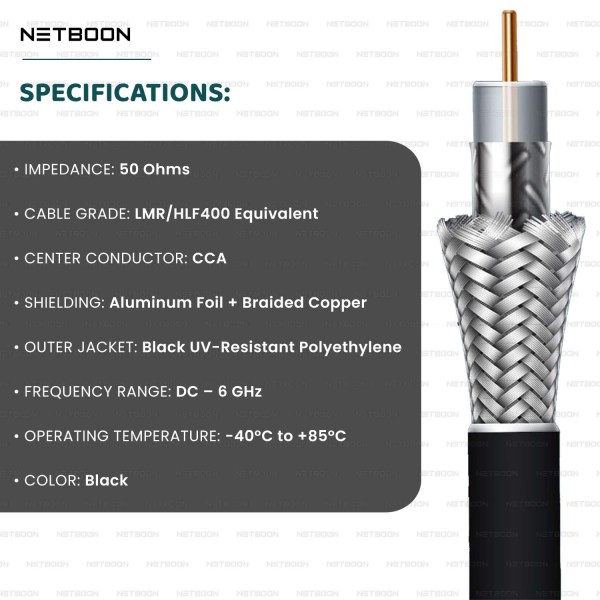

🟢 Technical & Mechanical Specifications:

• Cable Type: HLF400 Coaxial

• Impedance: 50 Ohms

• Connector 1: TNC Male

• Connector 2: SMA Male (Gold Plated)

• Frequency Range: DC to 6 GHz

• VSWR: ≤ 1.25

• Insertion Loss: ~0.22 dB/m @ 2.4 GHz

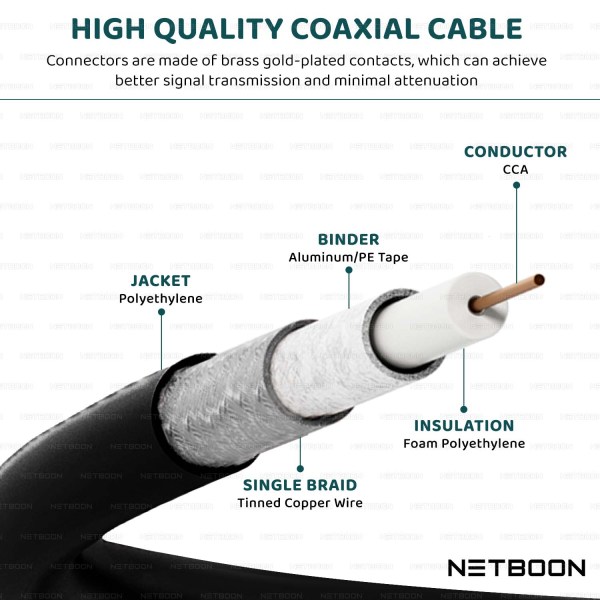

• Conductor: Copper Clad Aluminum (CCA)

• Shielding: Aluminum Foil + Tinned Copper Braid

• Outer Jacket: PE (UV Resistant)

• Color: Black

• Operating Temperature: -40°C to +85°C

• Available Length Options: 1 Meter, 5 Meter, 10 Meter, 15 Meter, 20 Meter, 25 Meter, 30 Meter

---

🟢 Compatible Devices:

MikroTik LTE Routers, Huawei 4G/5G CPEs, Teltonika RUT Series, Netgear Nighthawk, Cisco Wi-Fi Access Points, RF Signal Generators, Ubiquiti Devices, SDR Radios, GPS Modules, GSM Repeaters, LTE Modems with SMA Input, External Antennas with TNC/SMA Connectors, IoT RF Gateways, Wireless Bridges, Panel Antennas, and Multi-band Antennas for Outdoor Systems

---

🟢 Warranty Information:

6 Months Warranty – Quality Assured by NETBOON
Every unit is tested and inspected for reliability and backed by our performance warranty.

---
