HLF400 Coaxial Cable Assembly with TNC Male to TNC Female Connector | Low Loss 50 Ohm RF Cable | Outdoor-Indoor Use

The NETBOON HLF400 Coaxial Cable Assembly with TNC Male to TNC Female Connector is a professional-grade RF solution engineered for high-frequency signal transmission in demanding environments. Whether you’re working on a wireless communication system, lab setup, or antenna extension, this cable delivers exceptional performance and long-term reliability.

This coaxial assembly uses HLF400 low-loss cable, which is equivalent in performance to LMR400, offering minimal signal attenuation, excellent shielding, and durable mechanical properties. Supporting frequencies from DC to 6 GHz, it is compatible with a wide range of RF applications including LTE, GSM, GPS, 5G, Wi-Fi, Ham radio, and test setups.

Fitted with TNC Male to TNC Female connectors, it allows easy extension or interface with existing TNC-terminated equipment. The TNC connectors use a threaded coupling mechanism, providing secure, vibration-resistant connections ideal for outdoor and mobile applications.

The cable features a Copper Clad Aluminum (CCA) conductor and dual shielding (aluminum foil and tinned copper braid), ensuring strong protection against EMI/RFI. Its PE outer jacket is UV-resistant and waterproof, making it a perfect choice for harsh outdoor installations.

Each unit is tested for performance and durability, ensuring you receive a cable that meets industrial-grade RF standards.

---

🟢 Key Features:

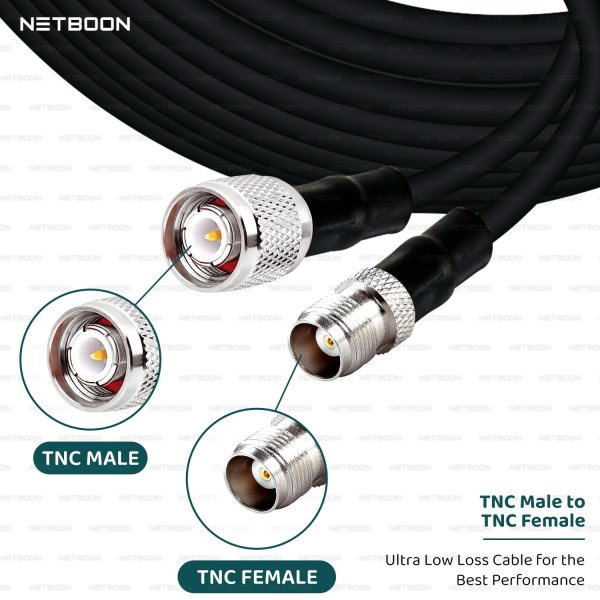

• ✅ Connector Type: TNC Male to TNC Female

• ✅ Cable Type: HLF400 Low Loss Coaxial

• ✅ Impedance: 50 Ohm

• ✅ Frequency Range: DC to 6 GHz

• ✅ Threaded TNC Design – Stable and Secure Connections

• ✅ Low Attenuation Cable – Preserves Signal Integrity

• ✅ Double Shielding – Minimizes Signal Interference

• ✅ UV & Weather Resistant Jacket – Ideal for Outdoor Installations

• ✅ Tested for Electrical and Mechanical Stability

• ✅ Supports Custom Lengths Upon Request

---

🟢 Technical & Mechanical Specifications:

• Cable Type: HLF400 Coaxial

• Impedance: 50 Ohms

• Connector 1: TNC Male

• Connector 2: TNC Female

• Frequency Range: DC to 6 GHz

• VSWR: ≤ 1.25

• Insertion Loss: ~0.22 dB/m @ 2.4 GHz

• Conductor Material: Copper Clad Aluminum (CCA)

• Shielding: Aluminum Foil + 95% Tinned Copper Braid

• Outer Jacket: PE (Black, UV Resistant)

• Operating Temperature: -40°C to +85°C

• Available Length Options: 1 Meter, 5 Meter, 10 Meter, 15 Meter, 20 Meter, 25 Meter, 30 Meter

---

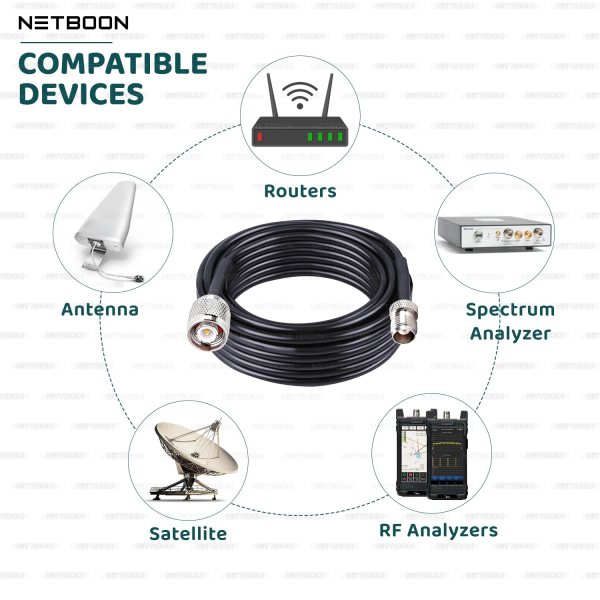

🟢 Extended Compatible Devices:

Cisco Access Points, LTE Modems, Ubiquiti Antennas, TNC Wi-Fi Routers, SDR Receivers, TNC-terminated RF modules, GSM Repeaters, GPS Antennas, Ham Radios, RF Signal Analyzers, Point-to-Point Wireless Systems, Wireless Sensor Nodes, Outdoor Base Stations, Panel Antennas with TNC Ports, Test Benches, Signal Distribution Systems

---

🟢 Warranty Information:

6 Months Warranty – Quality Assured by NETBOON
Every unit is tested and inspected for reliability and backed by our performance warranty.

---
