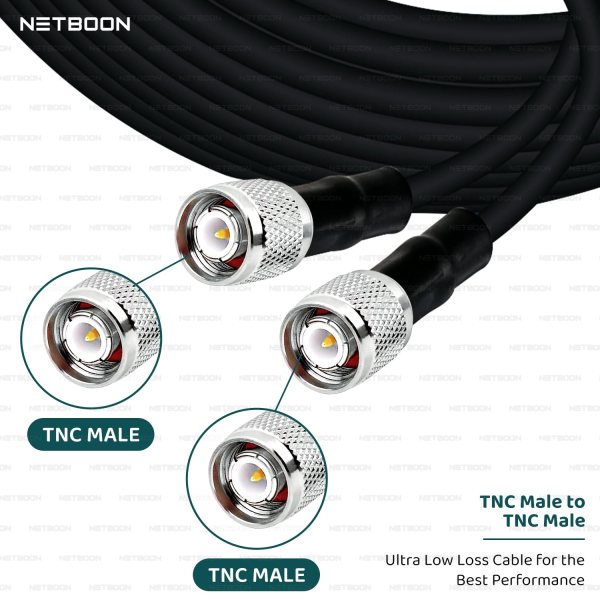

HLF400 Coaxial Cable Assembly with TNC Male to TNC Male Connector | 50 Ohm Low Loss RF Coax | Outdoor & Indoor Use

The NETBOON HLF400 Coaxial Cable Assembly with TNC Male to TNC Male Connector is a high-performance RF cable designed for applications requiring low signal loss, strong shielding, and dependable connections. Built for both indoor and outdoor use, this assembly supports frequencies from DC to 6 GHz, making it perfect for GSM, LTE, Wi-Fi, GPS, test equipment, and general RF transmission systems.

Equipped with TNC Male connectors on both ends, this cable provides a rugged threaded connection that maintains secure coupling in high-vibration or outdoor environments. Commonly used in commercial wireless infrastructure, RF labs, antenna installations, and data acquisition setups, this assembly is built for stability and long-term reliability.

Manufactured using HLF400 low loss coaxial cable, the assembly delivers excellent signal integrity over extended distances. It features a CCA (Copper Clad Aluminum) conductor for a cost-efficient build with solid performance. Double shielding—using both aluminum foil and tinned copper braid—offers excellent protection from electromagnetic and radio frequency interference.

🔹 This cable is equivalent to LMR400 cable, delivering nearly identical low attenuation, impedance stability, and mechanical durability. Its outdoor-rated PE jacket resists UV radiation, moisture, and abrasion—making it the ideal choice for challenging environments.

All NETBOON cables are pre-tested for impedance accuracy and performance quality, ensuring each unit delivers consistent 50-ohm RF connectivity with minimal VSWR.

---

🟢 Key Features:

• ✅ Connector Type: TNC Male to TNC Male

• ✅ Cable Type: HLF400 Low Loss Coaxial Cable

• ✅ Impedance: 50 Ohm

• ✅ Frequency Range: DC to 6 GHz

• ✅ Threaded TNC Connectors – Vibration-Resistant, Secure Fit

• ✅ Low Signal Attenuation – Ideal for Long-Distance Runs

• ✅ Double Shielded Design – EMI and RFI Protection

• ✅ UV Resistant Outer Jacket – PE Coated for Outdoor Durability

• ✅ Tested for Performance and Reliability

• ✅ Available in Multiple Lengths

---

🟢 Technical & Mechanical Specifications:

• Cable Type: HLF400 Coaxial

• Impedance: 50 Ohms

• Connector 1: TNC Male

• Connector 2: TNC Male

• Frequency Range: DC to 6 GHz

• VSWR: ≤ 1.25

• Insertion Loss: ~0.22 dB/m @ 2.4 GHz

• Conductor Material: Copper Clad Aluminum (CCA)

• Shielding: Aluminum Foil + Tinned Copper Braid

• Outer Jacket: PE (Black, UV Resistant)

• Operating Temperature: -40°C to +85°C

• Available Length Options: 1 Meter, 5 Meter, 10 Meter, 15 Meter, 20 Meter, 25 Meter, 30 Meter

---

🟢 Extended Compatible Devices:

Cisco Wireless Systems, TNC-Compatible Antennas, RF Test Instruments, Ubiquiti AirMax Devices, MikroTik Base Stations, Teltonika Routers, GPS Modules, LTE Routers, GSM Repeaters, Ham Radios, TNC-Type Radio Equipment, SDR Receivers, Wi-Fi Access Points with TNC Ports, Outdoor Panel Antennas, RF Splitters and Combiners, Wireless Sensor Gateways

---

🟢 Warranty Information:

6 Months Warranty – Quality Assured by NETBOON
Every unit is tested and inspected for reliability and backed by our performance warranty.

---

🟢 Bulk & OEM Inquiry:

Need custom length or bulk orders for your RF project?
📞 Call/WhatsApp: +91-6266758816, +91-9303369506
📧 Email: netboon15@gmail.com
