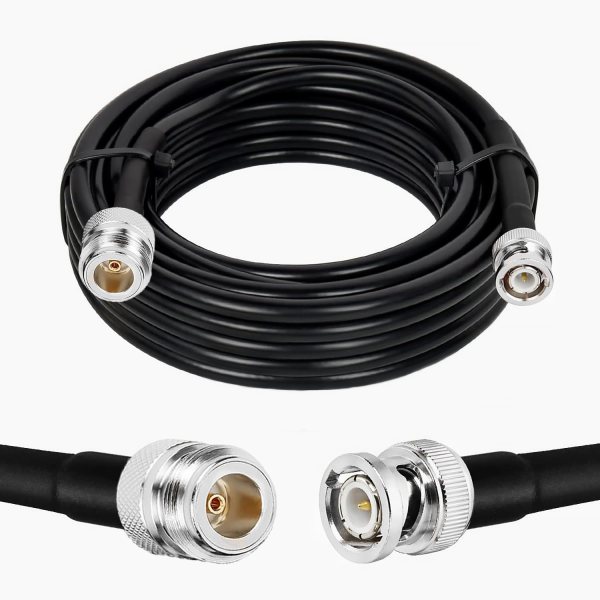

HLF400 Coaxial Cable with N Female to BNC Male Connector | Low Loss 50 Ohm RF Cable

The NETBOON HLF400 Coaxial Cable Assembly with N Female to BNC Male Connector is a professional-grade RF cable designed to meet the rigorous demands of wireless communication systems, video surveillance, signal testing, and broadcast environments. Constructed using HLF400 coaxial cable, equivalent to LMR400, this assembly provides superior electrical performance with minimal signal attenuation across long distances.

This cable features an N-Type Female connector on one end, which is threaded for a weather-sealed connection and is commonly used in outdoor RF installations. On the other end, a BNC Male connector provides a quick-connect bayonet-style interface ideal for lab testing, surveillance systems, and video/audio applications. The precision-machined connectors ensure excellent RF contact and mechanical durability.

The cable’s 50 Ohm impedance, coupled with a low VSWR rating, guarantees optimal performance across a wide frequency range from DC to 6 GHz, supporting everything from RF communication and networking to broadcast and instrumentation.

HLF400 cable construction includes a copper-clad aluminum (CCA) conductor, double shielding with aluminum foil and 95% tinned copper braid, and a UV-resistant polyethylene jacket, making it well-suited for outdoor and harsh environments.

Whether used for antenna extension, RF testing, surveillance integration, or broadcast systems, this assembly ensures robust and reliable performance with high shielding efficiency and long-term weather resistance.

---

🟢 Key Features:

• ✅ Connector Type: N Female to BNC Male

• ✅ Built with High-Quality HLF400 (LMR400 Equivalent) Low Loss Coax

• ✅ Wide Frequency Range: DC to 6 GHz

• ✅ 50 Ohm Impedance for RF Signal Integrity

• ✅ Highly Shielded Construction Reduces Interference

• ✅ Secure Threaded & Quick-Lock Connectors

• ✅ UV-Resistant and Weatherproof Cable Jacket

• ✅ Suitable for Indoor and Outdoor Use

---

🟢 Technical & Mechanical Specifications:

• Cable Type: HLF400 Low Loss RF Coaxial Cable

• Impedance: 50 Ohm

• Connector A: N-Type Female

• Connector B: BNC Male

• Frequency Range: DC to 6 GHz

• VSWR: ≤ 1.25

• Center Conductor: Copper Clad Aluminum (CCA)

• Shielding: Aluminum Foil + 95% Tinned Copper Braid

• Jacket Material: UV Resistant Polyethylene (PE)

• Operating Temperature: -40°C to +85°C

• Available Length Options: 1 Meter, 5 Meter, 10 Meter, 15 Meter, 20 Meter, 25 Meter, 30 Meter

---

🟢 Compatible Devices:

RF Test Equipment, Surveillance Cameras, Oscilloscopes, Signal Generators, Wireless Access Points, Base Stations, Antennas, Transmitters, Ham Radios, Video Distribution Systems, Network Analyzers, RF Modulators

---

🟢 Warranty Information:

6 Months Warranty – Quality Assured by NETBOON
Every unit is tested and inspected for reliability and backed by our performance warranty.

---
