HLF400 Coaxial Cable with N Female to SMA Male Connector | Low Loss RF Cable | High Frequency Antenna Jumper

The NETBOON HLF400 Coaxial Cable Assembly with N Female to SMA Male Connector is a professional-grade RF cable engineered for efficient signal transmission with minimal loss. Designed for high-performance and reliability, this assembly uses NETBOON HLF400 cable, which is equivalent to LMR400, making it ideal for both indoor and outdoor RF systems operating up to 6 GHz.

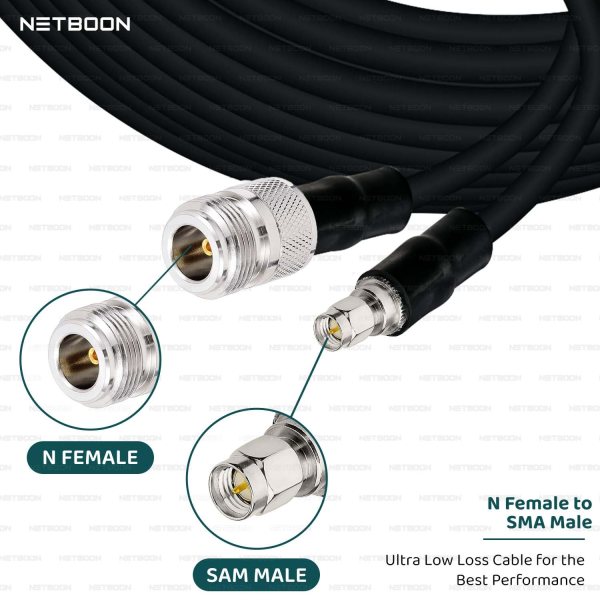

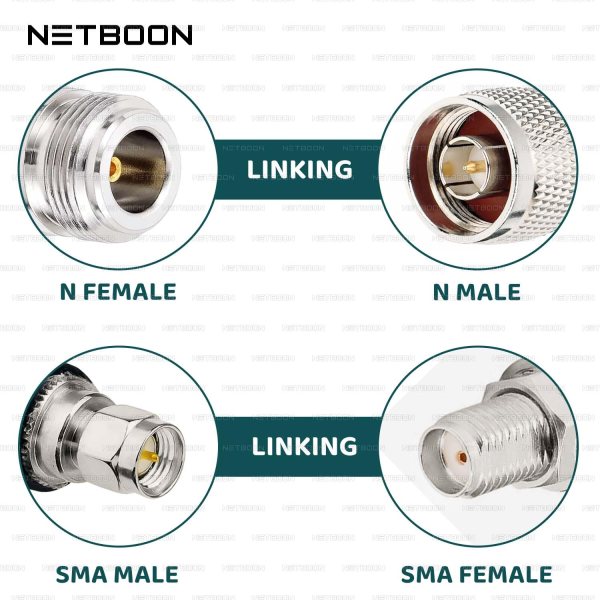

This versatile coaxial cable features a N-Type Female connector on one end and a SMA Male connector on the other, allowing seamless connectivity between large antennas, routers, and sensitive RF devices. The SMA Male connector offers a threaded interface for a secure connection to compact devices, while the N Female end ensures robust performance for heavy-duty applications.

Constructed with a Copper Clad Aluminum (CCA) center conductor, and reinforced by dual shielding (aluminum foil + 95% tinned copper braid), this assembly ensures low attenuation and excellent protection from EMI/RFI. The durable black UV-resistant polyethylene (PE) jacket safeguards the cable against harsh weather, making it suitable for long-term outdoor use.

Whether you’re connecting an external antenna to a cellular router, Wi-Fi bridge, or IoT module, this 50 Ohm low loss jumper is engineered to deliver dependable signal integrity across extended distances.

---

🟢 Key Features:

• ✅ Connector Type: N Female to SMA Male

• ✅ Cable Type: NETBOON HLF400 (LMR400 Equivalent)

• ✅ Frequency Range: DC to 6 GHz

• ✅ Impedance: 50 Ohms

• ✅ Low Insertion Loss & High Signal Integrity

• ✅ Dual Shielding for EMI/RFI Protection

• ✅ Rugged UV-Resistant Outer Jacket for Outdoor Use

• ✅ Ideal for Cellular, Wi-Fi, and RF Test Applications

---

🟢 Technical & Mechanical Specifications:

• Cable Type: HLF400 Low Loss Coaxial Cable

• Impedance: 50 Ohms

• Connector A: N Female

• Connector B: SMA Male

• Frequency Range: DC to 6 GHz

• VSWR: ≤ 1.25

• Insertion Loss: ~0.22 dB/m @ 2.4 GHz

• Conductor Material: Copper Clad Aluminum (CCA)

• Shielding: Aluminum Foil + 95% Tinned Copper Braid

• Jacket Material: UV-Resistant Black PE

• Operating Temperature: -40°C to +85°C

• Available Length Options: 1 Meter, 5 Meter, 10 Meter, 15 Meter, 20 Meter, 25 Meter, 30 Meter

---

🟢 Extended Compatible Devices:

4G/5G LTE Routers, Outdoor Antennas, Cellular Modems, SMA-Compatible Signal Boosters, RF Gateways, Surveillance Antennas, Wi-Fi Bridges, IoT Communication Hubs, SMA Test Equipment, N-Type Antenna Panels, GPS Trackers, Ham Radios, Base Stations, Wireless Repeaters, Network Analyzer Interfaces, Access Points

---

🟢 Warranty Information:

6 Months Warranty – Quality Assured by NETBOON
Every unit is tested and inspected for reliability and backed by our performance warranty.

---
