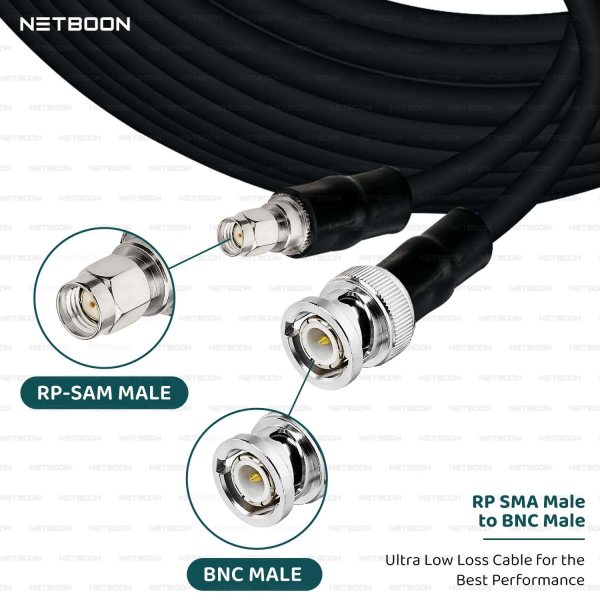

HLF400 Coaxial Cable with RP SMA Male to BNC Male Connector | Low Loss RF Cable for WiFi, Surveillance & Test Equipment

The NETBOON HLF400 Coaxial Cable Assembly with RP SMA Male to BNC Male Connector is engineered for high-performance RF signal transmission in both professional and industrial-grade applications. With a focus on durability and minimal signal attenuation, this cable is a preferred solution for linking wireless networking gear to legacy RF systems such as test instruments, CCTV setups, and signal analyzers.

Built with HLF400 low loss coaxial cable, this assembly is fully equivalent to LMR400 cable, offering high-frequency signal integrity and excellent shielding across a wide bandwidth. It is ideal for scenarios requiring a robust connection between RP-SMA and BNC interfaces, especially where signal quality cannot be compromised.

The RP SMA Male connector is widely used in modern wireless and IoT devices, while the BNC Male connector offers quick-connect/disconnect functionality, making this assembly perfect for lab and field use. The 50 Ohm impedance, combined with low VSWR and strong shielding, makes it suitable for precision RF measurement, antenna connectivity, and surveillance installations.

Designed with a Copper Clad Aluminum (CCA) center conductor, double shielding, and UV-resistant PE outer jacket, the cable ensures long-term reliability under outdoor and demanding environmental conditions.

---

🟢 Key Features:

• ✅ Connector Type: RP SMA Male to BNC Male

• ✅ Performance Equivalent to LMR400 Coaxial Cable

• ✅ 50 Ohm Impedance for RF System Compatibility

• ✅ Wide Frequency Range: DC to 6 GHz

• ✅ Low Loss Design for Long-Distance Runs

• ✅ Rugged Outdoor PE Jacket, Weatherproof

• ✅ Supports Wireless, CCTV, IoT & Lab Equipment

• ✅ Available in Various Lengths

---

🟢 Technical & Mechanical Specifications:

• Cable Type: HLF400 Low Loss RF Coaxial Cable

• Connector A: RP SMA Male

• Connector B: BNC Male

• Impedance: 50 Ohms

• Frequency Range: DC to 6 GHz

• VSWR: ≤ 1.25

• Center Conductor: Copper Clad Aluminum (CCA)

• Shielding: Aluminum Foil + 95% Tinned Copper Braid

• Outer Jacket: UV Resistant Polyethylene (PE)

• Temperature Range: -40°C to +85°C

• Available Length Options: 1 Meter, 5 Meter, 10 Meter, 15 Meter, 20 Meter, 25 Meter, 30 Meter

---

🟢 Extended Compatible Devices:

WiFi Routers, Access Points, Wireless Antennas, Network Modems, CCTV Cameras, Signal Analyzers, Test Equipment, Frequency Generators, RP-SMA Enabled IoT Devices, BNC RF Adapters, Surveillance DVRs, Oscilloscopes, RF Switches

---

🟢 Warranty Information:

6 Months Warranty – Quality Assured by NETBOON
Every unit is tested and inspected for reliability and backed by our performance warranty.

---
