HLF400 Coaxial Cable with RP TNC Male to SMA Male Connector | Low Loss RF Jumper for Wireless Communication

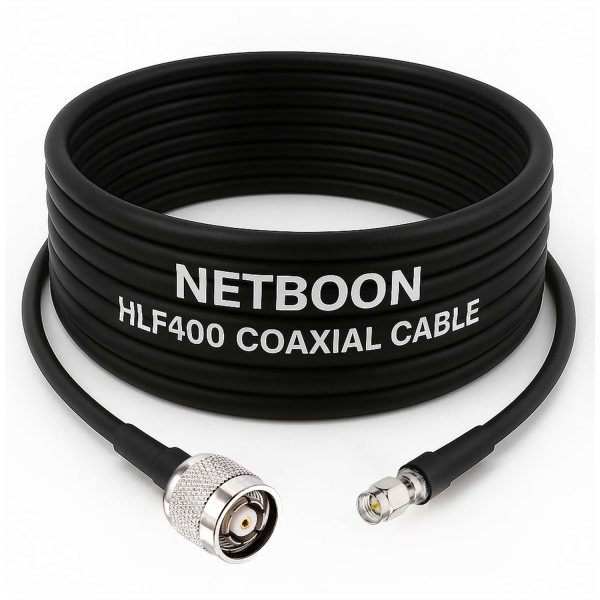

The NETBOON HLF400 Coaxial Cable Assembly with RP TNC Male to SMA Male Connector is an industrial-grade RF cable solution engineered for minimal signal loss, reliable long-distance transmission, and maximum durability. Crafted using HLF400 coax, this high-quality cable is equivalent in electrical performance to LMR400, making it ideal for high-frequency signal applications requiring low attenuation and consistent performance across the DC to 6 GHz frequency range.

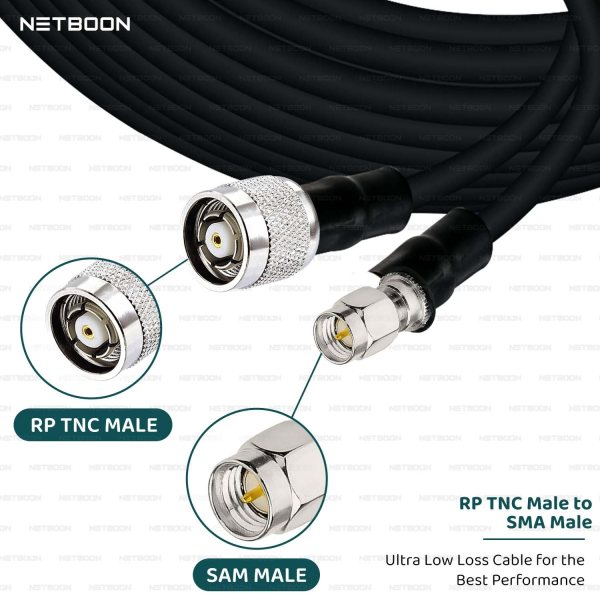

One end of the cable features a Reverse Polarity TNC (RP TNC) Male Connector, while the other end is equipped with a SMA Male Connector, offering seamless interfacing between wireless modules, access points, antennas, and other RF devices. The RP-TNC connector is widely used in rugged environments due to its threaded coupling, and SMA ensures precision mating with compact devices.

The internal Copper Clad Aluminum (CCA) conductor, combined with dual shielding (aluminum foil + 95% tinned copper braid), ensures excellent signal integrity, resistance to EMI/RFI, and consistent RF performance. Its UV-resistant polyethylene outer jacket is weatherproof, allowing the cable to perform flawlessly in both indoor and outdoor settings. Whether you’re setting up IoT networks, antenna feeds, or wireless backhauls, this assembly ensures stable transmission with extended durability.

---

🟢 Key Features:

• ✅ Connector Type: RP TNC Male to SMA Male

• ✅ Cable Grade: HLF400 (LMR400 Equivalent Quality)

• ✅ Broad Frequency Support: DC to 6 GHz

• ✅ Excellent Shielding for EMI/RFI Protection

• ✅ Rugged Design for Outdoor and Industrial Use

• ✅ Precision Fit and Secure Connection

• ✅ Compatible with Various RF Devices

---

🟢 Technical & Mechanical Specifications:

• Cable Type: HLF400 Low Loss Coaxial Cable

• Connector A: RP TNC Male

• Connector B: SMA Male

• Impedance: 50 Ohms

• Frequency Range: DC to 6 GHz

• VSWR: ≤ 1.25

• Conductor: Copper Clad Aluminum (CCA)

• Shielding: Aluminum Foil + 95% Tinned Copper Braid

• Jacket Material: UV Resistant PE

• Operating Temperature: -40°C to +85°C

• Available Length Options: 1 Meter, 5 Meter, 10 Meter, 15 Meter, 20 Meter, 25 Meter, 30 Meter

---

🟢 Extended Compatible Devices:

Wireless Access Points, RP TNC Antennas, SMA Interface Devices, WiFi Bridges, RF Test Equipment, Ham Radios, Base Station Modules, Embedded Communication Boards, Network Routers, IoT Transmitters, External Wireless Antennas, Point-to-Point RF Links

---

🟢 Warranty Information:

6 Months Warranty – Quality Assured by NETBOON
Every unit is tested and inspected for reliability and backed by our performance warranty.

---
