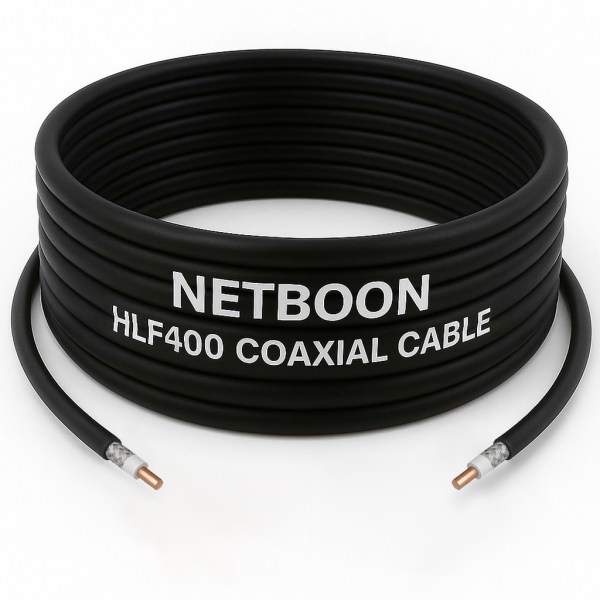

HLF 400 Low Loss Flexible RF Communications Coaxial Cable

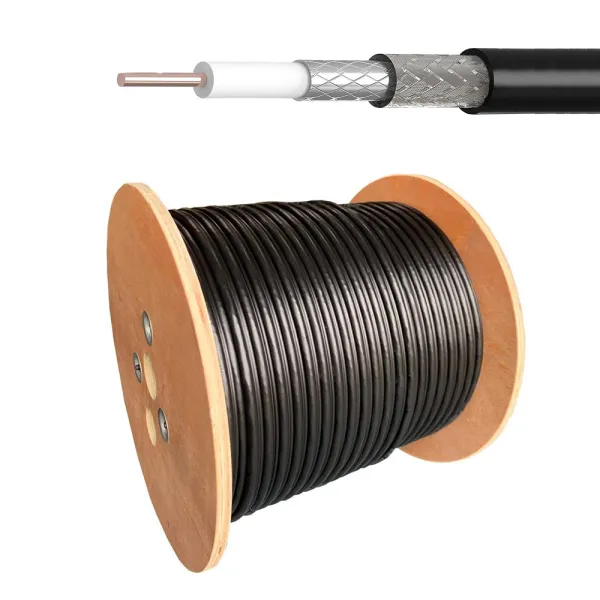

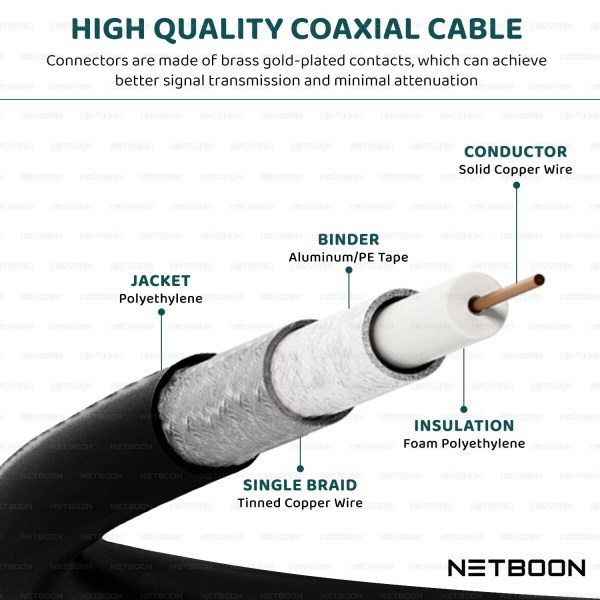

TOP NOTCH QUALITY: LMR 400 coaxial cable constructed with highly conductive anti-corrosive copper clad aluminium conductor at its core and UV proof double shield braided copper conductor, with a layer of dielectric foam coating in between them and lastly a weatherproof thick PVC jacket covering this whole setup. HLF 400 cable offers ultra low loss data transfer without any interruption which also makes it highly suitable for RF devices. Integrative coaxial cable offers significantly larger central conductor, which supports higher frequency devices in addition with long data runs. Braided copper coating protects the data from unwanted electromagnetic waves as well as provides a good flexibility to the cable. Foam dielectric layering provides comparatively better insulation than any other material. LMR400 extension cable also allows more versatile options and better signal strength when you place your antenna at highest point of your building.

COMPATIBILITY: Compatible with desktop PC, wireless mini PCI express, card adapter, PCI-E network, all helium miners, helium hotspot HNT miniers, bobcat, nebra RAK, wireless network, wireless USB adapter, wifi repeaters, cell phone boosters, RF that works under 50ohm impedance, Ham Radios, satellite communication antennas, RFID systems, military HF/UHF/VHF devices, security cameras, WLAN, IOT , Tlink, Dlink, Tenda, Huawei 3G 4G LTE routers, modems, local area networks like LPWAN LoRaWAN, GSM Landline phones, GLONASS GPS positioning and navigation systems, cable connections used in cryptocurrency mining like Litecoin, Bitcoin, also in scanner, printer cable connections, and many more devices.

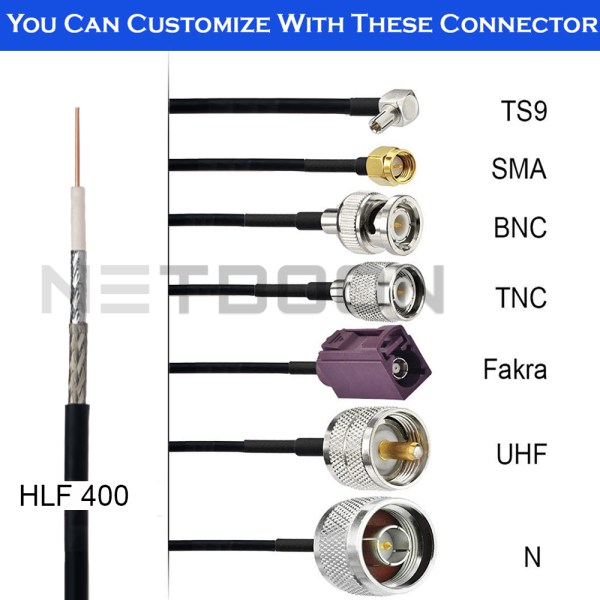

INSTALLATION: Connect the end terminals of HLF/LMR400 cable with your device with the help of connectors provided over there and then place it nicely. For more details please reach us at+91-9893014112.

ELECTRICAL PARAMETERS
Velocity- 80%
Jacket Color- Black
Cable-HLF/LMR 400
Flexibility- Standard
Impedance- 50±1 ohm
Dielectric Material- Foam PE
Maximum Frequency- 8.8 GHz
Jacket Material- PE (Polyethylene)
Lightning Protection – DC Ground
Installation Temperature: -40°~+85°
Operational Temperature: -40°~+60°
Storage Temperature Range: -70°~+85°
Operating Frequency Band- 1– 8800 MHz
Environment Friendly-  ROHS Compliance
Outer Shielding Material- Tinned Copper Braid
Inner Conductor Material- Copper

WARRANTY: 6 months manufacturing warranty. For any queries please reach us at +91-6266758816 or +91-9303369506

NOTE: Cable length and quantity will be delivered according to your requirements, please mention your requirement details on whatsapp or call us at+91-9893014112. Above all, please feel free to contact us for any query.
