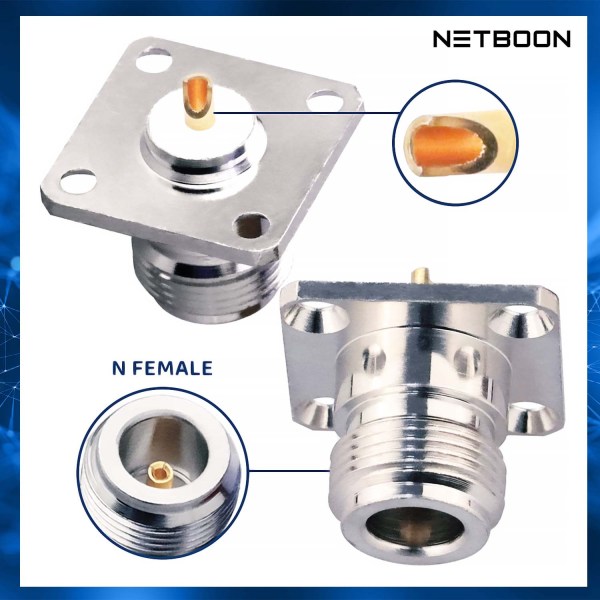

N Female 4-Hole Flange Panel Mount RF Connector, 50 Ohm, High-Performance – PACK OF 2

The N Female 4-Hole Flange Panel Chassis Mount Connector is a high-performance RF connector designed for applications requiring reliable and precise signal transmission. With a frequency range of DC to 6GHz and a low VSWR of ≤1.15, this connector ensures optimal performance across a wide range of frequencies. The connector features a durable nickel-plated brass body, PTFE Teflon insulator for excellent dielectric properties, and a solder-type contact termination for secure connections. Its rugged construction is built to withstand over 500 mating cycles, making it ideal for demanding environments in telecommunications, broadcasting, military, and industrial applications.

---

Key Features:

1. Wide Frequency Range: Supports DC to 6GHz for versatile applications.
2. Low VSWR: Ensures signal integrity with a VSWR of ≤1.15.
3. Durable Design: Withstands ≥500 mating cycles for long-lasting performance.
4. Secure Connection: Features solder-type contact termination for reliability.
5. High Dielectric Resistance: ≥5000M ohm for superior insulation and safety.
6. Robust Construction: Nickel-plated brass body resists corrosion and wear.
7. Precise Impedance: 50-ohm characteristic impedance ensures efficient signal transfer.
8. Compact and Convenient: 4-hole flange panel design for easy chassis mounting.

---

PACKAGE ITEMS: 2×N Female 4 Holes Flange connector.

ELECTRICAL PARAMETERS
VSWR: ≤1.15
Insulator: (PTFE) Teflon
Body Termination: Clamp
Frequency Range: DC-6GHz
Contact Termination: Solder
Connector Gender: N-Female
Durability: Mating cycles ≥500
Operating Frequency: 6000MHz
Characteristic impedance: 50ohm
Body material: Nickel-plated brass
Dielectric Resistance: ≥5000M ohm
Operating Temperature: -55ºC∼ +155ºC
Contact Resistance: Center contact ≤1m ohm
Dielectric Withstanding Voltage: ≥2500V RMS
Environmental Friendly: ROHS compliance (Pb free)

---

WARRANTY: 6months manufacturing warranty.

---
