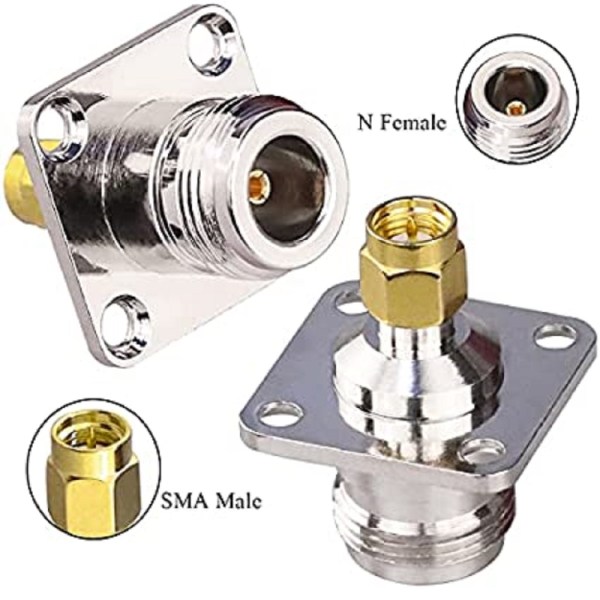

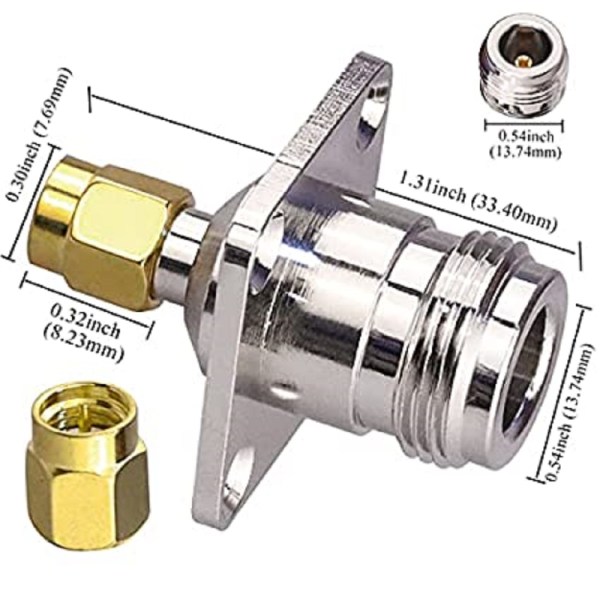

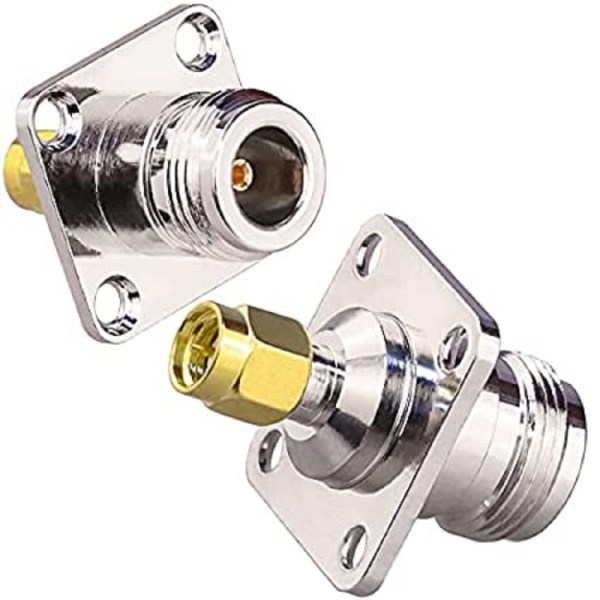

The N Female to SMA Male Four-Hole Flange Panel Mount RF Coaxial Adapter is a precision-engineered connector designed for robust and high-performance RF communication systems. With a secure 4-hole flange for panel mounting, this adapter ensures a firm and vibration-resistant connection—ideal for RF enclosures, wireless modules, test setups, and antenna integrations.
Manufactured from high-grade materials like nickel-plated brass or stainless steel, this adapter supports frequencies up to 6 GHz with 50 Ohm impedance, ensuring low signal loss and consistent connectivity. It’s compatible with a wide range of coaxial cables, antennas, and RF modules, making it a must-have for professionals and hobbyists alike.
✅ Technical Specifications:
Specification
Details
Connector A
N-Type Female
Connector B
SMA Male
Mount Type
4-Hole Flange Panel Mount
Impedance
50 Ohms
Frequency Range
DC to 6 GHz
Material
Brass with Nickel Plating / Stainless Steel
VSWR
≤ 1.3 (Typical)
Temperature Range
-65°C to +165°C
Applications
RF Systems, Antennas, IoT, Test Gear
Pack Quantity
2 as specified
✅ Key Features (Bullet Points):
📡 RF Adapter – Converts N-Type Female to SMA Male for seamless connection between RF systems.
🔩 4-Hole Flange Mount – Securely fastens to RF panels or enclosures.
📶 High-Frequency Support – Operates efficiently from DC to 6 GHz.
🧲 Low VSWR – Ensures minimal signal reflection and optimal performance.
🛠 Durable Construction – Built with quality materials for long-term use.
🎛 Universal Compatibility – Suitable for antennas, signal boosters, RF test gear, and wireless modules.
📦 Easy Installation – Designed for chassis, bulkhead, or rackmount setups.
✅ Use Cases / Applications:
RF Communication Panels
Antenna Signal Routing
Test Benches & Equipment
Ham Radio & Wireless Projects
IoT Hardware Integration
Signal Distribution Boxes
Warranty:
🛡 6-Month Manufacturing Warranty – Ensures high-quality performance and durability
