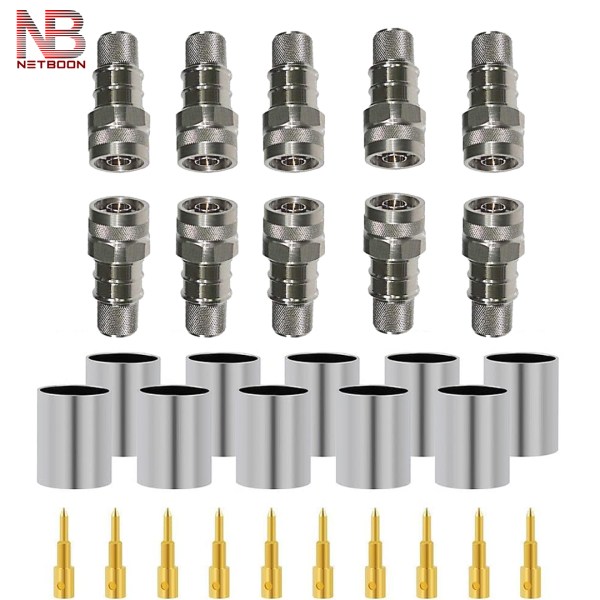

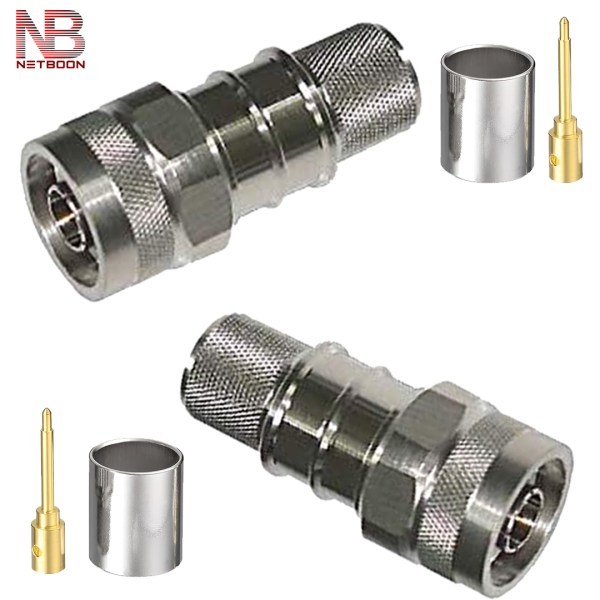

N Male Connector for LMR600 Feeder Coaxial Cable – PACK OF 2
299₹ – 1099₹
PREMIUM CONNECTOR: N male crimp connector is manufactured from weatherproof, durable, anti-corrosive nickel plated brass along with gold plated brass central pin. Crimp connector supports a wide range of bandwidth upto 6GHz with a very minimum data loss. Crimp coaxial cable connector also features Teflon (PTFE) dielectric insulation coating material which offers insulation resistance of approximately ≥5000M ohm. Premium quality connector is solid highly reliable and specially manufactured for industrial standards machinery and cables. Brass body helps in amplifying the data transmission rate and hence enhances the performance of compatible RF devices. Round rings and gold plated brass central pin tightly hold the RF cable to strengthen its connectivity. Crimp RF connector operates under wide temperature ranges to ensure proper operation. Connector can be used to create custom-length cables for multiple needs. N-Male crimp connector is compatible with LMR400 coaxial cable.
INSTALLATION: Remove the outer jacket of LMR600 coax cable with help of a cutter and firmly join the connector with it. Lastly, press the cable & connector join with a crimping tool. For any assist please reach us at+91-9893014112.
PACKAGE: 1×N-Male crimp connector pair.
ELECTRICAL & MECHANICAL PARAMETERS
VSWR: ≤1.15
Insulator: PTFE (Teflon)
Connector Gender: N-male
Frequency Range: DC-6GHz
Durability: Mating cycles ≥500
Characteristic impedance: 50ohm
Body material: Nickel-plated brass
Operating Frequency: 0-6000MHz
Centre conductor: Phosphor copper
Dielectric Resistance: ≥5000M ohm
Compatible: Compatible with LMR600
Operating Temperature: -40ºC∼ +85ºC
Environmental Friendly: RoHS compliance
Contact Resistance: Center contact ≤1m ohm
Dielectric Withstanding Voltage: ≥1000V RMS, 50Hz at sea level.
WARRANTY: 6 months manufacturing warranty. For any queries please call or Whatsapp us at+91-9893014112.
| PACK OF | 2, 4, 6, 8, 10 |
|---|---|
| VSWR | ≤1.15 |
| Insulator | PTFE (Teflon) |
| Connector Gender | N-male |
| Frequency Range | DC-6GHz |
| Durability | Mating cycles ≥500 |
| Characteristic impedance | 50ohm |
| Body material | Nickel-plated brass |
| Operating Frequency | 0-6000MHz |
| Centre conductor | Phosphor copper |
| Dielectric Resistance | ≥5000M ohm |
| Compatible | Compatible with LMR600 |
| Operating Temperature | -40ºC∼ +85ºC |
| Environmental Friendly | RoHS compliance |
| Contact Resistance | Center contact ≤1m ohm |
| Dielectric Withstanding Voltage | ≥1000V RMS, 50Hz at sea level. |
| Warranty | 6 Months |
| Keywords | N Male Connector for LMR600 Feeder Coaxial Cable, premium quality, nickel plated brass, gold plated brass pin, minimum losses, highly durable, 11GHz wide bandwidth, industrial standard connector, PTFE dielectric insulation, |
