N Male Crimp Connector for LMR200 Cable – PACK OF 2
299₹ – 1099₹
PREMIUM QUALITY: N-Male crimp is manufactured from high-grade reliable nickel plated brass material and gold plated pin. Connector is highly durable and can withstand adverse climatic conditions. Connector is basically used to connect coaxial cable end terminals. You can build and create the custom length of coaxial cables for multiple uses, with the help of this premium connector. Connector can handle up to 6GHz wideband frequency range. N-type connector can be easily connected with a lot of RF devices. Weatherproof connectors are light in weight. Insulator material of this connector is polytetrafluoroethylene (PTFE). Connector features rotating rings to tightly hold the cables. N-male crimp connector is compatible with LMR 200 cable.

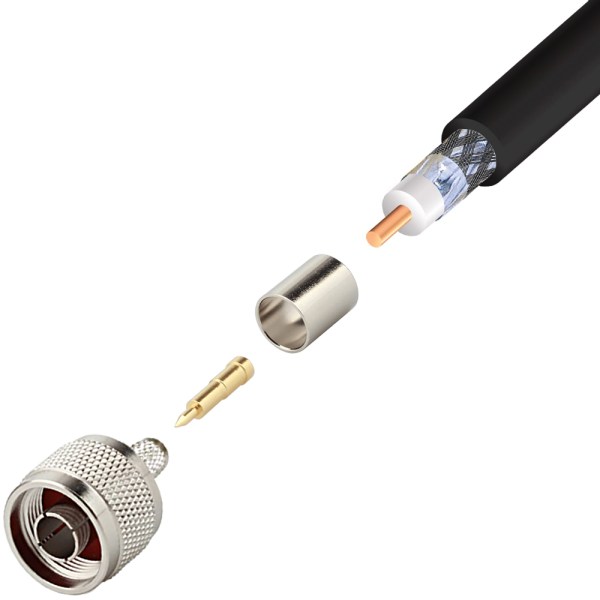

INSTALLATION: Gently remove the outer coat of LMR200 cable and fix the N-Male connector with the inner conductor core. For any assistance please reach us at+91=9893014112.
PACKAGE ITEMS: 1×N-Male crimp connector.
ELECTRICAL & MECHANICAL PARAMETERS
VSWR: ≤1.15
Insulator: PTFE (Teflon)
Connector Gender: N-male
Frequency Range: DC-6GHz
0-3GHZ Attenuation: ≤ 0.1dB
0-6GHZ Attenuation: ≤ 0.12dB
Durability: Mating cycles ≥500
Characteristic impedance: 50ohm
Body material: Nickel-plated brass
Dielectric Resistance: ≥5000M ohm
Operating Frequency: 0-6000MHz
Centre conductor: Phosphor copper
Operating Temperature: -40ºC∼ +85ºC
Environmental Friendly: RoHS compliance
Contact Resistance: Center contact ≤1m ohm

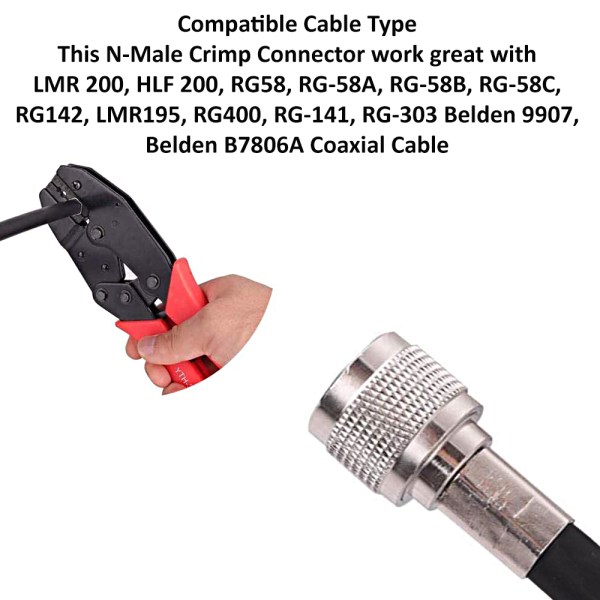

Compatible: Compatible with LMR200 cable
Dielectric Withstanding Voltage: ≥1000V RMS, 50Hz at sea level
WARRANTY: 6months manufacturing warranty. For any queries please reach us at+91-9893014112.
| PACK OF | 2, 4, 6, 8, 10 |
|---|---|
| VSWR: | ≤1.15 |
| Insulator | PTFE (Teflon) |
| Connector Gender | N-male |
| Frequency Range | DC-6GHz |
| 0-3GHZ Attenuation | ≤ 0.1dB |
| 0-6GHZ Attenuation | ≤ 0.12dB |
| Durability | Mating cycles ≥500 |
| Characteristic impedance | 50ohm |
| Body material | Nickel-plated brass |
| Dielectric Resistance | ≥5000M ohm |
| Operating Frequency | 0-6000MHz |
| Centre conductor | Phosphor copper |
| Operating Temperature | -40ºC∼ +85ºC |
| Environmental Friendly | RoHS compliance |
| Contact Resistance | Center contact ≤1m ohm |
| Compatible | Compatible with LMR200 cable |
| Dielectric Withstanding Voltage | ≥1000V RMS, 50Hz at sea level |
| Keywords | Premium quality, ultra-durable, N-Male Crimp Connector for LMR200 cable, 6GHz wideband frequency support, nickel-plated brass material, tight joint, minimum VSWR, high end, cost effective, long lasting, |
