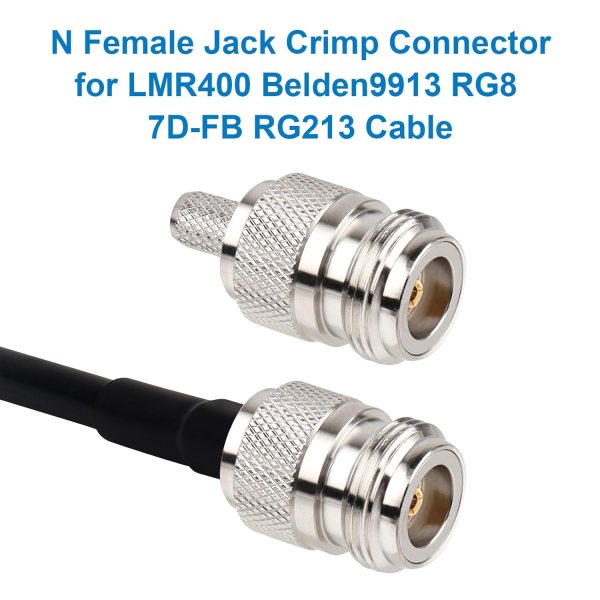

N Female Crimp Connector for LMR400 Coaxial Cable – PACK OF 2
299₹ – 1099₹

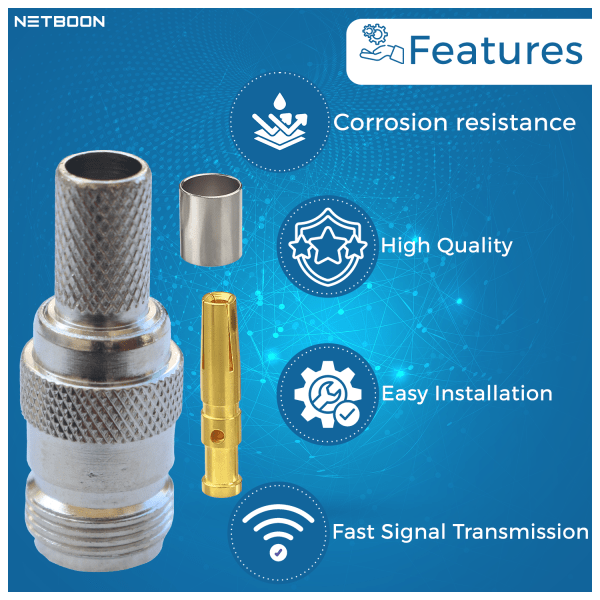

PREMIUM CONNECTOR: N female crimp connector for LMR400 cable is manufactured from weatherproof, anti-corrosive nickel plated brass metal. Connector features a gold-plated brass central pin. Connector offers 6GHz wide bandwidth range with very low data loss during transmission. Crimp connector is well protected with Teflon (PTFE) dielectric insulation coating which provides ≥5000M ohm insulation resistance. Highly versatile N-Female coax cable connector is reliable for both indoor & outdoor uses. N-Female jack connector is specially designed for industrial standard cables & machinery. Brass alloy supports a faster data transfer rate as well as amplifies the performance of RF devices. Round circular rings and gold plated central pin needs to be soldered on to coax cable’s center conductor for better connectivity. Connector operates under -40ºC∼ +85ºC wide temperature range. Crimp connectors are used to create custom-length cables for diverse uses. The n-Female crimp connector is compatible with LMR400, HLF400, RG213, RG8 coaxial cable, and wireless devices.

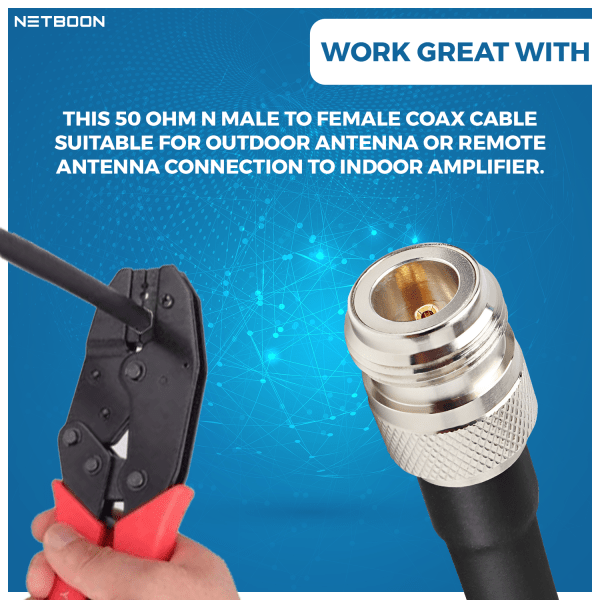

INSTALLATION: Gently, cut out the outer jacket of coaxial cable and join the connector with it. After that heat shrink the terminal joint of cable and connector. For any queries please call/ Whatsapp at+91-9893014112.
PACKAGE ITEMS: 1×Pair of N-Female crimp connector.
ELECTRICAL PARAMETERS
VSWR: ≤1.15
Insulator: Teflon (PTFE)
Frequency Range: DC-6GHz
Connector Gender: N-Female
Durability: Mating cycles ≥500
Characteristic impedance: 50ohm
Body material: Nickel-plated brass
Operating Frequency: 0-6000MHz
Crimp Ferrule Material: Copper-alloy
Dielectric Resistance: ≥5000M ohm
Compatible: Compatible with LMR400
Operating Temperature: -40ºC∼ +85ºC
Contact Resistance: Center contact ≤1m ohm
Dielectric Withstanding Voltage: ≥2500V RMS
Environmental Friendly: RoHS compliance (Pb free)
WARRANTY: 6 months manufacturing warranty. For any queries please call or Whatsapp us at+91-9893014112.
| PACK OF | 2, 4, 6, 8, 10 |
|---|---|
| VSWR | ≤1.15 |
| Insulator | Polytetrafluoroethylene(PTFE) |
| Frequency Range | DC-6GHz |
| Connector Gender | N-Female |
| Durability | Mating cycles ≥500 |
| Characteristic impedance | 50ohm |
| Body material | Nickel-plated brass |
| Operating Frequency | 0-6000MHz |
| Crimp Ferrule Material | Copper-alloy |
| Dielectric Resistance | ≥5000M ohm |
| Compatible | Compatible with LMR400 |
| Operating Temperature | -40ºC∼ +85ºC |
| Contact Resistance | Center contact ≤1m ohm |
| Dielectric Withstanding Voltage | ≥2500V RMS |
| Environmental Friendly | RoHS compliance (Pb free) |
| Keywords | N Female Crimp Connector for LMR400, RG8, RG213, HLF400 Coaxial Cable, 6GHz bandwidth, industrial grade Nickel plated brass metal, teflon insulation, weatherproof indoor outdoor, high data transmission and amplification rate, custom length cables, best price. |
