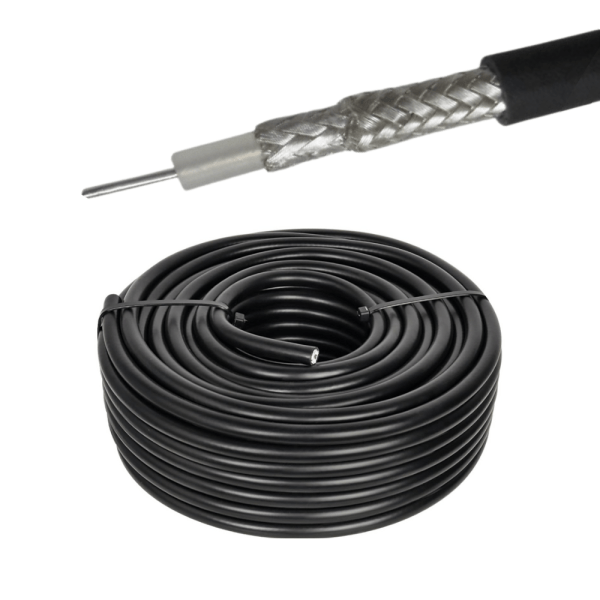

RG 223 Extension Coaxial Cable for Radio Applications
NETBOON is top manufacturer amongst many RF application companies in India since 1999. RG 223 flexible cable is manufactured using high grade material, reliable and flexible to use for longer time in higher atmosphere. Coaxial cable offer easy transmission of signals with no loss in signal transmission. Cable structure is totally covered with Polyvinyl Chloride (PVC) jacket to protect the cable from mechanical, moisture, and chemical issues. Extension cable has good electrical properties and excellent mechanical strength. Ultra low loss cable has high conductivity, flexibility, easy to install for 50 ohm applicable devices.

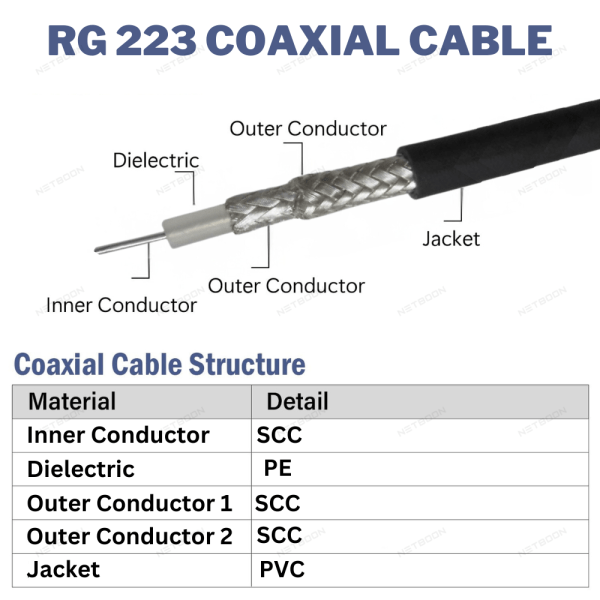

SOLID LAYERING– RG 223 coaxial cable is constructed using high premium quality material ; Inner Conductor-SCC | Dielectric- Solid Polyethylene | Outer Conductor 1-Shielded coaxial cable | Outer Conductor 2- Shielded coaxial cable | Jacket- PVC (Black)
SOLID SIGNAL TRANSMISSION- Radio frequency cable provides faster data transmission without any interference between indoor/outdoor applications.
COMPATIBLE FOR- Low Loss RG 223 cable is applicable with personal computer, Wi-Fi radios external antenna, electronic measuring instrument, wireless adapter, RF radio, GSM Wi-Fi antenna, analyzer, routers, RF applications, LTE hotspot, wireless adapter, GPS antenna, security cameras, magnetic mount antenna, CB radio handheld & amateur radios, module, VHF/UHF applications, broadcast, telecom, microwave applications, digital communication system, wireless video surveillance DVR recorder and many more suitable devices.
PACKAGE INCLUDES– RG 223 Cable (you can select cable length according to your requirement)

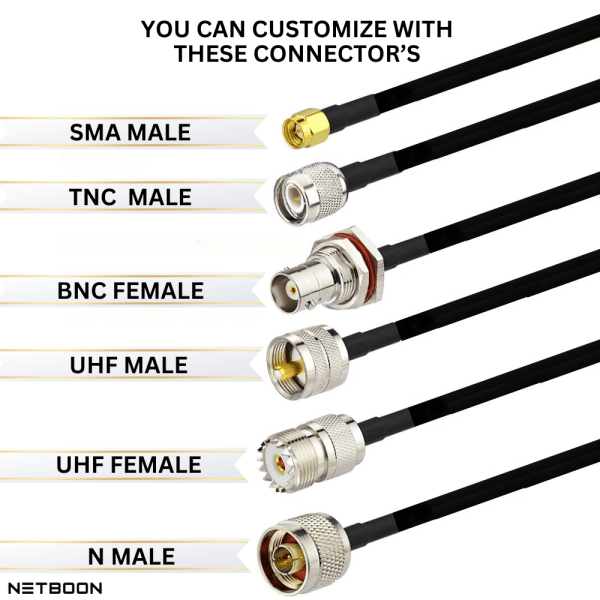

NOTE- We also provide customization service, if you want you can contact us on our customer care number at +91-6266758816 or +91-9303369506
ELECTRICAL DATA-
Jacket- Black PVC
Impedance-50 ohms
Insulation Material: PE
Inner Conductor: SCC
Outer Conductor 1: SCC
Outer Conductor 2: SCC (Shielded coaxial cable)
Operating Temperature range- -25° to +85°C
| Jacket | Black PVC |
|---|---|
| Impedance | 50 ohms |
| Insulation Material | PE |
| Inner Conductor | SCC |
| Outer Conductor 1 | SCC |
| Outer Conductor 2 | SCC (Shielded coaxial cable) |
| Operating Temperature range | -25° to +85°C |
Only logged in customers who have purchased this product may leave a review.
Related products
-
Read moreQUALITY AND PERFORMANCE: RG-316 coaxial cable is manufactured from temperature resistant silver plated copper clad steel central conductor, also with a PTFE insulation layering over it. Silver plated copper braid guards the inner conductor from unwanted electromagnetic wave interference also it provides good flexibility to the cable for highly space constraint places. Weatherproof FEP jacket …
-
Sale!
Select options This product has multiple variants. The options may be chosen on the product pageRG 316 Coaxial Cable is constructed using inner copper silver plated conductor, solid PTFE insulation with silver copper braided outer conductor and weatherproof FEP (Polyvinyl Chloride) jacket. It’s FEP jacket allows us to use it in any weather conditions without any problem for long time. Pure copper wire cable easily transmits signals without any inconvenience …
-
Read moreNETBOON is dynamic supplier engaged in manufacturing, supplying, trading and exporting wide varieties of coaxial cables. RG 141 cable has excellent electrical properties, good mechanical strength and high transmission capacity. It is such a flexible cable which can be easily bent in tight spaces without any inconvenience and has good shielding effect. Low loss cable …
-

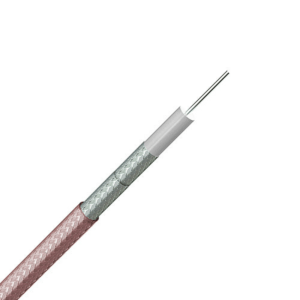

Read moreNETBOON is highly engaged in manufacturing, supplying, trading, exporting, importing a wide array of coaxial cables. RG 142 cable is a construction of premium quality copper layers i.e. silver plated copper conductor with PE insulation, two outer tinned silver copper braided shielding and fluorinated ethylene propylene jacket. FEP jacket layer of ultra low loss coaxial …
