The NETBOON RG174 RF Low Loss Cable with MCX Male to N Male Right Angle Connector is engineered for dependable RF connectivity where flexibility and compact routing are essential. Built using RG174 lightweight coaxial cable, it supports stable transmission up to 3 GHz, ensuring consistent impedance and reliable signal flow for a wide range of RF communication systems.
The MCX Male connector offers a compact push-fit connection ideal for GPS receivers, embedded modules, and portable communication devices, while the N Male Right Angle connector provides a firm and secure connection in equipment requiring angled positioning, especially in confined installation areas.
Designed for antennas, RF test setups, IoT hardware, GPS modules, and wireless data devices, this cable ensures low signal attenuation, excellent shielding, and superior mechanical durability. Every NETBOON cable is professionally assembled and performance-tested to deliver long-lasting, interference-free connectivity.
🟢 Key Features:
MCX Male to N Male Right Angle Connector
Frequency Support: DC to 3 GHz
Impedance: 50 Ohm
RG174 Flexible Low-Loss Coaxial Cable
Lightweight, thin, and easy to route
Good shielding to minimize EMI & signal disturbance
Provides stable performance for RF, GPS, and IoT systems
Sturdy right-angle N connector for space-limited mounting
Ideal for testing, measurement, and embedded communication setups

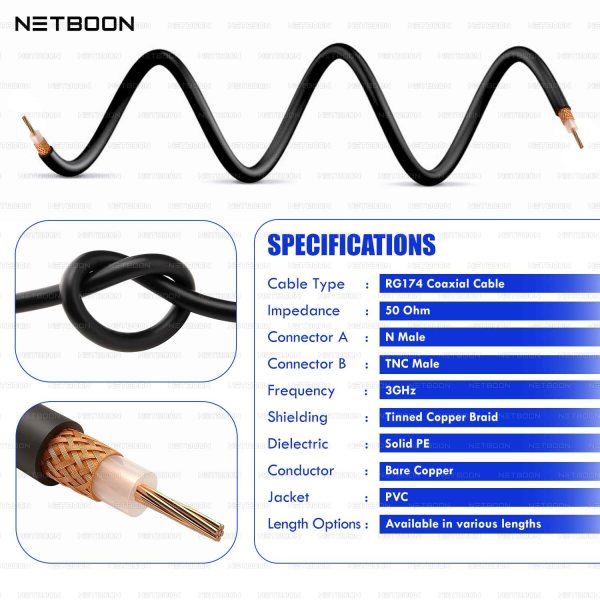

🟢 Technical & Mechanical Specifications:
Specification
Details
Product Name
NETBOON RG174 RF Coaxial Cable
Connector Type
MCX Male to N Male Right Angle
Impedance
50 Ohm
Frequency Range
DC – 3 GHz

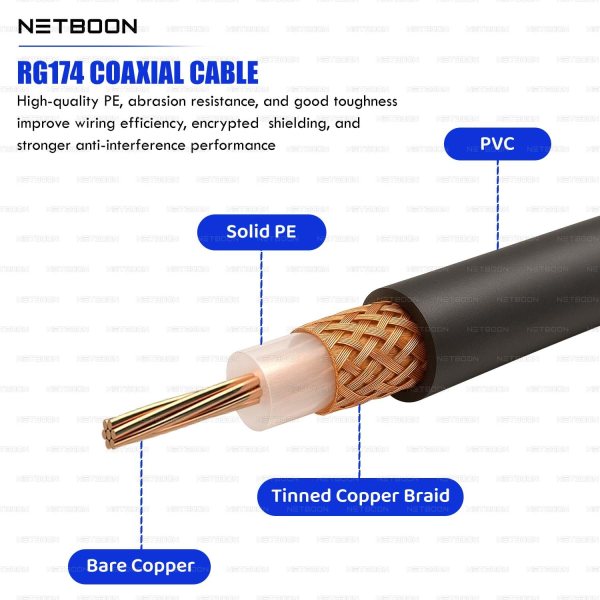

Cable Type
RG174 Low-Loss Flexible Coax
Inner Conductor
Copper-Clad Steel (CCS)
Shielding
Tinned Copper Braid + Dielectric Insulation
Outer Jacket
Flexible PVC
VSWR
≤ 1.5:1
Return Loss
≥ 18 dB
Operating Temperature
–40°C to +85°C
Connector Finish
Nickel-Plated Brass with Gold Center Pin
Applications
Antenna, GPS, RF Modules, IoT, Lab Testing
🟢 Extended Compatibility:
✅ GPS & GNSS Modules ✅ RF Transmitters & Receivers ✅ IoT Embedded Boards ✅ Antennas & Wireless Devices ✅ Test & Measurement Instruments ✅ Communication and Navigation Systems
🟢 Warranty Information:
6 Months Warranty – Quality Assured by NETBOON Each cable undergoes extensive quality checks for signal integrity, mechanical strength, and impedance accuracy. NETBOON guarantees dependable, long-lasting RF performance with full replacement support during the warranty period.
🟢 Bulk & OEM Inquiry:
Need custom length, OEM branding, or bulk order support? 📞 Call/WhatsApp: +91-6266758816 / +91-9303369506 📧 Email:netboon15@gmail.com NETBOON delivers customized RF cable assemblies tailored to industrial and commercial projects.
Related
Cable Length
15CM, 30CM, 1M, 2M, 5M
