The NETBOON RG174 RF Low Loss Cable with SMA Female Right Angle to N Female Bulkhead Connector is designed for users who need flexible routing, strong RF stability, and secure panel mounting in their antenna or communication systems. Built using high-flexibility RG174 coaxial cable, it ensures consistent signal flow, dependable impedance control, and reliable operation across DC to 3 GHz frequency range.
The SMA Female Right Angle connector provides a compact profile ideal for tight enclosures, RF modules, and embedded systems. The N Female Bulkhead connector offers a rugged, panel-mount design, making it suitable for outdoor antennas, radio equipment housings, networking cabinets, and industrial communication units. Both connectors feature nickel-plated brass bodies with gold-plated center pins for low contact resistance and long-term durability.
Perfect for antennas, routers, test setups, IoT devices, GNSS/GPS modules, and RF extension panels, this assembly ensures low VSWR, strong shielding, and stable connectivity even in challenging environments.
🟢 Key Features:
Connector Type: SMA Female Right Angle to N Female Bulkhead
Frequency Range: DC to 3 GHz
Impedance: 50 Ohm
Cable Type: RG174 Flexible Coax
Right-Angle SMA Design: Saves space in compact RF enclosures
Bulkhead N Female: Ideal for panel mounting and outdoor housings

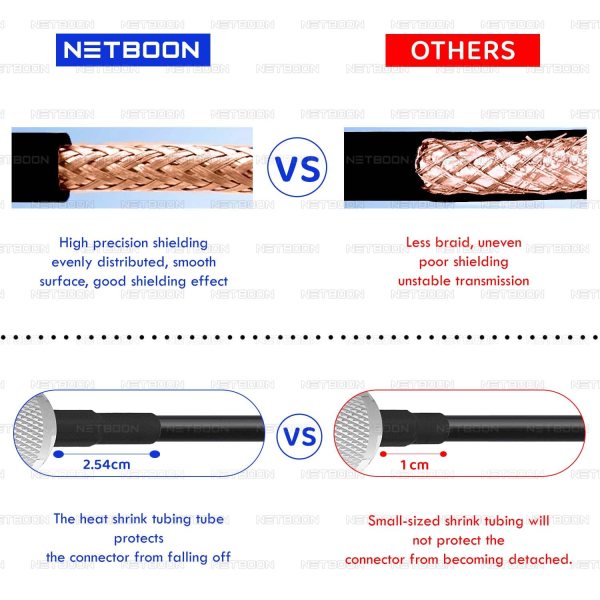

Excellent Shielding: Reduces signal interference and noise
Flexible & Lightweight: Easy cable routing without strain
Ideal for RF, antenna, and industrial communication systems

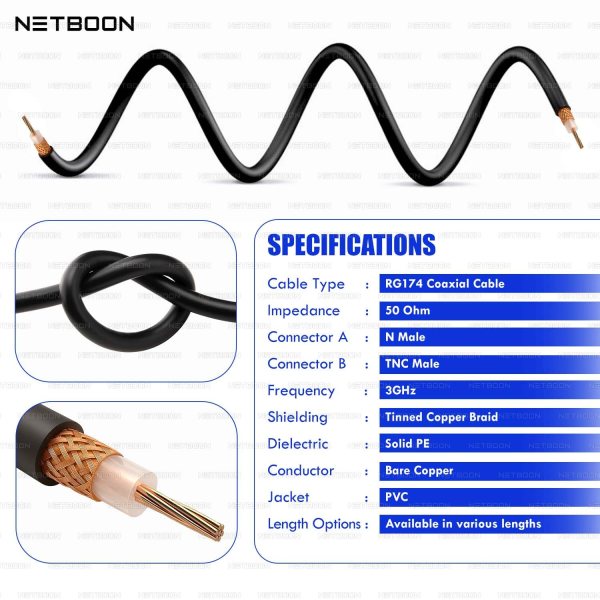

🟢 Technical & Mechanical Specifications:
Specification
Details
Product Name
NETBOON RG174 RF Low Loss Cable
Connector Type
SMA Female Right Angle to N Female Bulkhead
Impedance
50 Ohm
Frequency Range
DC – 3 GHz
Cable Type
RG174 Flexible Coaxial Cable
Inner Conductor
Copper-Clad Steel (CCS)
Shielding
Tinned Copper Braid + PE Dielectric
Outer Jacket
Black PVC, UV Resistant
VSWR
≤ 1.5:1
Return Loss
≥ 18 dB
Operating Temperature
–40°C to +85°C
Connector Material
Nickel-Plated Brass, Gold-Plated Pin
Applications
RF Modules, Antenna Panels, IoT Devices, GPS Systems
6 Months Warranty – Quality Assured by NETBOON Each cable undergoes rigorous inspection and performance testing for signal stability, shielding integrity, and connector durability. NETBOON ensures premium quality for professional RF applications.
🟢 Bulk & OEM Inquiry:
Need custom length or bulk orders for your RF project? 📞 Call/WhatsApp: +91-6266758816 / +91-9303369506 📧 Email:netboon15@gmail.com NETBOON provides OEM solutions and custom RF cable assemblies for industrial and commercial applications.
Related
Cable Length
15CM, 30CM, 1M, 2M, 5M
