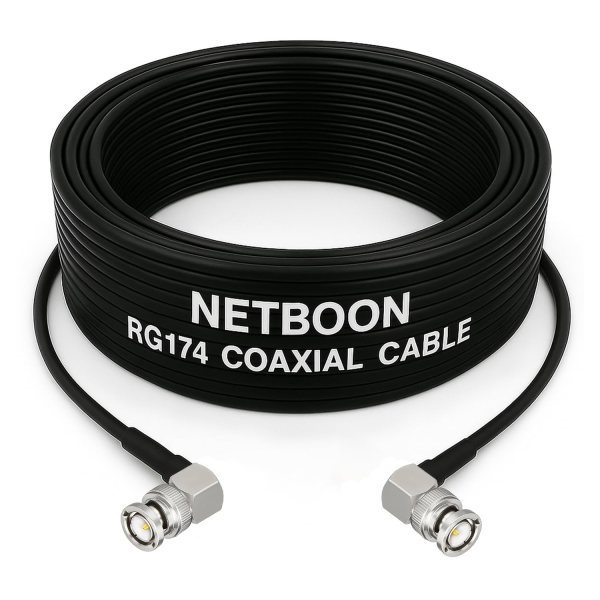

RG174 RF Coaxial Cable with BNC Male Right Angle to BNC Male Right Angle Connector | 50 Ohm Low Loss Flexible Cable up to 3 GHz for CCTV, Test Equipment & RF Systems
The NETBOON RG174 RF Coaxial Cable with BNC Male Right Angle to BNC Male Right Angle Connector is a compact, flexible, and high-performance RF cable designed for setups where tight spaces and angled connections are required. Built with a 50 Ohm impedance and supporting frequencies up to 3 GHz, it ensures stable, low-loss transmission suitable for CCTV systems, test benches, RF equipment, and communication modules.
The Right Angle BNC connectors provide strain relief, easy routing, and secure bayonet-style locking for vibration-free performance. Made using premium RG174 coax, the cable offers excellent shielding, flexibility, and reliable performance even in dense electronic environments.
🟢 Key Features:

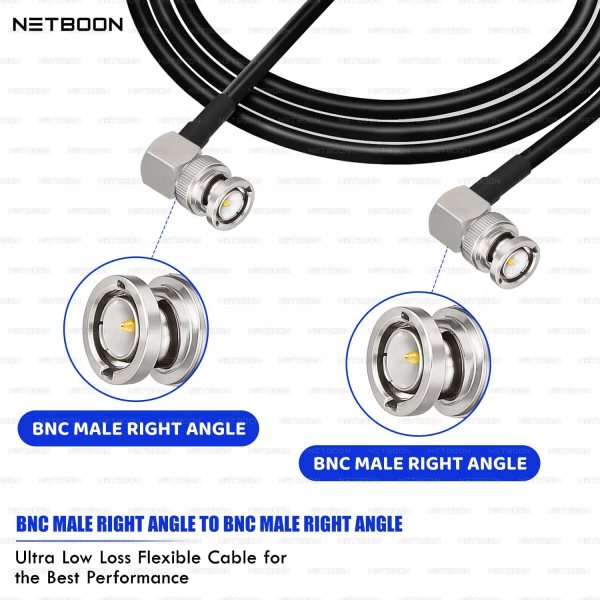

Connector Type: BNC Male Right Angle → BNC Male Right Angle
Impedance: 50 Ohm
Frequency Range: DC – 3 GHz
Cable Type: RG174 Flexible RF Cable
Low Loss Performance: Stable signal transfer with minimized attenuation
Right Angle Connectors: Ideal for compact spaces and cable management
Secure Locking: Bayonet-style BNC connection for stability
Flexible & Durable: Easy routing in tight installations
Applications: CCTV, DVR systems, RF testing, signal analyzers, radio modules, lab equipment
🟢 Technical Specifications:
Specification
Details
Product Name
NETBOON RG174 RF Coaxial Cable
Connector Type
BNC Male Right Angle to BNC Male Right Angle
Impedance
50 Ohm
Frequency Range
DC – 3 GHz
Cable Type
RG174 Coax
Inner Conductor
Copper-Clad Steel
Shielding
Tinned Copper Braid
Outer Jacket
Black PVC
VSWR
≤ 1.5:1
Return Loss
≥ 18 dB
Temperature Range
–40 °C to +85 °C
Connector Finish
Nickel-Plated Body, Gold-Plated Pin
Cable Length
Custom-made as per requirement
Use Case
CCTV, RF Labs, Test Equipment, Communication Systems
🟢 Extended Compatibility:
CCTV Cameras & DVR
Oscilloscopes & Signal Generators
RF Communication Boards
Antenna Systems
Test & Measurement Instruments
Video Transmission Modules
🟢 Warranty:
6-Month NETBOON Warranty All NETBOON cables undergo VSWR, continuity & quality checks. Replacement provided for manufacturing defects.
