The NETBOON RG174 RF Coaxial Cable with BNC Male Right Angle to N Female Bulkhead Connector is engineered for compact routing, stable RF transmission, and professional-grade signal quality up to 3 GHz. Built with RG174 flexible coax, it ensures low attenuation, consistent impedance, and excellent shielding—perfect for tight-space installations and portable RF equipment.
The BNC Male Right Angle connector offers a firm bayonet lock for secure attachment in constrained environments, while the N Female Bulkhead connector provides a robust panel-mount interface for antennas, enclosures, routers, RF boxes, and outdoor communication setups. Both connectors are crafted from nickel-plated brass with gold-plated pins, ensuring long-lasting conductivity and corrosion resistance.
Reliable, lightweight, and versatile, this cable is ideal for antenna systems, GPS modules, radio devices, test equipment, RF analyzers, IoT units, and wireless communication networks, providing stable performance in both indoor and outdoor conditions.
🟢 Key Features:
BNC Male Right Angle to N Female Bulkhead Connector
Frequency Support: DC to 3 GHz
Impedance: 50 Ohm
RG174 Flexible Coaxial Cable for Easy Routing
Secure BNC Bayonet Lock Mechanism
Strong N Female Bulkhead for Panel & Enclosure Mounting
Low Loss & Excellent RF Signal Stability
Shielded Construction for EMI/RFI Resistance
Ideal for RF, Antenna, and Wireless Communication Systems
🟢 Technical & Mechanical Specifications:
Specification
Details
Product Name
NETBOON RG174 RF Coaxial Cable
Connector Type
BNC Male Right Angle to N Female Bulkhead
Impedance
50 Ohm
Frequency Range
DC – 3 GHz
Cable Type
RG174 Flexible Coaxial Cable
Inner Conductor
Copper-Clad Steel (CCS)

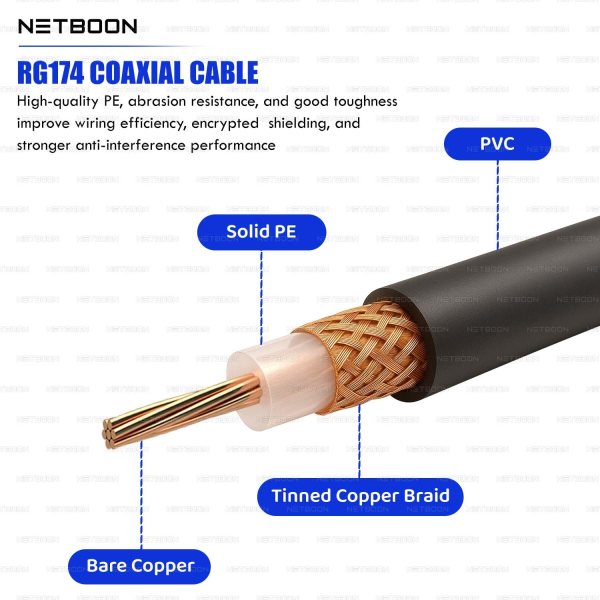

Shielding
Tinned Copper Braid + PE Dielectric
Cable Jacket
UV Resistant Flexible PVC
VSWR
≤ 1.5:1
Return Loss
≥ 18 dB
Operating Temperature
–40°C to +85°C
Connector Material
Nickel-Plated Brass with Gold Pin
Application
RF Panels, Antenna Systems, Wireless Devices, Test Labs
🟢 Extended Compatibility:
✅ RF Antennas & Base Stations ✅ Wireless Routers & RF Panels ✅ GPS & Navigation Modules ✅ Walkie-Talkie Systems (No boosters/blocked devices) ✅ Radio Communication & Testing Instruments ✅ IoT Gateways & Industrial Control Units ✅ RF Shield Boxes & Enclosure Mount Setups
🟢 Warranty Information:
6 Months Warranty – Quality Assured by NETBOON Every cable is thoroughly tested for continuity, signal accuracy & build strength. NETBOON ensures dependable, long-term RF performance with a warranty-backed replacement guarantee.
🟢 Bulk & OEM Inquiry:
Need custom lengths, connector combinations, or large quantity supply? 📞 Call/WhatsApp: +91-6266758816 / +91-9303369506 📧 Email:netboon15@gmail.com NETBOON offers OEM manufacturing, bulk production, and custom RF assembly solutions.
Related
Cable Length
15CM, 30CM, 1M, 2M, 5M
