Name: RG174 RF Coaxial Cable with BNC Male Right Angle to SMA Female Connector | Compact RF Link for Test, Antenna &amp; Communication Systems
SKU: NB-NEW-RG174-BNCMRA-TO-SMAF
Availability: InStock

RG174 RF Coaxial Cable with BNC Male Right Angle to SMA Female Connector | Compact RF Link for Test, Antenna & Communication Systems

Additional Offers

Flat 5% Off on Prepaid Order

Cable Length

Clear

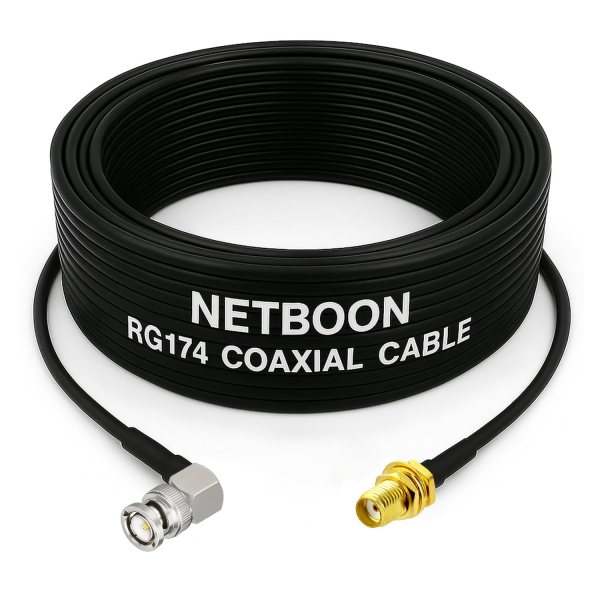

The NETBOON RG174 RF Coaxial Cable with BNC Male Right Angle to SMA Female Connector is engineered for stable RF performance, smooth signal flow, and flexible routing in compact or angled installations. Built using high-quality RG174 coaxial cable, it supports frequencies up to 3 GHz, delivering dependable performance with minimal interference.

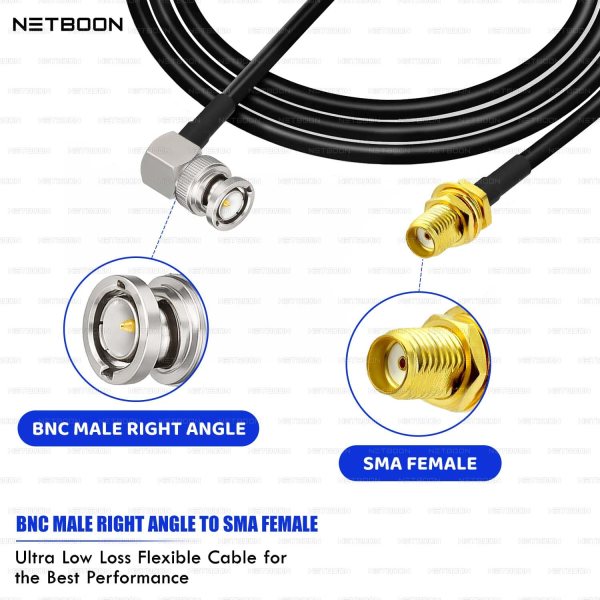

The BNC Male Right Angle connector ensures easy and secure locking in tight spaces, while the SMA Female connector provides a precise threaded interface for high-frequency RF devices. Both connectors are made from nickel-plated brass with gold-plated center contacts, offering enhanced durability, corrosion resistance, and strong electrical conductivity.

Lightweight, flexible, and ideal for lab setups, RF analyzers, antennas, wireless modules, IoT hardware, GPS devices, and test instruments, this cable guarantees reliable connectivity and stable RF transmission. Each NETBOON cable undergoes strict testing to ensure professional-grade performance.

🟢 Key Features:

BNC Male Right Angle to SMA Female Connector
Frequency Range: DC to 3 GHz
Impedance: 50 Ohm
Flexible RG174 Low-Loss Coaxial Cable
Right-Angle BNC for Space-Constrained Installations
Excellent Shielding to Reduce EMI/RFI
Lightweight and Easy to Route
Strong Connector Grip & Secure Locking Mechanism
Ideal for Test Equipment, RF Modules & Antenna Systems

🟢 Technical & Mechanical Specifications:

Specification	Details
Product Name	NETBOON RG174 RF Coaxial Cable
Connector Type	BNC Male Right Angle to SMA Female
Impedance	50 Ohm
Frequency Range	DC – 3 GHz
Cable Type	RG174 Flexible Coaxial Cable
Inner Conductor	Copper-Clad Steel (CCS)
Shielding	Tinned Copper Braid + Dielectric Layer
Jacket Material	UV Resistant PVC
VSWR	≤ 1.5:1
Return Loss	≥ 18 dB
Temperature Range	–40°C to +85°C
Connector Material	Nickel-Plated Brass with Gold-Plated Pin
Applications	Antennas, IoT Modules, GPS, RF Testing, Lab Instruments

🟢 Extended Compatibility:

✅ RF Test & Measurement Equipment
✅ Antenna & Receiver Installations
✅ IoT Gateways and Embedded Boards
✅ Wireless Communication Systems
✅ GPS/GNSS Devices
✅ Radio, CCTV & Broadcast Instruments

🟢 Warranty Information:

6 Months Warranty – Quality Assured by NETBOON
Each unit is fully tested and inspected to ensure stable RF performance, durability, and long service life. NETBOON guarantees reliable, high-quality RF connectivity for professional applications.

🟢 Bulk & OEM Inquiry:

Need custom lengths, bulk quantities, or OEM cable assemblies?
📞 Call/WhatsApp: +91-6266758816 / +91-9303369506
📧 Email: netboon15@gmail.com
NETBOON provides tailored RF solutions for industrial, telecom, and project-based requirements.
