RG174 RF Coaxial Cable with BNC Male Right Angle to SMA Male Connector | 50 Ohm Low Loss Flexible Cable for CCTV, RF Testing, Wi-Fi Modules & Communication Devices
The NETBOON RG174 RF Coaxial Cable with BNC Male Right Angle to SMA Male Connector is a precision-engineered RF patch cable designed for high-performance connectivity across CCTV systems, RF testing devices, antenna modules, wireless equipment, and communication boards.
Built using high-flexibility RG174 coax, this cable supports up to 3 GHz frequency, ensuring stable, low-loss signal transmission. The Right Angle BNC Male connector provides efficient routing in tight spaces, while the SMA Male connector ensures secure, threaded RF termination for reliable high-frequency performance.
Perfect for RF labs, IoT device testing, CCTV video interfacing, and wireless module integration, this cable is compliant with 50-ohm systems and crafted for long-lasting durability.
🟢 Key Features:

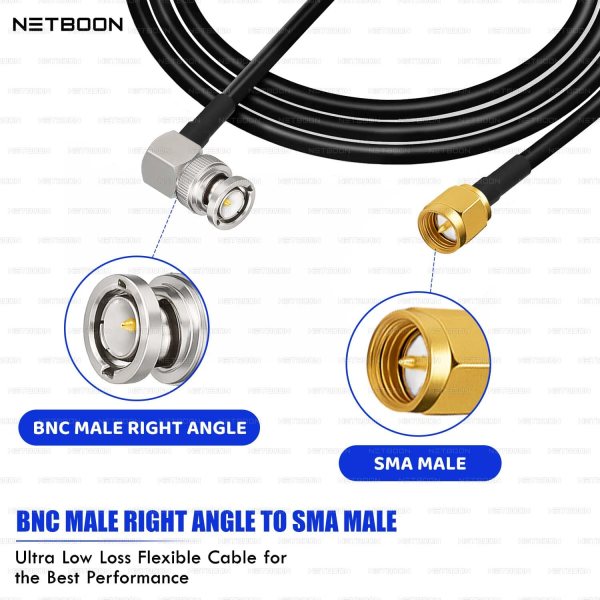

Connector Type: BNC Male Right Angle → SMA Male
Impedance: 50 Ohm
Frequency Range: DC – 3 GHz
Cable Type: RG174 Flexible RF Coax
Low Attenuation: Ensures clean and stable RF signal transfer
Right Angle BNC Connector: Ideal for installations with space constraints
Secure SMA Threaded Connector: Strong mechanical lock for high-frequency usage
Highly Flexible Cable: Suitable for bends, routing & compact enclosures
Applications: CCTV, RF modules, IoT boards, analyzers, test equipment, wireless systems
🟢 Technical Specifications:
Specification
Details
Product Name
NETBOON RG174 RF Coaxial Cable
Connector Type
BNC Male Right Angle to SMA Male
Impedance
50 Ohm
Frequency Range
DC – 3 GHz
Cable Type
RG174
Inner Conductor
Copper-Clad Steel
Shielding
Tinned Copper Braid
Jacket Material
Black PVC
VSWR
≤ 1.5:1
Return Loss
≥ 18 dB
Connector Plating
Nickel-Plated Body, Gold-Plated Center Pin
Temperature Range
–40 °C to +85 °C
Cable Length
Custom as per requirement
Usage
CCTV, RF Lab Testing, Antenna Lines, Wireless Boards, Radio Modules
🟢 Extended Compatibility:
CCTV DVR & Surveillance Systems
Wi-Fi / RF / IoT Modules
Signal Analyzers & RF Meters
Antenna Testing
Development Boards (SMA Interface)
Test & Measurement Equipment
🟢 Warranty:
6-Month NETBOON Warranty Every assembly is QC-tested for VSWR, continuity, and signal performance.
