The NETBOON RG174 RF Coaxial Cable with BNC Male Right Angle to TNC Female Bulkhead Connector is engineered for users who require compact connectivity, secure mounting, and stable RF performance up to 3 GHz. The RG174 cable delivers excellent flexibility, enabling easy routing around corners, panels, and tight enclosures without compromising signal quality.
The BNC Male Right Angle connector ensures a firm bayonet-style lock, ideal for quick and reliable coupling, while the TNC Female Bulkhead connector allows panel mounting, providing stable fixed-point installation for equipment racks, RF enclosures, devices, and project boxes. Both connectors are built from nickel-plated brass with gold-plated pins, ensuring enhanced conductivity and durability.
Perfect for antenna connections, RF testing equipment, communication modules, IoT hardware, and measuring instruments, this cable provides low signal loss, strong shielding, and dependable performance for professional, industrial, and hobby-grade RF setups. NETBOON ensures every assembly is tested for reliability, resulting in long-term stability and consistent RF output.
🟢 Key Features:
BNC Male Right Angle to TNC Female Bulkhead Connector
Frequency Range: DC to 3 GHz
Impedance: 50 Ohm
RG174 Flexible Low-Loss Coaxial Cable
Easy Panel Installation with TNC Bulkhead Design
Strong EMI/RFI Shielding for Clean Signal Transmission

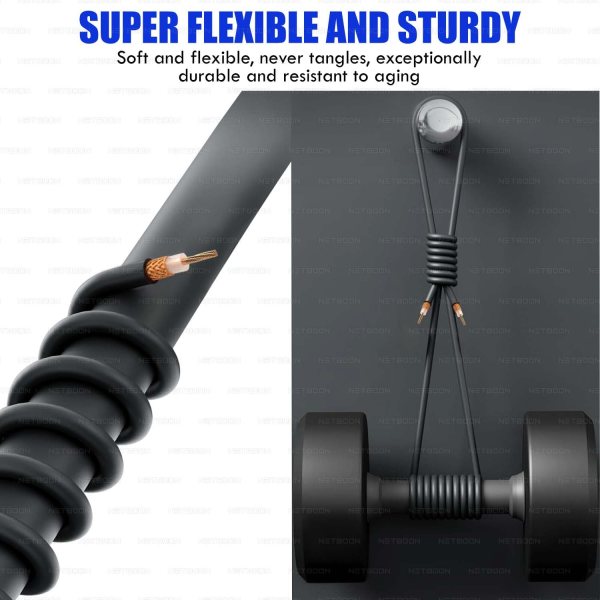

Lightweight, Slim & Highly Flexible Cable Build
Right-Angle Connector Ideal for Space-Constrained Areas
Suitable for RF Modules, Testing, Antenna and Communication Devices

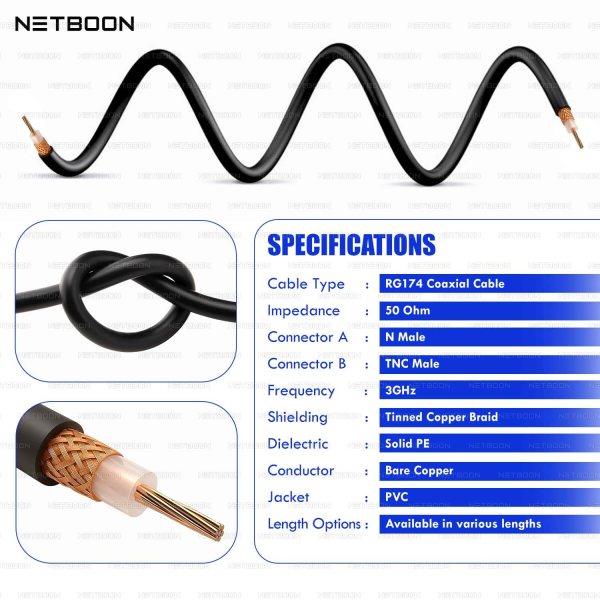

🟢 Technical & Mechanical Specifications:
Specification
Details
Product Name
NETBOON RG174 RF Coaxial Cable
Connector Type
BNC Male Right Angle to TNC Female Bulkhead
Impedance
50 Ohm
Frequency Range
DC – 3 GHz

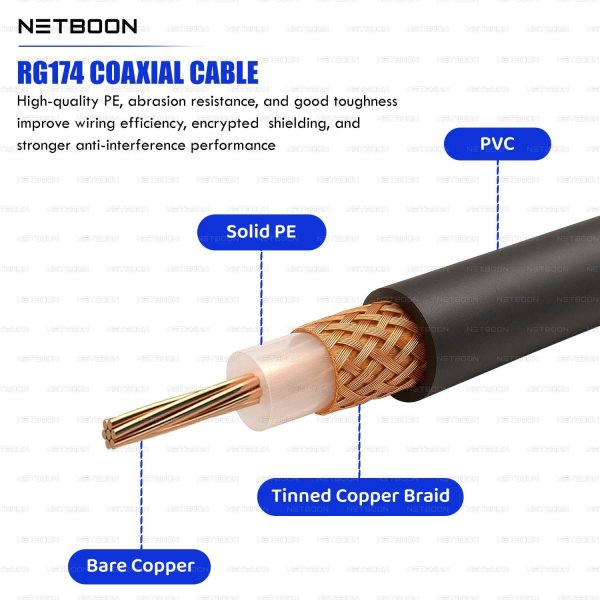

Cable Type
RG174 Flexible Coaxial Cable
Inner Conductor
Copper-Clad Steel (CCS)

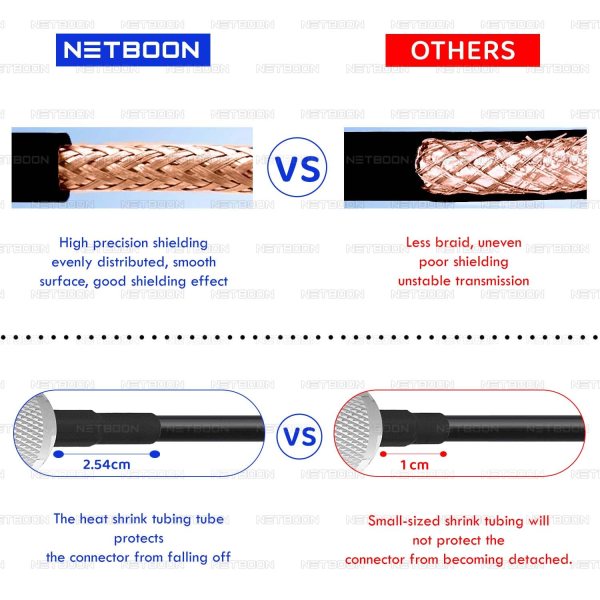

Shielding
Tinned Copper Braid + PE Dielectric
Outer Jacket
Flexible PVC (UV Resistant)
VSWR
≤ 1.5:1
Return Loss
≥ 18 dB
Operating Temperature
–40°C to +85°C
Connector Material
Nickel-Plated Brass with Gold Center Pin
Installation
Bulkhead Mount (Panel Mount)
Applications
RF Test Gear, IoT Devices, GPS, Wireless Systems
🟢 Extended Compatibility:
✅ RF Test Instruments & Signal Monitoring Devices ✅ Wi-Fi, Antenna & GPS Modules ✅ Communication Systems & Handheld Units ✅ IoT Boards, Embedded Projects & Prototyping ✅ Panel-Mounted RF Equipment ✅ Networking & Measurement Instruments
🟢 Warranty Information:
6 Months Warranty – Quality Assured by NETBOON Every cable is fully tested for continuity, loss, impedance stability, and durability. NETBOON guarantees high-performance RF connectivity backed by a reliable replacement warranty.
🟢 Bulk & OEM Inquiry:
Need custom length or large-quantity orders? NETBOON provides OEM manufacturing and specialized RF cable assemblies. 📞 Call/WhatsApp: +91-6266758816 / +91-9303369506 📧 Email:netboon15@gmail.com
Related
Cable Length
15CM, 30CM, 1M, 2M, 5M
