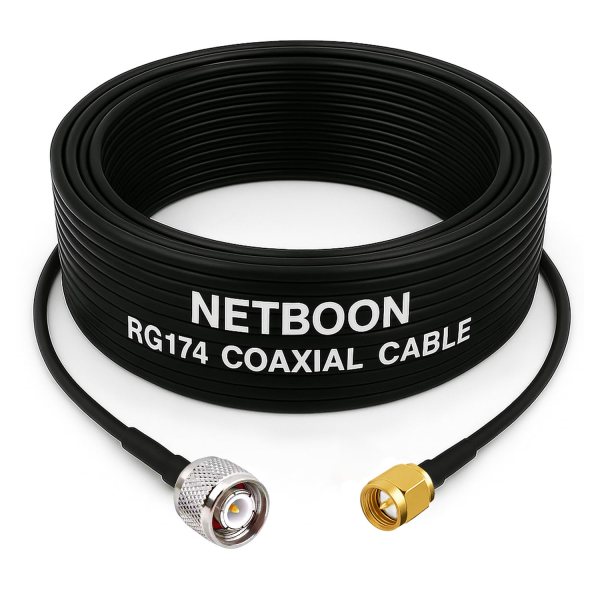

The NETBOON RG174 RF Coaxial Cable with TNC Male to SMA Male Connector is a premium-grade, low-loss cable assembly designed to deliver excellent signal stability and mechanical durability across RF and wireless applications. With an impedance of 50 Ohm and a frequency range from DC to 3 GHz, it supports seamless data transfer with minimal attenuation, ensuring high-quality performance for Wi-Fi routers, antennas, test benches, and IoT devices.
This cable features a TNC Male connector, known for its secure threaded interface, paired with an SMA Male connector, widely used for compact, high-frequency setups. The RG174 flexible coaxial cable enables smooth routing in tight spaces while maintaining low signal distortion. Constructed with nickel-plated connectors, gold-plated pins, and tinned copper braided shielding, it provides robust resistance to interference, corrosion, and physical stress — a reliable choice for both professional and industrial RF applications.
🟢 Key Features:

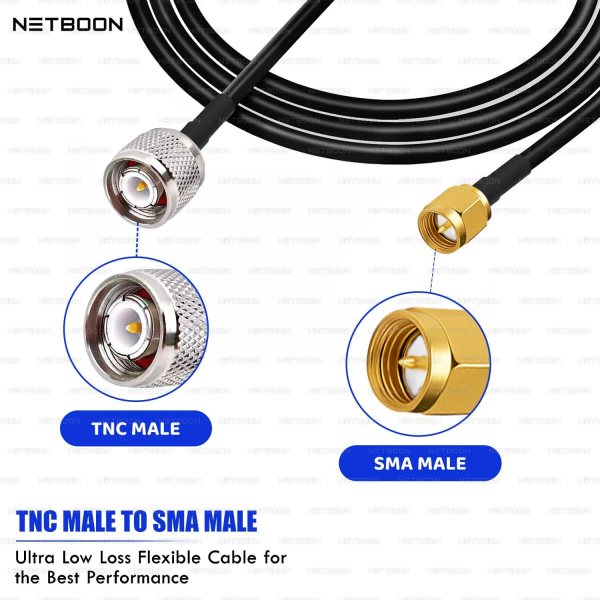

Connector Type: TNC Male → SMA Male
Impedance: 50 Ohm ± 2 Ω
Frequency Range: DC – 3 GHz
Cable Type: RG174 Flexible Coaxial Cable
Low Loss Design: Delivers high signal clarity and stability
Durable Connectors: Nickel-plated brass with gold-plated center pins
High Flexibility: Easy installation in compact areas
Applications: Antennas, Routers, RF Modules, Test Instruments

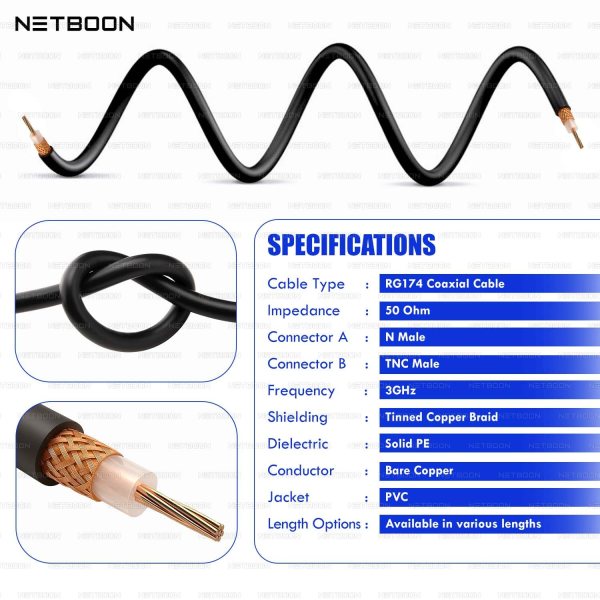

🟢 Technical & Mechanical Specifications:
Specification
Details
Product Name
NETBOON RG174 RF Coaxial Cable
Connector Type
TNC Male to SMA Male
Impedance
50 Ohm
Frequency Range
DC – 3 GHz
Cable Type
RG174 Coaxial
Inner Conductor
Copper-Clad Steel (CCS)
Shielding
Tinned Copper Braid
Jacket Material
Black PVC (Flexible, UV Resistant)
VSWR
≤ 1.5 : 1
Return Loss
≥ 18 dB
Connector Finish
Nickel-Plated with Gold-Plated Pin
Operating Temperature
–40 °C to +85 °C
Cable Length
Customizable (on request)
Typical Use
Antenna Extension, IoT Connectivity, RF Testing
🟢 Extended Compatibility:
✅ Wi-Fi Routers & Network Devices ✅ Antennas & Base Stations ✅ IoT Gateways & Embedded Systems ✅ RF Test & Measurement Equipment ✅ GPS Modules & Communication Devices
🟢 Warranty Information:
6 Months Warranty – Quality Assured by NETBOON Every cable is individually tested for impedance accuracy, insertion loss, and continuity to ensure consistent RF performance. Backed by NETBOON’s 6-month replacement warranty, guaranteeing reliability and durability.
🟢 Bulk & OEM Inquiry:
Need custom length or bulk orders for your RF project? 📞 Call/WhatsApp: +91-6266758816 / +91-9303369506 📧 Email:netboon15@gmail.com NETBOON provides custom RF cable assemblies tailored for telecom, IoT, and lab instrumentation requirements.
Related
Cable Length
15CM, 30CM, 1M, 2M, 5M
