The NETBOON RG174 RF Low Loss Cable with BNC Female to SMA Female Right Angle Connector is engineered for professionals who require compact routing, stable RF transmission, and reliable connectivity up to 3 GHz. Built with the highly flexible RG174 coaxial cable, it delivers dependable performance in portable test kits, communication systems, RF modules, and antenna setups.
The BNC Female connector ensures secure bayonet-style locking, while the SMA Female Right Angle connector offers a compact profile ideal for installations where space is limited. Constructed using nickel-plated brass with gold-plated center interfaces, the cable maintains excellent conductivity, reduced insertion loss, and robust corrosion resistance.
This assembly is suitable for lab testing, RF analyzers, GPS units, IoT devices, handheld radios, and data acquisition modules. With strong shielding against EMI and consistent 50 Ohm impedance, it guarantees clean signal flow, minimal interference, and long-lasting field reliability—all backed by NETBOON’s quality assurance.
🟢 Key Features:
Connector Type: BNC Female to SMA Female Right Angle
Frequency Range: DC to 3 GHz
Impedance: 50 Ohm
Cable Type: RG174 Flexible RF Low Loss Cable
Compact Right-Angle SMA Connector: Ideal for tight device enclosures
Secure BNC Locking Mechanism: Stable connection for test equipment

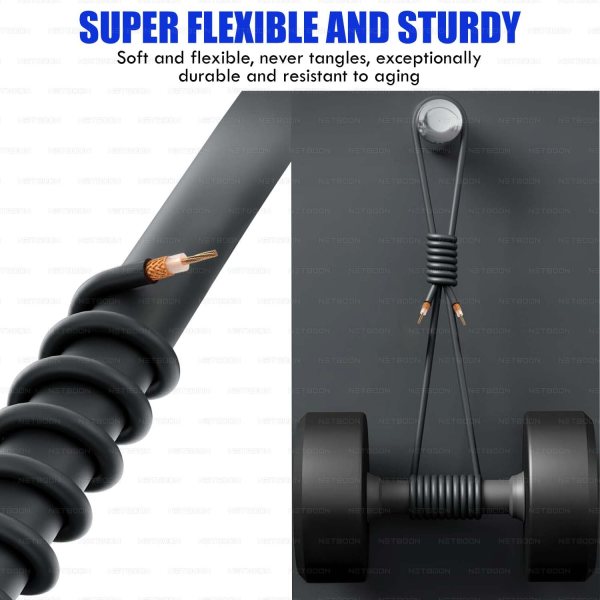

Lightweight & Ultra-Flexible Design
Good Shielding: Reduces EMI/RFI interference
Ideal for Test Instruments, RF Modules & Antenna Systems
🟢 Technical & Mechanical Specifications:
Specification
Details
Product Name
NETBOON RG174 RF Low Loss Cable
Connector Type
BNC Female to SMA Female Right Angle
Impedance
50 Ohm
Frequency Range
DC – 3 GHz
Cable Type
RG174 Flexible Coaxial Cable
Inner Conductor
Copper-Clad Steel (CCS)
Shielding
Tinned Copper Braid + PE Dielectric
Jacket Material
Flexible UV-Resistant PVC
VSWR
≤ 1.5:1
Return Loss
≥ 18 dB
Operating Temperature
–40°C to +85°C
Connector Finish
Nickel-Plated Brass, Gold-Plated Pin
Applications
RF Testing, IoT, Antenna Systems, GPS, Communication Devices
🟢 Extended Compatibility:
✅ RF Test Benches & Measurement Devices ✅ Antenna & Receiver Modules ✅ IoT & Embedded Wireless Boards ✅ GPS & Tracking Equipment ✅ Frequency Counters & Analyzers ✅ Lab, R&D, and Communication Projects
🟢 Warranty Information:
6 Months Warranty – Quality Assured by NETBOON Every unit is inspected for signal continuity, connector strength, and RF stability. NETBOON ensures superior quality and dependable field performance backed by a replacement warranty.
🟢 Bulk & OEM Inquiry:
Need custom lengths, special connectors, or bulk manufacturing? 📞 Call/WhatsApp: +91-6266758816 / +91-9303369506 📧 Email:netboon15@gmail.com NETBOON supports OEM production, custom assemblies, and large-scale RF solutions.
Related
Cable Length
15CM, 30CM, 1M, 2M, 5M
