The NETBOON RG178 Cable Assembly with UFL/IPEX to SMA Male Connector is a professional-grade RF solution designed for compact, high-frequency applications. This premium cable is engineered with ultra-thin RG178 coaxial cable, offering flexibility, durability, and minimal signal loss even in demanding electronic and wireless setups.

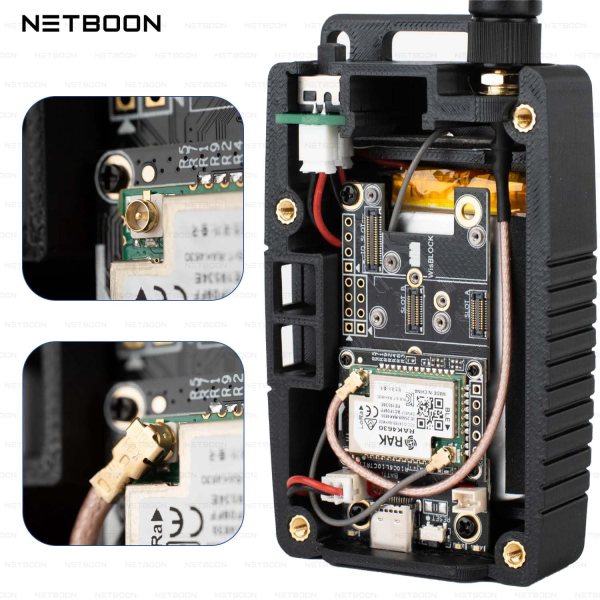

Equipped with a UFL/IPEX connector on one end and a SMA Male connector on the other, this assembly is ideal for applications requiring seamless connection between embedded IoT modules, development boards, WiFi cards, GPS receivers, and communication devices. The precision-engineered connectors ensure a secure fit and stable RF transmission with minimal VSWR.

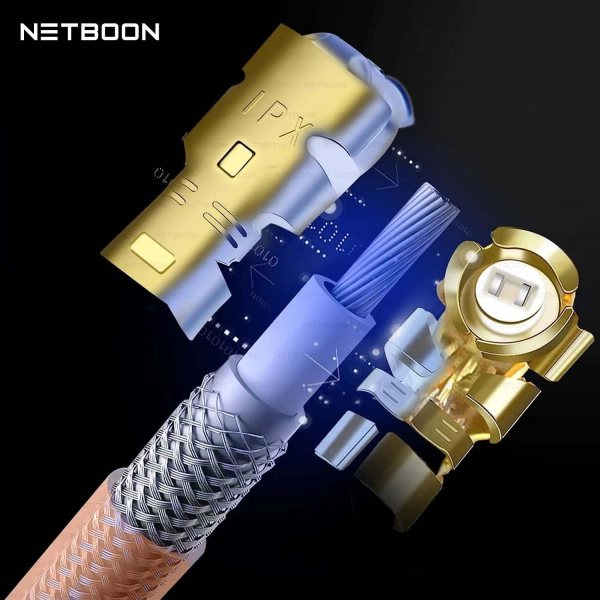

The RG178 cable is constructed with a silver-coated copper-clad steel conductor, fluoropolymer dielectric insulation, and tinned copper braid shielding, which together provide excellent resistance to interference, mechanical stress, and high operating frequencies. The FEP outer jacket is heat-resistant and provides flexibility in tight installation spaces, making it perfect for embedded and portable applications.
With support for frequencies up to 7 GHz, this assembly is highly reliable for modern wireless communication systems including IoT, M2M, GNSS, WiFi 2.4/5 GHz, Bluetooth, and test instrumentation setups.
🟢 Key Features:
-
✅ UFL/IPEX to SMA Male Connector Configuration
-
✅ Ultra-Thin Flexible RG178 Coaxial Cable
-
✅ Frequency Range: DC to 7 GHz
-
✅ High-Performance Shielding Against Interference
-
✅ Durable Heat-Resistant FEP Jacket
-
✅ Ideal for IoT, WiFi, GNSS, and Embedded Systems
🟢 Technical & Mechanical Specifications:
-
Cable Type: RG178 Low Loss RF Coaxial Cable
-
Connector A: UFL/IPEX
-
Connector B: SMA Male
-
Impedance: 50 Ohms
-
Frequency Range: DC to 7 GHz
-
VSWR: ≤ 1.5
-
Conductor: Silver-Coated Copper-Clad Steel
-
Shielding: Tinned Copper Braid
-
Dielectric: Fluoropolymer Insulation
-
Outer Jacket: FEP (Fluorinated Ethylene Propylene)
-
Temperature Range: -40°C to +85°C
-
Available Length Options: 15 CM, 30 CM
🟢 Compatible Devices:
IoT Modules, WiFi Cards, Bluetooth Devices, GPS/GNSS Receivers, Embedded Boards, Development Kits, Wireless Routers, RF Testing Instruments, Communication Systems
🟢 Warranty Information:
6 Months Warranty – Quality Assured by NETBOON
Each cable undergoes strict quality checks to guarantee reliable performance and long service life.
🟢 Bulk & OEM Inquiry:
Need custom length or bulk orders for your RF project?
📞 Call/WhatsApp: +91-6266758816, +91-9303369506
📧 Email: netboon15@gmail.com
