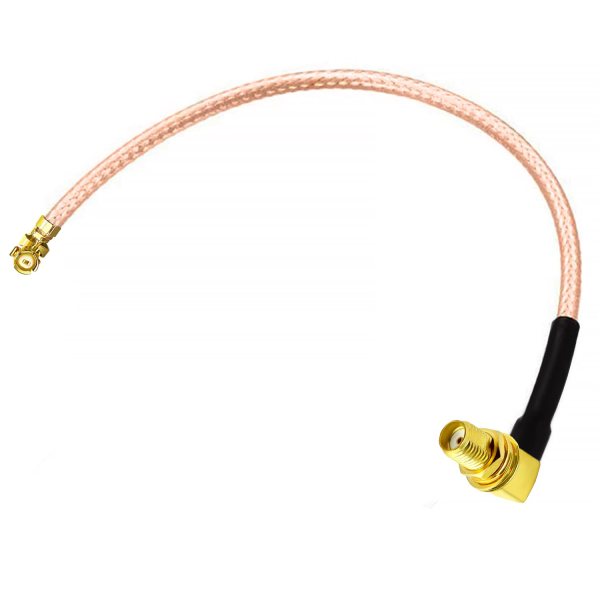

NETBOON RG178 Cable with UFL/IPEX to SMA Female Right Angle Connector | Ultra-Thin Low Loss RF Coaxial Cable for IoT, GPS, WiFi & Embedded Devices

The NETBOON RG178 Cable with UFL/IPEX to SMA Female Right Angle Connector is a compact, high-performance RF cable assembly designed for advanced wireless communication and embedded device applications. Built with RG178 ultra-thin coaxial cable, this assembly offers flexibility, durability, and excellent electrical performance in high-frequency environments.

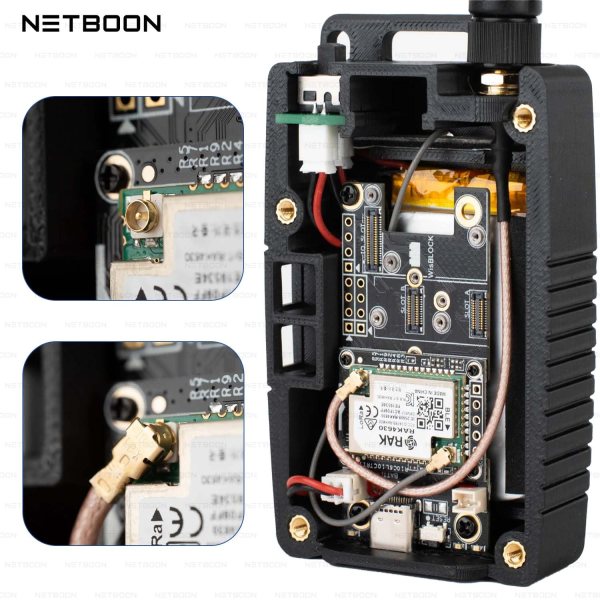

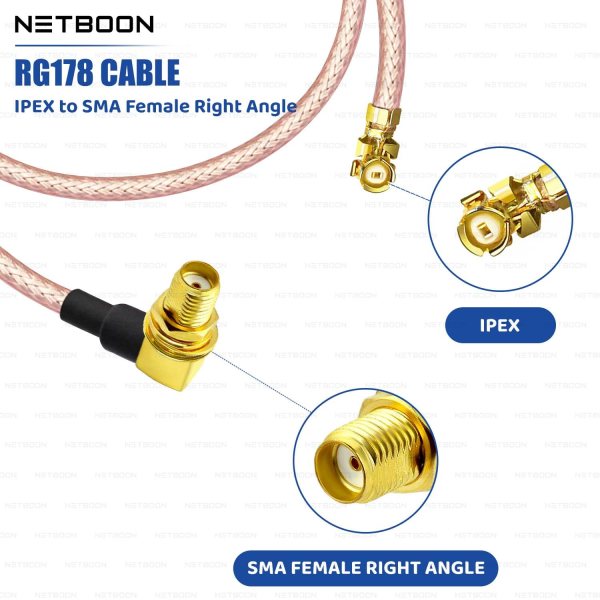

One end of the assembly features a UFL/IPEX connector, commonly used in IoT modules, WiFi cards, and GPS receivers, while the other end is equipped with a SMA Female Right Angle connector for secure attachment to antennas, boards, or RF equipment. The right-angle design helps save space and allows easy integration into tight enclosures, ensuring reliable connectivity where straight connectors may not fit.

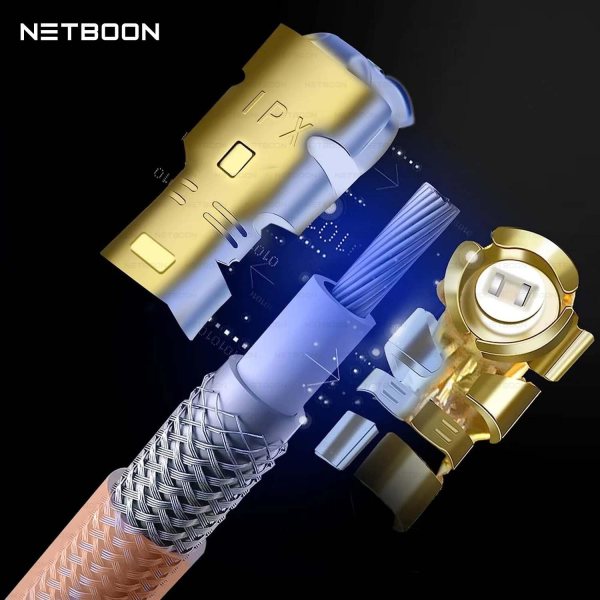

The RG178 cable is engineered with a silver-coated copper-clad steel conductor, fluoropolymer dielectric insulation, and tinned copper braid shielding for superior signal transmission and resistance to electromagnetic interference. The FEP jacket enhances heat resistance, chemical durability, and flexibility, making it ideal for both indoor and portable wireless devices.

Supporting frequencies up to 7 GHz, this assembly is an excellent solution for modern wireless technologies including WiFi (2.4/5 GHz), GPS/GNSS, Bluetooth, IoT/M2M modules, and test equipment.

---

🟢 Key Features:

• ✅ UFL/IPEX to SMA Female Right Angle Connector

• ✅ Space-Saving Right Angle SMA Design

• ✅ Ultra-Thin Flexible RG178 Coaxial Cable

• ✅ Frequency Range: DC to 7 GHz

• ✅ High-Performance Shielding Against Interference

• ✅ Durable Heat-Resistant FEP Jacket

• ✅ Ideal for IoT, WiFi, GPS/GNSS, and Embedded Applications

---

🟢 Technical & Mechanical Specifications:

• Cable Type: RG178 Low Loss RF Coaxial Cable

• Connector A: UFL/IPEX

• Connector B: SMA Female Right Angle

• Impedance: 50 Ohms

• Frequency Range: DC to 7 GHz

• VSWR: ≤ 1.5

• Conductor: Silver-Coated Copper-Clad Steel

• Shielding: Tinned Copper Braid

• Dielectric: Fluoropolymer Insulation

• Outer Jacket: FEP (Fluorinated Ethylene Propylene)

• Temperature Range: -40°C to +85°C

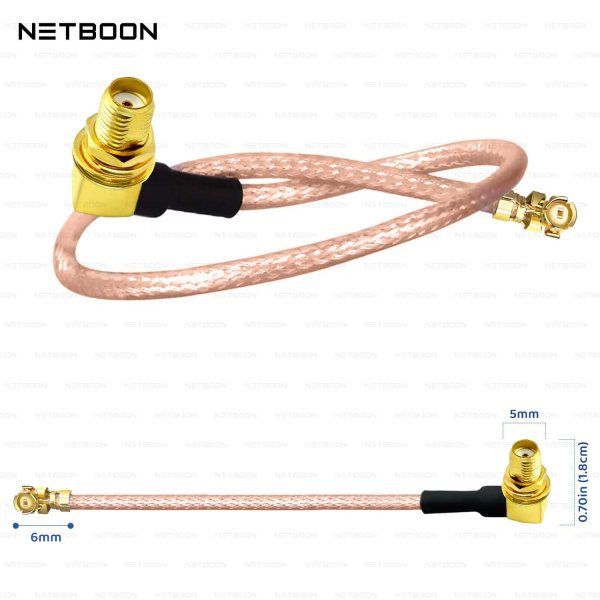

• Available Length Options: 15 CM, 30 CM

---

🟢 Compatible Devices:

IoT Modules, WiFi Cards, Bluetooth Devices, GPS/GNSS Receivers, Embedded Boards, Development Kits, Wireless Routers, RF Testing Instruments, Communication Systems

---

🟢 Warranty Information:

6 Months Warranty – Quality Assured by NETBOON
Each unit is manufactured under strict quality control standards and undergoes rigorous testing for performance and reliability.

---
