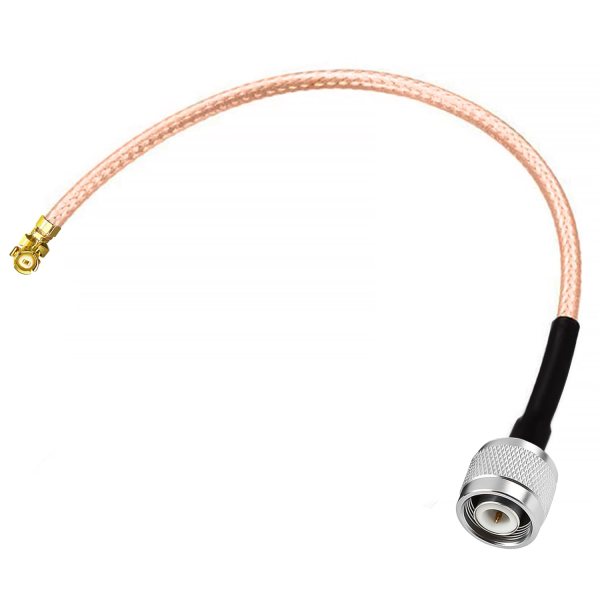

RG178 Cable with UFL/IPEX to TNC Male Connector | Flexible Low Loss RF Coaxial Cable for IoT, WiFi, GPS & Embedded Devices

The NETBOON RG178 Cable Assembly with UFL/IPEX to TNC Male Connector is a high-quality RF solution designed for compact, high-frequency applications. Constructed with ultra-thin RG178 coaxial cable, it provides exceptional flexibility, minimal signal loss, and reliable RF performance in demanding environments.

This assembly features a UFL/IPEX connector on one end and a TNC Male connector on the other, making it ideal for connecting internal wireless modules, IoT devices, embedded boards, WiFi cards, GPS receivers, and communication systems. The connectors are precisely engineered for a secure fit and stable transmission, ensuring minimal VSWR.

The RG178 coaxial cable uses a silver-coated copper-clad steel conductor, fluoropolymer dielectric, and tinned copper braid shielding, delivering excellent protection against interference, mechanical stress, and high-frequency signals. The FEP outer jacket is heat-resistant and flexible, suitable for tight or embedded installations.

Supporting frequencies up to 7 GHz, this assembly is perfect for IoT, WiFi 2.4/5 GHz, Bluetooth, GNSS, M2M communication, and RF testing applications. NETBOON guarantees strict quality checks on every unit for durability, signal integrity, and consistent performance.

---

🟢 Key Features:

• ✅ UFL/IPEX to TNC Male Connector Configuration

• ✅ Ultra-Thin, Flexible RG178 Coaxial Cable

• ✅ Frequency Range: DC to 7 GHz

• ✅ High Shielding Efficiency Against Interference

• ✅ Heat-Resistant FEP Outer Jacket

• ✅ Ideal for IoT Modules, WiFi, GNSS, and Embedded Systems

---

🟢 Technical & Mechanical Specifications:

• Cable Type: RG178 Low Loss Coaxial Cable

• Connector A: UFL/IPEX

• Connector B: TNC Male

• Impedance: 50 Ohms

• Frequency Range: DC to 7 GHz

• VSWR: ≤ 1.5

• Conductor: Silver-Coated Copper-Clad Steel

• Shielding: Tinned Copper Braid

• Dielectric: Fluoropolymer Insulation

• Outer Jacket: FEP (Fluorinated Ethylene Propylene)

• Temperature Range: -40°C to +85°C

• Available Length Options: 15 CM, 30 CM

---

🟢 Compatible Devices:

IoT Modules, WiFi Routers, Embedded Boards, GPS/GNSS Receivers, Bluetooth Devices, Wireless Development Kits, Communication Systems, RF Test Equipment

---

🟢 Warranty Information:

6 Months Warranty – Quality Assured by NETBOON
Every unit is QC tested to guarantee reliable RF performance and long-term durability.

---
