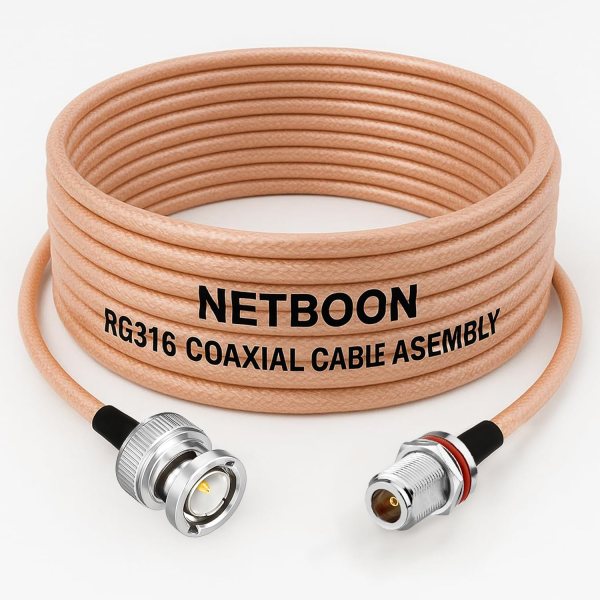

RG316 Coaxial Cable Assembly | BNC Male to N Female Bulkhead Connector | Premium RF Patch Cable

The NETBOON RG316 Coaxial Cable Assembly with BNC Male to N Female Bulkhead Connector is a high-quality RF cable designed for precision signal transmission across laboratory testing, RF analyzers, telecom modules, instrumentation, and industrial wireless systems. Manufactured with a silver-plated conductor, PTFE dielectric, and dual-shield construction, this RG316 assembly provides exceptional flexibility, low attenuation, and enhanced EMI protection.
The BNC Male connector allows quick-connect functionality for lab equipment, scopes, analyzers, and RF modules, while the N Female Bulkhead connector supports secure panel mounting for indoor and outdoor enclosures. Ideal for environments requiring stable, high-frequency RF performance, strong shielding, and long-lasting durability. Frequency range up to 6 GHz.

---

✅ Technical & Mechanical Specifications:

• Cable Type: High-Frequency RG316 Coaxial Cable

• Connector-A: BNC Male (Quick-connect, nickel-plated)

• Connector-B: N Female Bulkhead (Panel mount, nickel-plated)

• Impedance: 50 Ohms

• Operating Frequency: Supports RF systems up to 6 GHz

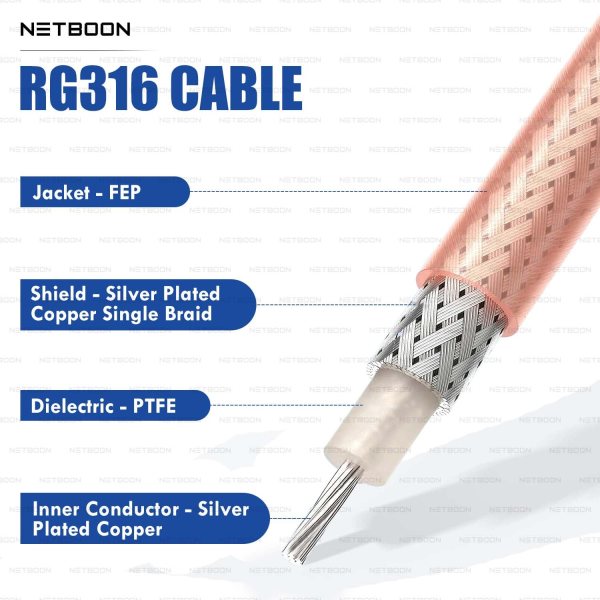

• Dielectric: PTFE for consistent electrical stability

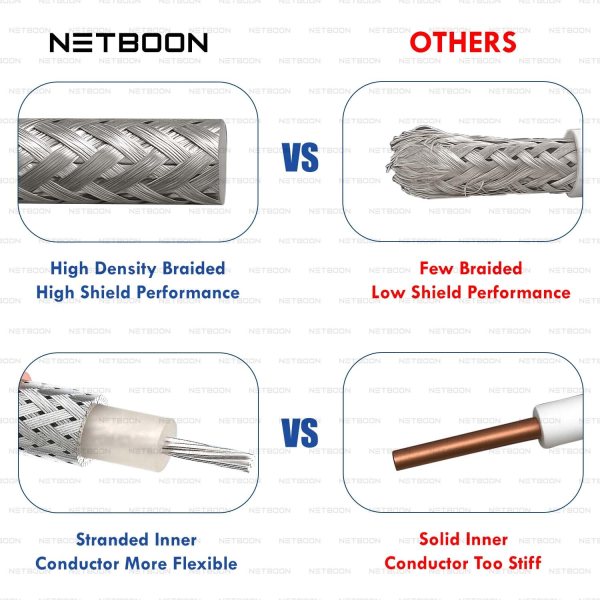

• Shielding: Dual Shield (Silver-plated braid + foil)

• Temperature Range: –55°C to +200°C

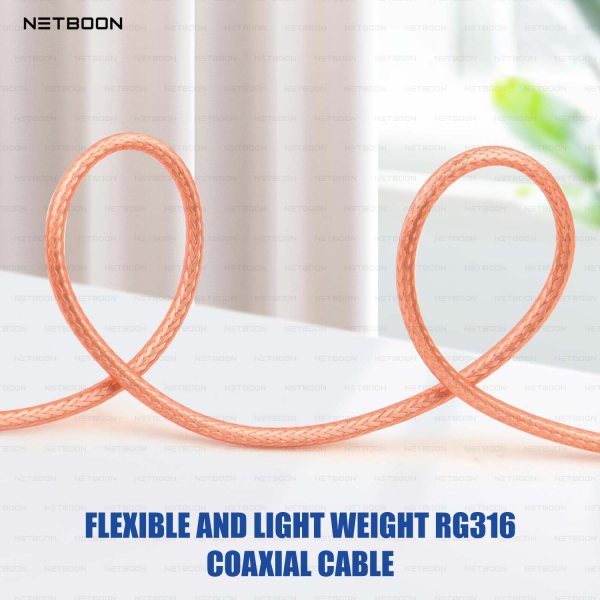

• Flexibility: High-flex coax ideal for tight installs & frequent movement

• Signal Loss: Low attenuation design for stable RF performance

• Use Case: RF analyzers, telecom racks, IoT cabinets, antennas, outdoor RF panels, test instruments

---

✅ Compatibility:

Compatible with a wide range of RF systems, including:

• Oscilloscopes & signal analyzers

• RF testing & calibration equipment

• Telecom nodes & IoT gateways

• N-Type antennas & RF modules

• Panel-mount outdoor enclosures

• Lab measurement instruments

• Wireless communication panels & cabinet units

---

✅ Warranty Information:

6 Months Warranty – Quality Assured by NETBOON
Every cable assembly is individually tested for continuity, impedance accuracy, shielding quality, and connector integrity. Covered by a 6-month replacement warranty for complete user confidence.

---

✅ Bulk & OEM Inquiry:

Need custom lengths or bulk orders?
📞 Call/WhatsApp: +91-6266758816 / +91-9303369506
📧 Email: netboon15@gmail.com

NETBOON offers OEM manufacturing, custom RF coax assemblies, and bulk supply for telecom, IoT, defense, and industrial RF applications.
