RG316 Coaxial Cable Assembly | BNC Male to N Male Right Angle Connector | High-Frequency RF Cable

The NETBOON RG316 Coaxial Cable Assembly with BNC Male to N Male Right Angle Connector is a professional-grade RF cable designed for precision connectivity across laboratory instrumentation, telecom equipment, wireless modules, antennas, and industrial RF panels. Crafted with a PTFE dielectric, silver-plated copper conductor, and dual-shield protection, this RG316 cable offers excellent flexibility, low signal loss, and enhanced EMI resistance.
The BNC Male quick-connect interface ensures fast attachment to oscilloscopes, analyzers, and RF test devices, while the N Male Right Angle connector provides convenient routing in tight or space-restricted installations, such as cabinets, enclosures, and antenna mounts. Engineered for consistent high-frequency performance and long-term durability, this assembly ensures stable, reliable RF transmission. Frequency range up to 6 GHz.

---

✅ Technical & Mechanical Specifications:

• Cable Type: RG316 High-Frequency Coaxial Cable

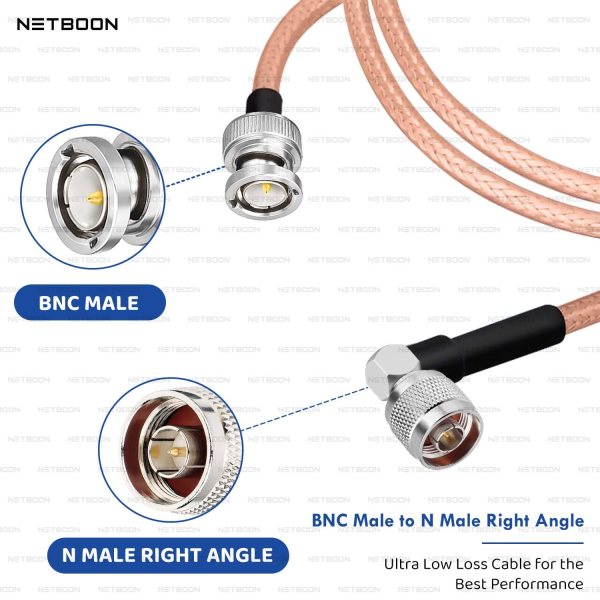

• Connector-A: BNC Male (Quick-connect, nickel-plated)

• Connector-B: N Male Right Angle (Nickel-plated, precision machined)

• Impedance: 50 Ohms

• Supported Frequency: Suitable for RF systems up to 6 GHz

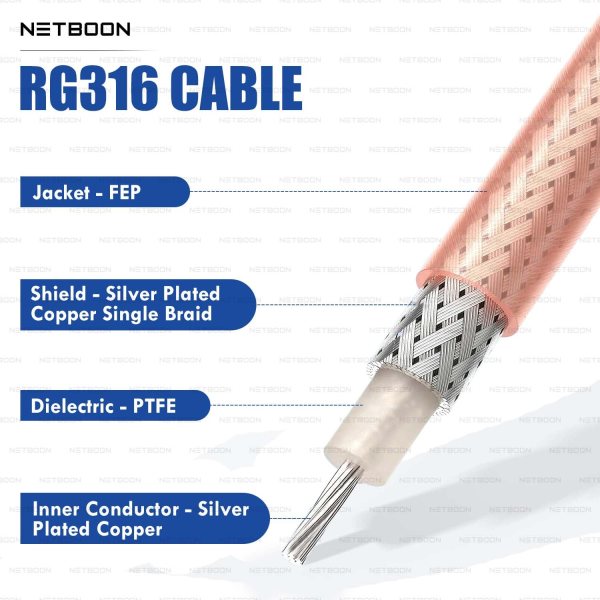

• Dielectric Material: PTFE (High stability & heat resistance)

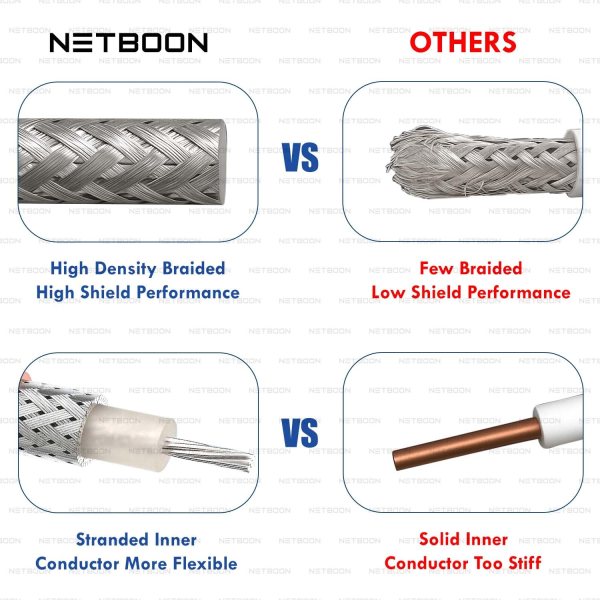

• Shielding: Dual Shield (Silver-plated braid + foil)

• Operating Temperature: –55°C to +200°C

• Attenuation: Low loss for stable, accurate signal transmission

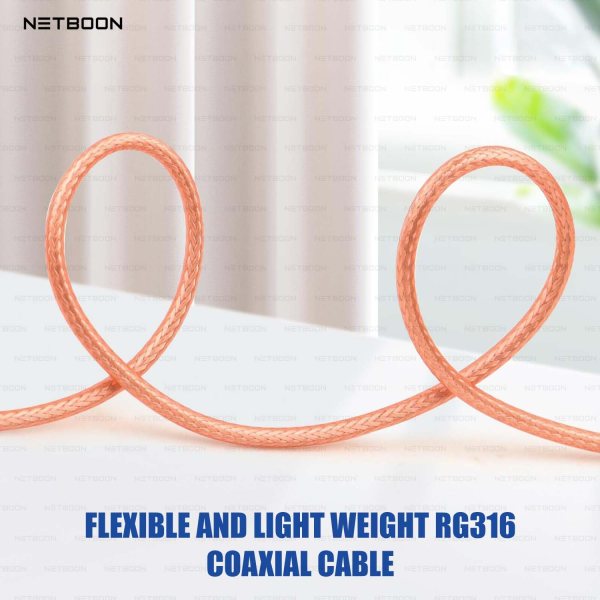

• Durability: High-flex construction suitable for repeated movement

• Ideal For: RF test benches, lab instruments, Wi-Fi antennas, telecom nodes, IoT modules, industrial RF panels

---

✅ Compatibility:

Perfect for use with:

• Oscilloscopes & RF analyzers

• Signal generators & test equipment

• N-type antenna systems

• IoT gateways & telecom installations

• Industrial RF control panels

• Wireless communication repeaters

• Laboratory measurement setups

---

✅ Warranty Information:

6 Months Warranty – Quality Assured by NETBOON
Each cable assembly is thoroughly tested for continuity, impedance precision, shielding strength, and connector durability. Protected by a 6-month replacement warranty for complete user assurance.

---

✅ Bulk & OEM Inquiry:

Need custom lengths or bulk orders?
📞 Call/WhatsApp: +91-6266758816 / +91-9303369506
📧 Email: netboon15@gmail.com

NETBOON offers OEM manufacturing, custom RF cable assemblies, and bulk supply for telecom, IoT, defense, and industrial RF applications.
