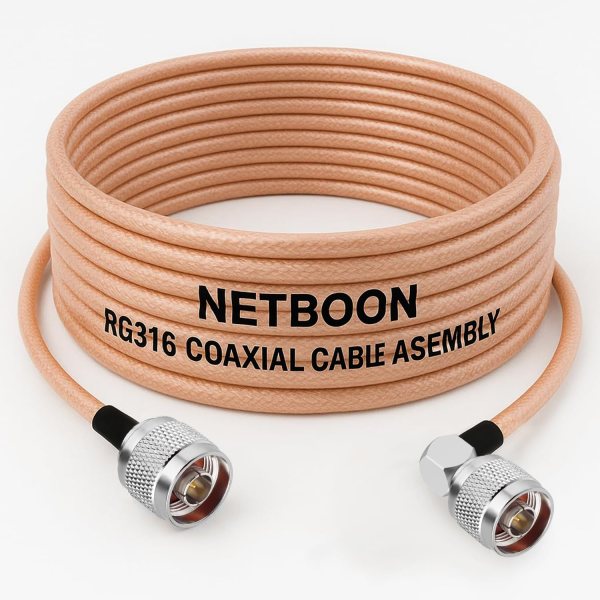

RG316 Coaxial Cable Assembly N Male to N Male Right Angle Connector | High-Frequency RF Patch Cable

The NETBOON RG316 Coaxial Cable Assembly with N Male to N Male Right Angle Connector is engineered for superior RF performance, reliability, and flexibility across telecom, RF testing, antenna systems, and industrial wireless applications. Built using premium RG316 coax with PTFE dielectric and silver-plated conductors, this cable maintains exceptional signal integrity with minimal attenuation.
The right-angle N-Type connector design ensures efficient cable routing in compact or space-restricted RF enclosures, panels, and equipment racks. Its dual-shield construction enhances EMI resistance, delivering stable performance for high-frequency transmission. Designed for professional, industrial, and laboratory environments, this assembly provides durable, corrosion-resistant connectivity suitable for antennas, RF modules, signal analyzers, and communication networks. Frequency range up to 6 GHz.

---

✅ Technical & Mechanical Specifications:

• Cable Type: RG316 High-Frequency Coaxial Cable

• Connector-A: N Male (Straight, Nickel-Plated)

• Connector-B: N Male Right Angle (Nickel-Plated)

• Impedance: 50Ω

• Operating Frequency: Supports RF systems up to 6 GHz

• Dielectric Material: PTFE (High-temperature & stable electrical performance)

• Shielding: Dual Shield (Silver-plated braid + foil)

• Temperature Range: –55°C to +200°C

• Cable Flexibility: High-flex design for frequent bending & compact routing

• Insertion Loss: Low, optimized for consistent high-frequency transmission

• Use Case: Antenna extension, RF analyzers, communication towers, IoT devices, industrial RF panels, labs & testing setups

---

✅ Compatibility:

Ideal for a wide range of RF applications, including:

• N-Type antennas & RF routers

• Test & measurement equipment

• RF analyzers and signal generators

• IoT gateways and telecom units

• Industrial cabinet and panel installations

• Outdoor/indoor RF communication systems

• Wireless modules & repeater setups

---

✅ Warranty Information:

6 Months Warranty – Quality Assured by NETBOON
Each cable assembly is thoroughly tested for continuity, impedance precision, shielding efficiency, and mechanical strength. Backed by a 6-month replacement warranty for complete reliability and user confidence.

---

✅ Bulk & OEM Inquiry:

Need custom lengths or bulk orders?
📞 Call/WhatsApp: +91-6266758816 / +91-9303369506
📧 Email: netboon15@gmail.com

NETBOON offers OEM manufacturing, custom RF assemblies, and bulk supply for telecom, IoT, defense, and industrial RF requirements.
