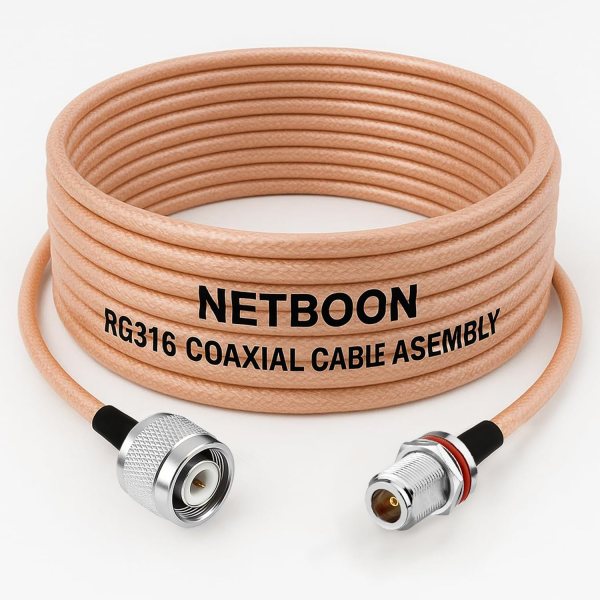

RG316 Coaxial Cable Assembly | TNC Male to N Female Bulkhead Connector | High-Frequency RF Cable



The NETBOON RG316 Coaxial Cable Assembly with TNC Male to N Female Bulkhead Connector is engineered for high-performance RF communication, lab testing, wireless networking, telecom modules, and industrial IoT systems. Crafted using a silver-plated conductor, PTFE dielectric, and dual-shield construction, this RG316 cable ensures low attenuation, excellent flexibility, and superior EMI protection.

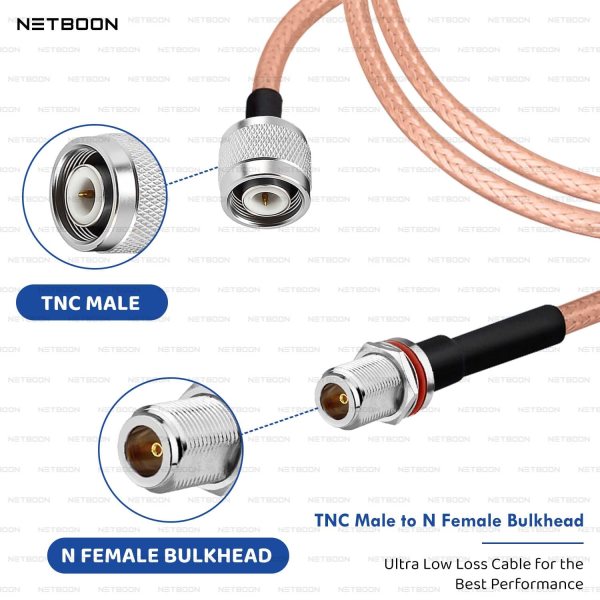

The threaded TNC Male connector provides vibration-resistant connectivity for field and industrial environments, while the N Female Bulkhead connector offers secure panel mounting for enclosures, outdoor cabinets, and integrated RF devices. Built for reliability and long-term use, this assembly supports stable RF signal transmission even in demanding applications. Frequency range up to 6 GHz.

---

✅ Technical & Mechanical Specifications:

• Cable Type: RG316 High-Frequency Coaxial Cable

• Connector-A: TNC Male (Threaded, nickel-plated)

• Connector-B: N Female Bulkhead (Panel mount, nickel-plated)

• Impedance: 50 Ohms

• Operating Frequency: Suitable for RF systems up to 6 GHz

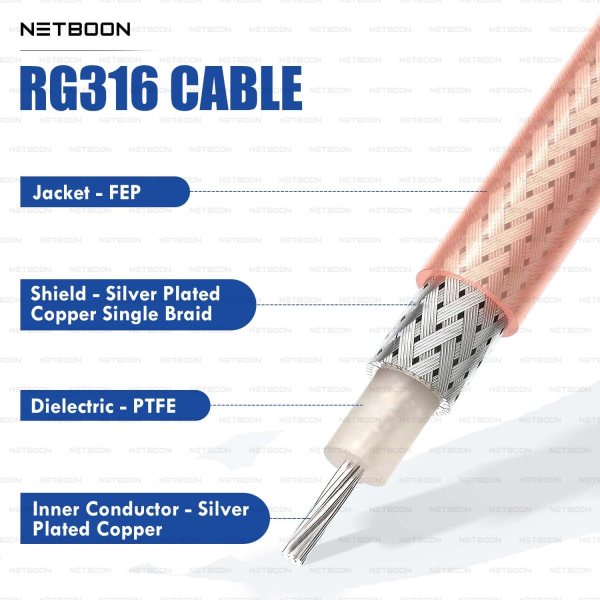

• Dielectric Material: PTFE for premium electrical & thermal stability

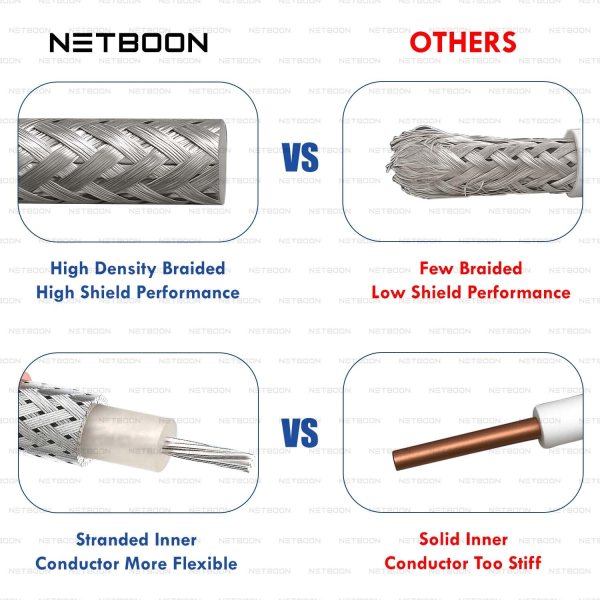

• Shielding: Dual Shield (Silver-plated braid + foil)

• Temperature Range: –55°C to +200°C

• Loss Performance: Low attenuation for cleaner, stable high-frequency transmission

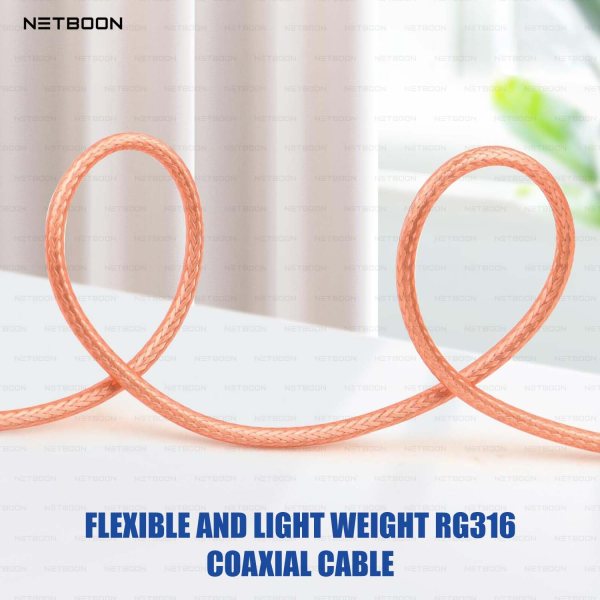

• Flexibility: Ideal for compact routing & frequent bending

• Applications: Telecom RF units, IoT gateways, antenna systems, RF analyzers, industrial control panels

---

✅ Compatibility:

Compatible with a wide range of RF systems, including:

• RF test instruments & analyzers

• N-type antennas & wireless modules

• Telecom & IoT enclosures

• Industrial RF systems & monitoring panels

• Outdoor cabinets & repeater units

• RF communication setups requiring secure panel-mount integration

---

✅ Warranty Information:

6 Months Warranty – Quality Assured by NETBOON
Each assembly is individually tested for continuity, impedance precision, shielding quality, and mechanical durability. Backed by a 6-month replacement warranty for complete reliability and peace of mind.

---

✅ Bulk & OEM Inquiry:

Need custom lengths or bulk orders?
📞 Call/WhatsApp: +91-6266758816 / +91-9303369506
📧 Email: netboon15@gmail.com

NETBOON offers OEM manufacturing, custom RF assemblies, and bulk supply for telecom, IoT, defense, and industrial RF networks.
